TAO_EC_Scheduling_Strategy Class Reference

Define the interface for the scheduling strategy. More...

#include <EC_Scheduling_Strategy.h>

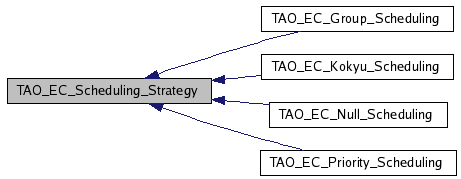

Inheritance diagram for TAO_EC_Scheduling_Strategy:

Inheritance graph
[legend]

List of all members.

Public Member Functions

virtual ~TAO_EC_Scheduling_Strategy (void)
 Destructor.
virtual void add_proxy_supplier_dependencies (TAO_EC_ProxyPushSupplier *supplier, TAO_EC_ProxyPushConsumer *consumer)=0
 Add all the dependencies between supplier and consumer.
virtual void schedule_event (const RtecEventComm::EventSet &event, TAO_EC_ProxyPushConsumer *consumer, TAO_EC_Supplier_Filter *filter)=0


Detailed Description

Define the interface for the scheduling strategy.

The scheduling strategy controls the actions that the event channel must take to update the dependency information in the scheduler and to query the scheduler for the priority of each event pushed by a supplier. The base


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Scheduling_Strategy::~TAO_EC_Scheduling_Strategy ( void   )  [virtual]

Destructor.


Member Function Documentation

virtual void TAO_EC_Scheduling_Strategy::add_proxy_supplier_dependencies ( TAO_EC_ProxyPushSupplier supplier,
TAO_EC_ProxyPushConsumer consumer
) [pure virtual]

Add all the dependencies between supplier and consumer.

Implemented in TAO_EC_Group_Scheduling, TAO_EC_Kokyu_Scheduling, TAO_EC_Null_Scheduling, and TAO_EC_Priority_Scheduling.

virtual void TAO_EC_Scheduling_Strategy::schedule_event ( const RtecEventComm::EventSet event,
TAO_EC_ProxyPushConsumer consumer,
TAO_EC_Supplier_Filter filter
) [pure virtual]

Schedule an event set and deliver them to the filter in the desired order and grouping.

Implemented in TAO_EC_Group_Scheduling, TAO_EC_Kokyu_Scheduling, TAO_EC_Null_Scheduling, and TAO_EC_Priority_Scheduling.


The documentation for this class was generated from the following files:
