TAO_EC_Gateway_IIOP_Factory Class Reference

Factory for the EC_Gateway_IIOP settings. More...

#include <EC_Gateway_IIOP_Factory.h>

Inheritance diagram for TAO_EC_Gateway_IIOP_Factory:

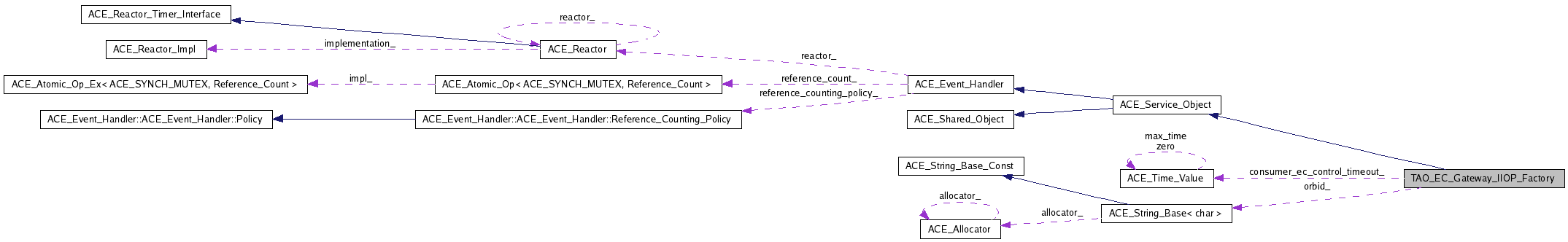

Collaboration diagram for TAO_EC_Gateway_IIOP_Factory:

List of all members.

Public Member Functions

TAO_EC_Gateway_IIOP_Factory (void)

virtual ~TAO_EC_Gateway_IIOP_Factory (void)

TAO_ECG_ConsumerEC_Control * create_consumerec_control (TAO_EC_Gateway_IIOP *gateway)

Create the consumer event channel control.

void destroy_consumerec_control (TAO_ECG_ConsumerEC_Control *x)

Destroy consumer event channel control.

int use_ttl (void) const

Accessors to use_ttl flag.

int use_consumer_proxy_map (void) const

Accessors to use_consumer_proxy_map flag.

virtual int init (int argc, ACE_TCHAR *argv[])

The Service_Object entry points.

virtual int fini (void)

The Service_Object entry points.

Static Public Member Functions

static int init_svcs (void)

Protected Attributes

ACE_CString orbid_

Use this ORB to locate global resources.

int consumer_ec_control_

The control policy for the consumer event channel.

int consumer_ec_control_period_

The consumer event channel control periods in usecs.

ACE_Time_Value consumer_ec_control_timeout_

The control timeout in usecs for the consumer event channel.

int use_ttl_

int use_consumer_proxy_map_

Private Member Functions

void unsupported_option_value (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)

Detailed Description

Factory for the EC_Gateway_IIOP settings.

Default configuration values can be found in ECG_Defaults.h

Constructor & Destructor Documentation

TAO_EC_Gateway_IIOP_Factory::TAO_EC_Gateway_IIOP_Factory ( void )

TAO_EC_Gateway_IIOP_Factory::~TAO_EC_Gateway_IIOP_Factory ( void ) [virtual]

Member Function Documentation

TAO_ECG_ConsumerEC_Control * TAO_EC_Gateway_IIOP_Factory::create_consumerec_control ( TAO_EC_Gateway_IIOP * gateway )

Create the consumer event channel control.

void TAO_EC_Gateway_IIOP_Factory::destroy_consumerec_control ( TAO_ECG_ConsumerEC_Control * x )

Destroy consumer event channel control.

int TAO_EC_Gateway_IIOP_Factory::fini ( void ) [virtual]

The Service_Object entry points.

Reimplemented from ACE_Shared_Object.

int TAO_EC_Gateway_IIOP_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			`[virtual]`

The Service_Object entry points.

Reimplemented from ACE_Shared_Object.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL int TAO_EC_Gateway_IIOP_Factory::init_svcs ( void ) [static]

Helper function to register the Gateway into the service configurator.

void TAO_EC_Gateway_IIOP_Factory::unsupported_option_value	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)			`[private]`

Helper for agrument parsing. Prints out an error message about unsupported option value.

ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map ( void ) const

Accessors to use_consumer_proxy_map flag.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_ttl ( void ) const

Accessors to use_ttl flag.

Member Data Documentation

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_ [protected]

The control policy for the consumer event channel.

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_period_ [protected]

The consumer event channel control periods in usecs.

ACE_Time_Value TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_timeout_ [protected]

The control timeout in usecs for the consumer event channel.

ACE_CString TAO_EC_Gateway_IIOP_Factory::orbid_ [protected]

Use this ORB to locate global resources.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map_ [protected]

The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer for all source ids.

int TAO_EC_Gateway_IIOP_Factory::use_ttl_ [protected]

If 1, we use the TTL flags, if 0, we just ignore TTL.

Note:: When this flag is set to 0, make sure that no recursive structures exists in the gateway setup for the same source/type combination, else one event will flow continuosly through all gateways.

The documentation for this class was generated from the following files:
