TAO_EC_Dispatching Class Reference

Abstract base class for the dispatching strategies. More...

#include <EC_Dispatching.h>

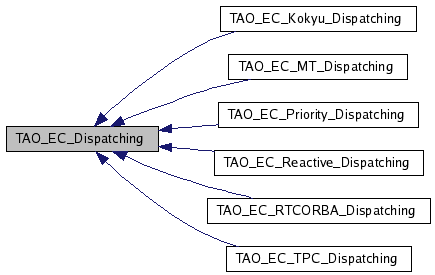

Inheritance diagram for TAO_EC_Dispatching:

Inheritance graph
[legend]

List of all members.

Public Member Functions

virtual ~TAO_EC_Dispatching (void)
 Destructor...
virtual void activate (void)=0
virtual void shutdown (void)=0
virtual void push (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)=0
virtual void push_nocopy (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)=0


Detailed Description

Abstract base class for the dispatching strategies.

The dispatching strategies. The EC may be configured with different dispatching strategies, for instance, it can use a pool of threads to dispatch the events, or a set of queues with threads at different priorities for each queue or can simply push the event to the consumer in FIFO order.


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Dispatching::~TAO_EC_Dispatching ( void   )  [virtual]

Destructor...


Member Function Documentation

virtual void TAO_EC_Dispatching::activate ( void   )  [pure virtual]

Initialize all the data structures, activate any internal threads, etc.

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

virtual void TAO_EC_Dispatching::push ( TAO_EC_ProxyPushSupplier proxy,
RtecEventComm::PushConsumer_ptr  consumer,
const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [pure virtual]

The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things).

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

virtual void TAO_EC_Dispatching::push_nocopy ( TAO_EC_ProxyPushSupplier proxy,
RtecEventComm::PushConsumer_ptr  consumer,
RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [pure virtual]

virtual void TAO_EC_Dispatching::shutdown ( void   )  [pure virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.


The documentation for this class was generated from the following files:
