TAO_Tagged_Profile Class Reference

This class is used to manipulate and access the target address field of a GIOP 1.2 request. More...

#include <Tagged_Profile.h>

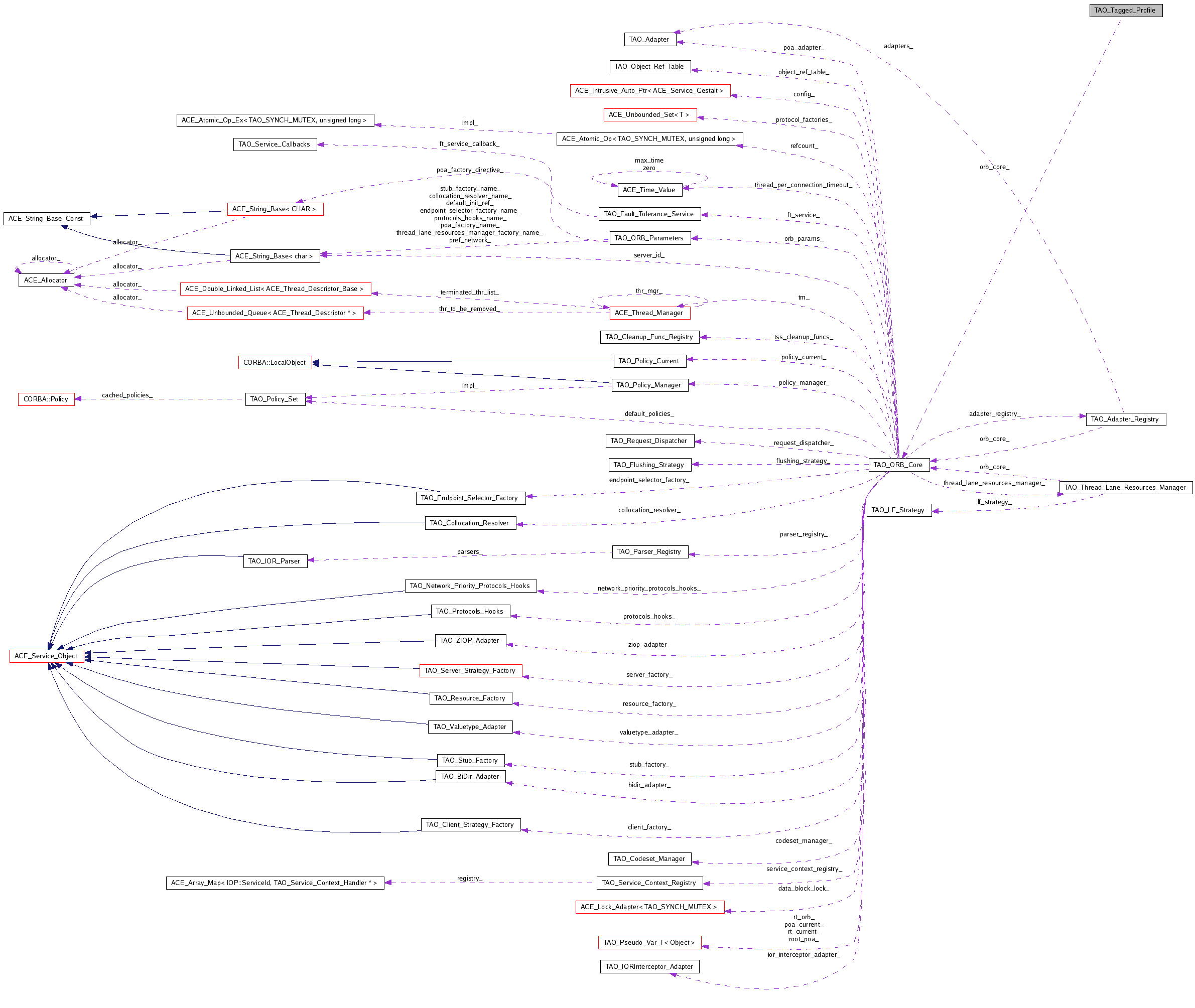

Collaboration diagram for TAO_Tagged_Profile:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_Tagged_Profile (TAO_ORB_Core *orb_core)
 Ctor.
CORBA::Boolean unmarshall_target_address (TAO_InputCDR &cdr)
 Unmarshal the GIOP 1.2 target address field.
CORBA::Boolean unmarshall_object_key (TAO_InputCDR &cdr)
 Unmarshals the received object key for GIOP 1.0/1.1.
TAO::ObjectKey & object_key (void)
 Return the object key.
void object_key (TAO::ObjectKey &object_key)
 Save the object key.
const TAO::ObjectKey & object_key (void) const
 Return a const object key.
const IOP::TaggedProfile & tagged_profile (void) const
 Get the tagged_profile.
CORBA::ULong profile_index (void) const
const char * type_id (void) const
CORBA::Short discriminator (void) const

Private Member Functions

CORBA::Boolean extract_object_key (IOP::TaggedProfile &profile)
CORBA::Boolean unmarshall_object_key_i (TAO_InputCDR &cdr)
 Unmarshals the received object key.
CORBA::Boolean unmarshall_iop_profile_i (TAO_InputCDR &cdr)
 Unmarshall the IOP::TaggedProfile.
CORBA::Boolean unmarshall_ref_addr_i (TAO_InputCDR &cdr)
 Unmarshalls the GIOP::IORAddressingInfo.

Private Attributes

TAO_ORB_Coreorb_core_
 Our ORB Core.
CORBA::Short discriminator_
 Keep track of which kind of target profile that was extracted.
CORBA::Boolean object_key_extracted_
 Flag to denote whether the object key has been extracted yet.
TAO::ObjectKey object_key_
 The object key.
IOP::TaggedProfile profile_
 The Tagged profile. This class would have the Tagged Profile.
CORBA::ULong profile_index_
const char * type_id_

Friends

class TAO::CSD::FW_Server_Request_Wrapper


Detailed Description

This class is used to manipulate and access the target address field of a GIOP 1.2 request.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Tagged_Profile::TAO_Tagged_Profile ( TAO_ORB_Core orb_core  )

Ctor.


Member Function Documentation

CORBA::Boolean TAO_Tagged_Profile::unmarshall_target_address ( TAO_InputCDR cdr  )

Unmarshal the GIOP 1.2 target address field.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_object_key ( TAO_InputCDR cdr  )

Unmarshals the received object key for GIOP 1.0/1.1.

ACE_INLINE TAO::ObjectKey & TAO_Tagged_Profile::object_key ( void   )

Return the object key.

ACE_INLINE void TAO_Tagged_Profile::object_key ( TAO::ObjectKey &  object_key  )

Save the object key.

ACE_INLINE const TAO::ObjectKey & TAO_Tagged_Profile::object_key ( void   )  const

Return a const object key.

ACE_INLINE const IOP::TaggedProfile & TAO_Tagged_Profile::tagged_profile ( void   )  const

Get the tagged_profile.

ACE_INLINE CORBA::ULong TAO_Tagged_Profile::profile_index ( void   )  const

Get the profile index, that needs to be used in the sequnce of TaggedProfiles contained IOP::IOR that is received from the client.

ACE_INLINE const char * TAO_Tagged_Profile::type_id ( void   )  const

Accessor to the type_id contained in the IOP::IOR received from the client.

ACE_INLINE CORBA::Short TAO_Tagged_Profile::discriminator ( void   )  const

TAO_BEGIN_VERSIONED_NAMESPACE_DECL CORBA::Boolean TAO_Tagged_Profile::extract_object_key ( IOP::TaggedProfile &  profile  )  [private]

Extract the object key from the TaggedProfile and store it in <object_key_>

CORBA::Boolean TAO_Tagged_Profile::unmarshall_object_key_i ( TAO_InputCDR cdr  )  [private]

Unmarshals the received object key.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_iop_profile_i ( TAO_InputCDR cdr  )  [private]

Unmarshall the IOP::TaggedProfile.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_ref_addr_i ( TAO_InputCDR cdr  )  [private]

Unmarshalls the GIOP::IORAddressingInfo.


Friends And Related Function Documentation

friend class TAO::CSD::FW_Server_Request_Wrapper [friend]

Declare FW_Server_Request_Wrapper a friend This friendship makes the FW_Server_Request_Wrapper be able to clone the TAO_Tagged_Profile data member in TAO_ServerRequest.


Member Data Documentation

Our ORB Core.

Keep track of which kind of target profile that was extracted.

Flag to denote whether the object key has been extracted yet.

TAO::ObjectKey TAO_Tagged_Profile::object_key_ [private]

The object key.

IOP::TaggedProfile TAO_Tagged_Profile::profile_ [private]

The Tagged profile. This class would have the Tagged Profile.

The profile index incase we receive a GIOP::IORAddressingInfo information

const char* TAO_Tagged_Profile::type_id_ [private]

The type_id in the IOP::IOR in case we receive the GIOP::IORAddressingInfo information.


The documentation for this class was generated from the following files:
