ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 > Class Template Reference

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER. More...

#include <Connector.h>

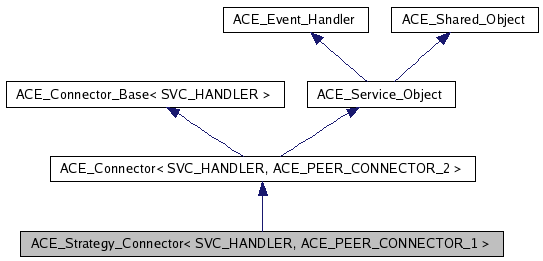

Inheritance diagram for ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >:

Inheritance graph
[legend]

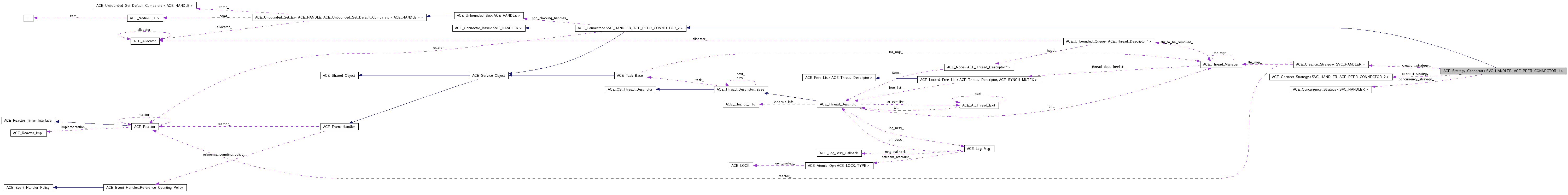

Collaboration diagram for ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_Creation_Strategy
< SVC_HANDLER >
creation_strategy_type
typedef ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
connect_strategy_type
typedef
ACE_Concurrency_Strategy
< SVC_HANDLER >
concurrency_strategy_type
typedef ACE_Connector
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
base_type
typedef ACE_Creation_Strategy
< SVC_HANDLER >
CREATION_STRATEGY
typedef ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
CONNECT_STRATEGY
typedef
ACE_Concurrency_Strategy
< SVC_HANDLER >
CONCURRENCY_STRATEGY
typedef ACE_Connector
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
SUPER

Public Member Functions

 ACE_Strategy_Connector (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)
virtual int open (ACE_Reactor *r, int flags)
virtual int open (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)
virtual ~ACE_Strategy_Connector (void)
 Shutdown a connector and release resources.
virtual int close (void)
 Close down the Connector.
virtual ACE_Creation_Strategy
< SVC_HANDLER > *
creation_strategy (void) const
virtual ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > *
connect_strategy (void) const
virtual
ACE_Concurrency_Strategy
< SVC_HANDLER > *
concurrency_strategy (void) const

Protected Member Functions

virtual int make_svc_handler (SVC_HANDLER *&sh)
virtual int connect_svc_handler (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)
virtual int connect_svc_handler (SVC_HANDLER *&sh, SVC_HANDLER *&sh_copy, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)
virtual int activate_svc_handler (SVC_HANDLER *svc_handler)

Protected Attributes

CREATION_STRATEGYcreation_strategy_
 Creation strategy for an Connector.
bool delete_creation_strategy_
CONNECT_STRATEGYconnect_strategy_
 Connect strategy for a Connector.
bool delete_connect_strategy_
CONCURRENCY_STRATEGYconcurrency_strategy_
 Concurrency strategy for an <Connector>.
bool delete_concurrency_strategy_


Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1>
class ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER.

Implements a flexible and extensible set of strategies for actively establishing connections with clients. There are three main strategies: (1) creating a SVC_HANDLER, (2) actively initiating a new connection from the client, and (3) activating the SVC_HANDLER with a particular concurrency mechanism after the connection is established.


Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy_type

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy_type

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy_type

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::base_type

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CREATION_STRATEGY

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CONNECT_STRATEGY

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CONCURRENCY_STRATEGY

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::SUPER


Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::ACE_Strategy_Connector ( ACE_Reactor r = ACE_Reactor::instance (),
ACE_Creation_Strategy< SVC_HANDLER > *  cre_s = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *  conn_s = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0,
int  flags = 0
) [inline]

Initialize a connector. flags indicates how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::~ACE_Strategy_Connector ( void   )  [inline, virtual]

Shutdown a connector and release resources.


Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::open ( ACE_Reactor r,
int  flags
) [inline, virtual]

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened. Default strategies would be created and used.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::open ( ACE_Reactor r = ACE_Reactor::instance (),
ACE_Creation_Strategy< SVC_HANDLER > *  cre_s = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *  conn_s = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0,
int  flags = 0
) [inline, virtual]

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::close ( void   )  [inline, virtual]

Close down the Connector.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Creation_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy ( void   )  const [inline, virtual]

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy ( void   )  const [inline, virtual]

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Concurrency_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy ( void   )  const [inline, virtual]

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::make_svc_handler ( SVC_HANDLER *&  sh  )  [inline, protected, virtual]

Bridge method for creating a SVC_HANDLER. The strategy for creating a SVC_HANDLER are configured into the Connector via it's <creation_strategy_>. The default is to create a new SVC_HANDLER only if sh == 0, else sh is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 if failure, else 0.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_svc_handler ( SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms
) [inline, protected, virtual]

Bridge method for connecting the new connection into the SVC_HANDLER. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_svc_handler ( SVC_HANDLER *&  sh,
SVC_HANDLER *&  sh_copy,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms
) [inline, protected, virtual]

Bridge method for connecting the new connection into the SVC_HANDLER. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>. sh_copy is used to obtain a copy of the sh pointer, but that can be kept in the stack; the motivation is a bit too long to include here, but basically we want to modify sh safely, using the internal locks in the Connect_Strategy, while saving a TSS copy in sh_copy, usually located in the stack.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::activate_svc_handler ( SVC_HANDLER *  svc_handler  )  [inline, protected, virtual]

Bridge method for activating a SVC_HANDLER with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its <open> method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the SVC_HANDLER as an "active object" via multi-threading or multi-processing).

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.


Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CREATION_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy_ [protected]

Creation strategy for an Connector.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_creation_strategy_ [protected]

true if Connector created the creation strategy and thus should delete it, else false.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CONNECT_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy_ [protected]

Connect strategy for a Connector.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_connect_strategy_ [protected]

true if Connector created the connect strategy and thus should delete it, else false.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CONCURRENCY_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy_ [protected]

Concurrency strategy for an <Connector>.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_concurrency_strategy_ [protected]

true if Connector created the concurrency strategy and thus should delete it, else false.


The documentation for this class was generated from the following files:
