ACE_Select_Reactor_Handler_Repository Class Reference

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *. More...

#include <Select_Reactor_Base.h>

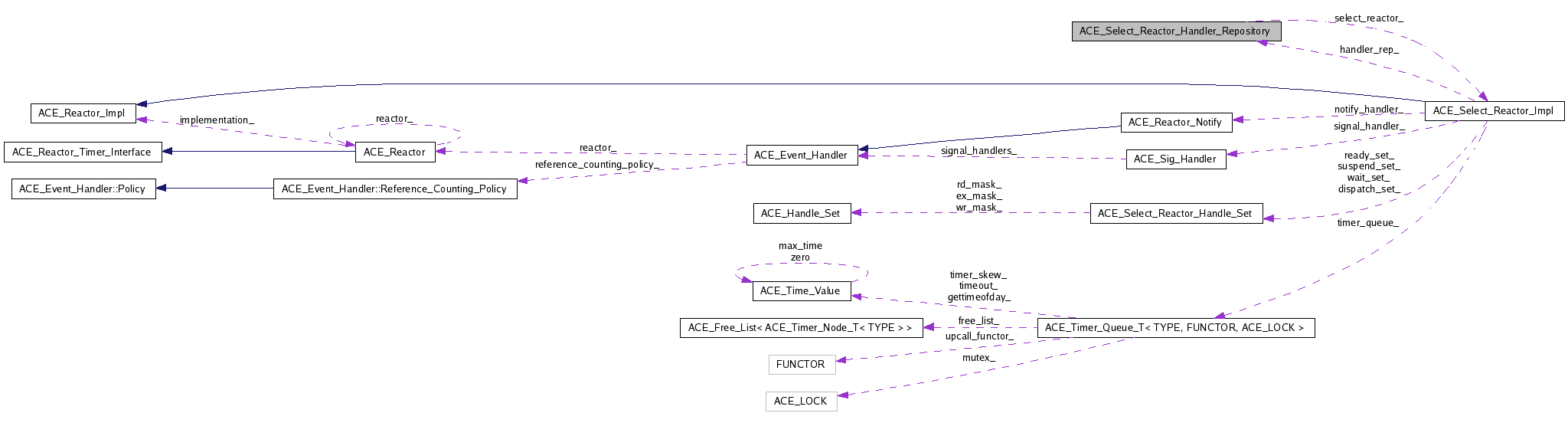

Collaboration diagram for ACE_Select_Reactor_Handler_Repository:

Collaboration graph

List of all members.

Public Types

typedef ACE_HANDLE key_type
typedef ACE_Event_Handlervalue_type
< key_type, value_type,
ACE_Hash< key_type >
, std::equal_to< key_type >
, ACE_Null_Mutex
typedef map_type::size_type max_handlep1_type
typedef map_type::size_type size_type

Public Member Functions

 ACE_Select_Reactor_Handler_Repository (ACE_Select_Reactor_Impl &)
 Default "do-nothing" constructor.
int open (size_type size)
 Initialize a repository of the appropriate size.
int close (void)
 Close down the repository.
ACE_Event_Handlerfind (ACE_HANDLE handle)
int bind (ACE_HANDLE, ACE_Event_Handler *, ACE_Reactor_Mask)
int unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
 Remove the binding of ACE_HANDLE in accordance with the mask.
int unbind_all (void)
 Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.
bool invalid_handle (ACE_HANDLE handle)
bool handle_in_range (ACE_HANDLE handle)
size_type size (void) const
 Returns the current table size.
max_handlep1_type max_handlep1 (void) const
 Maximum ACE_HANDLE value, plus 1.
void dump (void) const
 Dump the state of an object.

Public Attributes

 Declare the dynamic allocation hooks.

Private Member Functions

int unbind (ACE_HANDLE handle, map_type::iterator pos, ACE_Reactor_Mask mask)
map_type::iterator find_eh (ACE_HANDLE handle)

Private Attributes

 Reference to our Select_Reactor.
map_type event_handlers_
 Underlying table of event handlers.


class ACE_Select_Reactor_Handler_Repository_Iterator

Detailed Description

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *.

This class is necessary to shield differences between UNIX and Win32. In UNIX, ACE_HANDLE is an int, whereas in Win32 it's a void *. This class hides all these details from the bulk of the ACE_Select_Reactor code. All of these methods are called with the main <Select_Reactor> token lock held.

Member Typedef Documentation

The NT version implements this via a hash map ACE_Event_Handler*. Since NT implements ACE_HANDLE as a void * we can't directly index into this array. Therefore, we must explicitly map ACE_HANDLE to ACE_Event_Handler.

Constructor & Destructor Documentation

ACE_Select_Reactor_Handler_Repository::ACE_Select_Reactor_Handler_Repository ( ACE_Select_Reactor_Impl select_reactor  )

Default "do-nothing" constructor.

Member Function Documentation

int ACE_Select_Reactor_Handler_Repository::open ( size_type  size  )

Initialize a repository of the appropriate size.

On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons.

int ACE_Select_Reactor_Handler_Repository::close ( void   )

Close down the repository.

ACE_INLINE ACE_Event_Handler * ACE_Select_Reactor_Handler_Repository::find ( ACE_HANDLE  handle  )

Return the ACE_Event_Handler* associated with ACE_HANDLE.

int ACE_Select_Reactor_Handler_Repository::bind ( ACE_HANDLE  handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask

Bind the ACE_Event_Handler * to the ACE_HANDLE with the appropriate ACE_Reactor_Mask settings.

ACE_INLINE int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask

Remove the binding of ACE_HANDLE in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind_all ( void   )

Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.

bool ACE_Select_Reactor_Handler_Repository::invalid_handle ( ACE_HANDLE  handle  )

bool ACE_Select_Reactor_Handler_Repository::handle_in_range ( ACE_HANDLE  handle  )

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Select_Reactor_Handler_Repository::size_type ACE_Select_Reactor_Handler_Repository::size ( void   )  const

Returns the current table size.

ACE_INLINE ACE_Select_Reactor_Handler_Repository::max_handlep1_type ACE_Select_Reactor_Handler_Repository::max_handlep1 ( void   )  const

Maximum ACE_HANDLE value, plus 1.

void ACE_Select_Reactor_Handler_Repository::dump ( void   )  const

Dump the state of an object.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
map_type::iterator  pos,
ACE_Reactor_Mask  mask
) [private]

Remove the binding of handle corresponding to position pos in accordance with the mask.

ACE_Select_Reactor_Handler_Repository::map_type::iterator ACE_Select_Reactor_Handler_Repository::find_eh ( ACE_HANDLE  handle  )  [private]

iterator corresponding ACE_Event_Handler* associated with ACE_HANDLE.

Friends And Related Function Documentation

Member Data Documentation

Declare the dynamic allocation hooks.

Reference to our Select_Reactor.

Underlying table of event handlers.

The documentation for this class was generated from the following files:
