TAO::SSLIOP::Acceptor Class Reference

The SSLIOP-specific bridge class for the concrete acceptor. More...

#include <SSLIOP_Acceptor.h>

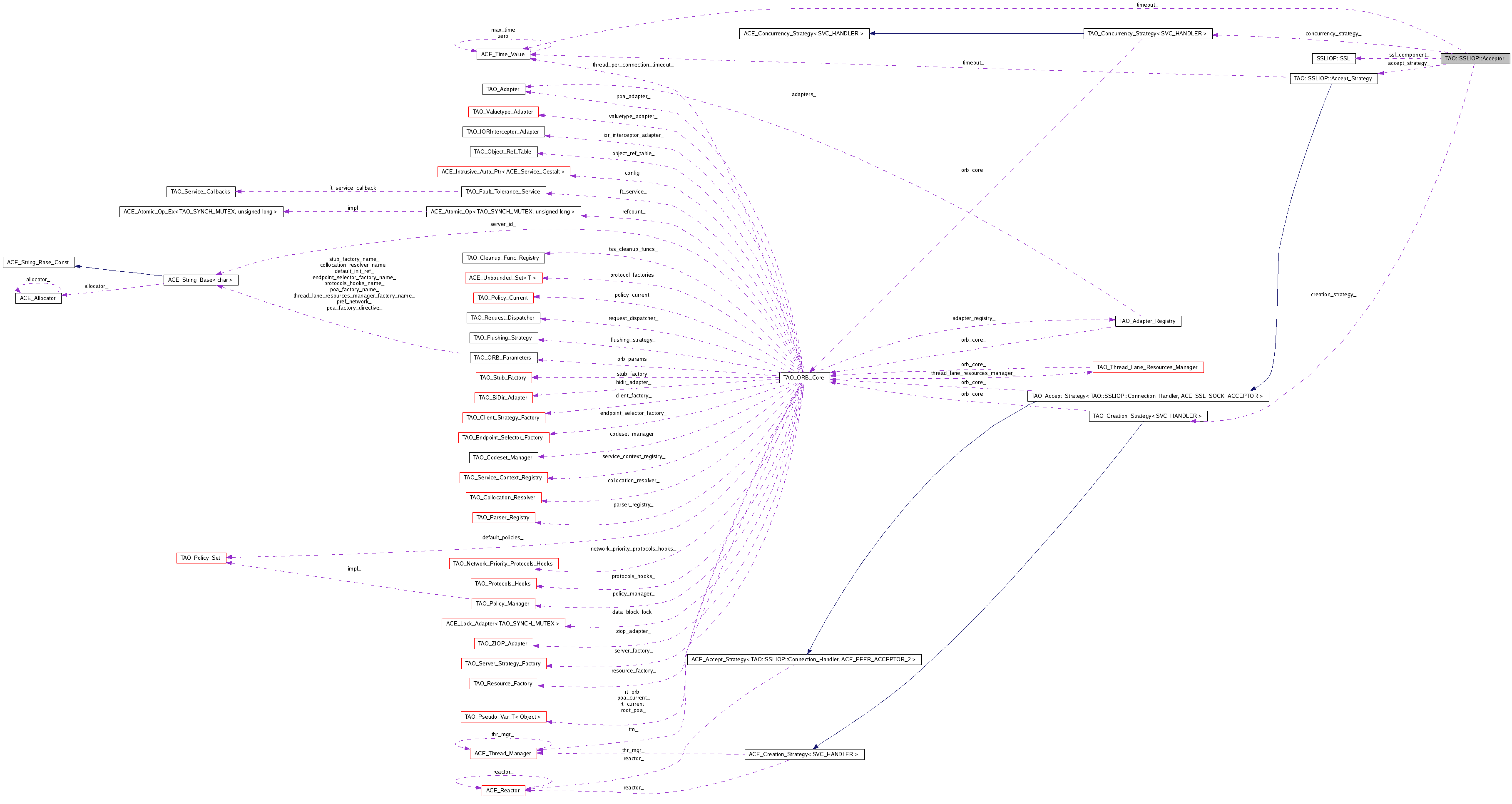

Collaboration diagram for TAO::SSLIOP::Acceptor:

[legend]

List of all members.

Public Types
typedef TAO_Strategy_Acceptor < Connection_Handler, ACE_SSL_SOCK_ACCEPTOR >	BASE_ACCEPTOR
typedef TAO_Creation_Strategy < Connection_Handler >	CREATION_STRATEGY
typedef TAO_Concurrency_Strategy < Connection_Handler >	CONCURRENCY_STRATEGY
typedef Accept_Strategy	ACCEPT_STRATEGY
Public Member Functions
	Acceptor (::Security::QOP qop, const ACE_Time_Value &timeout)
	Constructor.
	~Acceptor (void)
	Destructor.
const ::SSLIOP::SSL &	ssl_component (void) const
The TAO_Acceptor Methods
Check the documentation in tao/Pluggable.h for details.
virtual int	open (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *address, const char *options=0)
virtual int	open_default (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *options=0)
virtual int	close (void)
virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
virtual int	is_collocated (const TAO_Endpoint *endpoint)
Private Member Functions
int	ssliop_open_i (TAO_ORB_Core *orb_core, const ACE_INET_Addr &addr, ACE_Reactor *reactor)
	Implement the common part of the open*() methods.
virtual int	parse_options_i (int &argc, ACE_CString **argv)
	Parse protocol specific options.
int	verify_secure_configuration (TAO_ORB_Core *orb_core, int major, int minor)
int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
Private Attributes
BASE_ACCEPTOR	ssl_acceptor_
	The concrete acceptor, as a pointer to it's base class.
Acceptor Strategies
Strategies used when accepting an incoming connection.
CREATION_STRATEGY *	creation_strategy_
CONCURRENCY_STRATEGY *	concurrency_strategy_
ACCEPT_STRATEGY *	accept_strategy_
::SSLIOP::SSL	ssl_component_
	The CSIv1 SSL component.
CSIIOP::TLS_SEC_TRANS	csiv2_component_
	The SSLIOP CSIv2 tagged component.
const ACE_Time_Value	timeout_
	The accept() timeout.

---

Detailed Description

The SSLIOP-specific bridge class for the concrete acceptor.

---

Member Typedef Documentation

typedef TAO_Strategy_Acceptor<Connection_Handler, ACE_SSL_SOCK_ACCEPTOR> TAO::SSLIOP::Acceptor::BASE_ACCEPTOR

typedef TAO_Creation_Strategy<Connection_Handler> TAO::SSLIOP::Acceptor::CREATION_STRATEGY

typedef TAO_Concurrency_Strategy<Connection_Handler> TAO::SSLIOP::Acceptor::CONCURRENCY_STRATEGY

typedef Accept_Strategy TAO::SSLIOP::Acceptor::ACCEPT_STRATEGY

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::SSLIOP::Acceptor::Acceptor	(	::Security::QOP	qop,
		const ACE_Time_Value &	timeout
	)

Constructor.

TAO::SSLIOP::Acceptor::~Acceptor

(

void

)

Destructor.

---

Member Function Documentation

int TAO::SSLIOP::Acceptor::open	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	address,
		const char *	options = 0
	)			[virtual]

int TAO::SSLIOP::Acceptor::open_default	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	options = 0
	)			[virtual]

int TAO::SSLIOP::Acceptor::close

(

void

)

[virtual]

int TAO::SSLIOP::Acceptor::create_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)			[virtual]

int TAO::SSLIOP::Acceptor::is_collocated

(

const TAO_Endpoint *

endpoint

)

[virtual]

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE const SSLIOP::SSL & TAO::SSLIOP::Acceptor::ssl_component

(

void

)

const

Retrieve the CSIv1 SSLIOP::SSL component associated with the endpoints set up by this acceptor.

int TAO::SSLIOP::Acceptor::ssliop_open_i	(	TAO_ORB_Core *	orb_core,
		const ACE_INET_Addr &	addr,
		ACE_Reactor *	reactor
	)			[private]

Implement the common part of the open*() methods.

int TAO::SSLIOP::Acceptor::parse_options_i	(	int &	argc,
		ACE_CString **	argv
	)			[private, virtual]

Parse protocol specific options.

int TAO::SSLIOP::Acceptor::verify_secure_configuration	(	TAO_ORB_Core *	orb_core,
		int	major,
		int	minor
	)			[private]

Ensure that neither the endpoint configuration nor the ORB configuration violate security measures.

int TAO::SSLIOP::Acceptor::create_new_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)			[private]

Helper method to add a new profile to the mprofile for each endpoint.

int TAO::SSLIOP::Acceptor::create_shared_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)			[private]

Helper method to create a profile that contains all of our endpoints.

---

Member Data Documentation

BASE_ACCEPTOR TAO::SSLIOP::Acceptor::ssl_acceptor_ [private]

The concrete acceptor, as a pointer to it's base class.

CREATION_STRATEGY* TAO::SSLIOP::Acceptor::creation_strategy_ [private]

CONCURRENCY_STRATEGY* TAO::SSLIOP::Acceptor::concurrency_strategy_ [private]

ACCEPT_STRATEGY* TAO::SSLIOP::Acceptor::accept_strategy_ [private]

::SSLIOP::SSL TAO::SSLIOP::Acceptor::ssl_component_ [private]

The CSIv1 SSL component.

This is the SSLIOP endpoint-specific tagged component that is embedded in a given IOR.

CSIIOP::TLS_SEC_TRANS TAO::SSLIOP::Acceptor::csiv2_component_ [private]

The SSLIOP CSIv2 tagged component.

const ACE_Time_Value TAO::SSLIOP::Acceptor::timeout_ [private]

The accept() timeout.

This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.

---

The documentation for this class was generated from the following files:

• SSLIOP_Acceptor.h
• SSLIOP_Acceptor.cpp
• SSLIOP_Acceptor.inl
