TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl > Class Template Reference

Reactive strategy base class. More...

#include <Endpoint_Strategy_T.h>

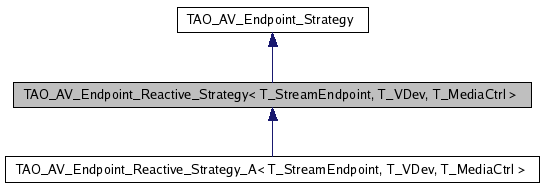

Inheritance diagram for TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >:

[legend]

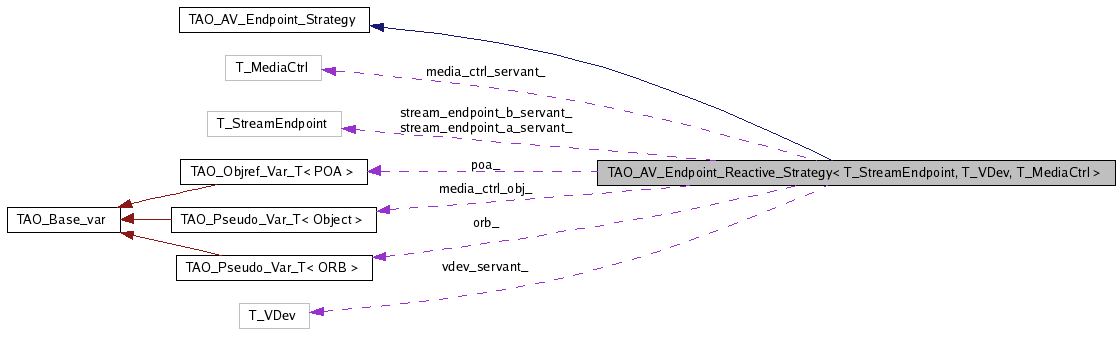

Collaboration diagram for TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >:

[legend]

List of all members.

Protected Member Functions
	TAO_AV_Endpoint_Reactive_Strategy (void)
	Constructor.
virtual	~TAO_AV_Endpoint_Reactive_Strategy (void)
	Destructor.
virtual int	activate (void)
	creates and activates the streamendpoint, vdev, and mediacontrol
virtual int	activate_stream_endpoint (void)=0
	activates the stream_endpoint with the POA
virtual int	activate_vdev (void)
	activates the vdev with the POA
virtual int	activate_mediactrl (void)
	activates the media controller with the POA
virtual int	make_vdev (T_VDev *&vdev)
virtual int	make_stream_endpoint (T_StreamEndpoint *&stream_endpoint)
virtual int	make_mediactrl (T_MediaCtrl *&media_ctrl)
char *	activate_with_poa (PortableServer::Servant servant)
Protected Attributes
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
CORBA::Object_var	media_ctrl_obj_
T_StreamEndpoint *	stream_endpoint_a_servant_
T_StreamEndpoint *	stream_endpoint_b_servant_
T_VDev *	vdev_servant_
T_MediaCtrl *	media_ctrl_servant_

---

Detailed Description

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
class TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >

Reactive strategy base class.

---

Constructor & Destructor Documentation

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::TAO_AV_Endpoint_Reactive_Strategy

(

void

)

[inline, protected]

Constructor.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::~TAO_AV_Endpoint_Reactive_Strategy

(

void

)

[inline, protected, virtual]

Destructor.

---

Member Function Documentation

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate

(

void

)

[inline, protected, virtual]

creates and activates the streamendpoint, vdev, and mediacontrol

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

virtual int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_stream_endpoint

(

void

)

[protected, pure virtual]

activates the stream_endpoint with the POA

Implemented in TAO_AV_Endpoint_Reactive_Strategy_A< T_StreamEndpoint, T_VDev, T_MediaCtrl >, and TAO_AV_Endpoint_Reactive_Strategy_B< T_StreamEndpoint, T_Vdev, T_MediaCtrl >.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_vdev

(

void

)

[inline, protected, virtual]

activates the vdev with the POA

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_mediactrl

(

void

)

[inline, protected, virtual]

activates the media controller with the POA

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_vdev

(

T_VDev *&

vdev

)

[inline, protected, virtual]

Bridge method to create a vdev, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_stream_endpoint

(

T_StreamEndpoint *&

stream_endpoint

)

[inline, protected, virtual]

Bridge method to create a stream_endpoint, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

int TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_mediactrl

(

T_MediaCtrl *&

media_ctrl

)

[inline, protected, virtual]

Bridge method to create a media_ctrl, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

char * TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_with_poa

(

PortableServer::Servant

servant

)

[inline, protected]

---

Member Data Documentation

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

CORBA::ORB_var TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::orb_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

PortableServer::POA_var TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::poa_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

CORBA::Object_var TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_obj_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

T_StreamEndpoint* TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_a_servant_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

T_StreamEndpoint* TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_b_servant_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

T_VDev* TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_servant_ [protected]

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>

T_MediaCtrl* TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_servant_ [protected]

---

The documentation for this class was generated from the following files:

• Endpoint_Strategy_T.h
• Endpoint_Strategy_T.cpp
