TAO_IIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the IIOP protocol. More...

#include <IIOP_Transport.h>

Inheritance diagram for TAO_IIOP_Transport:

[legend]

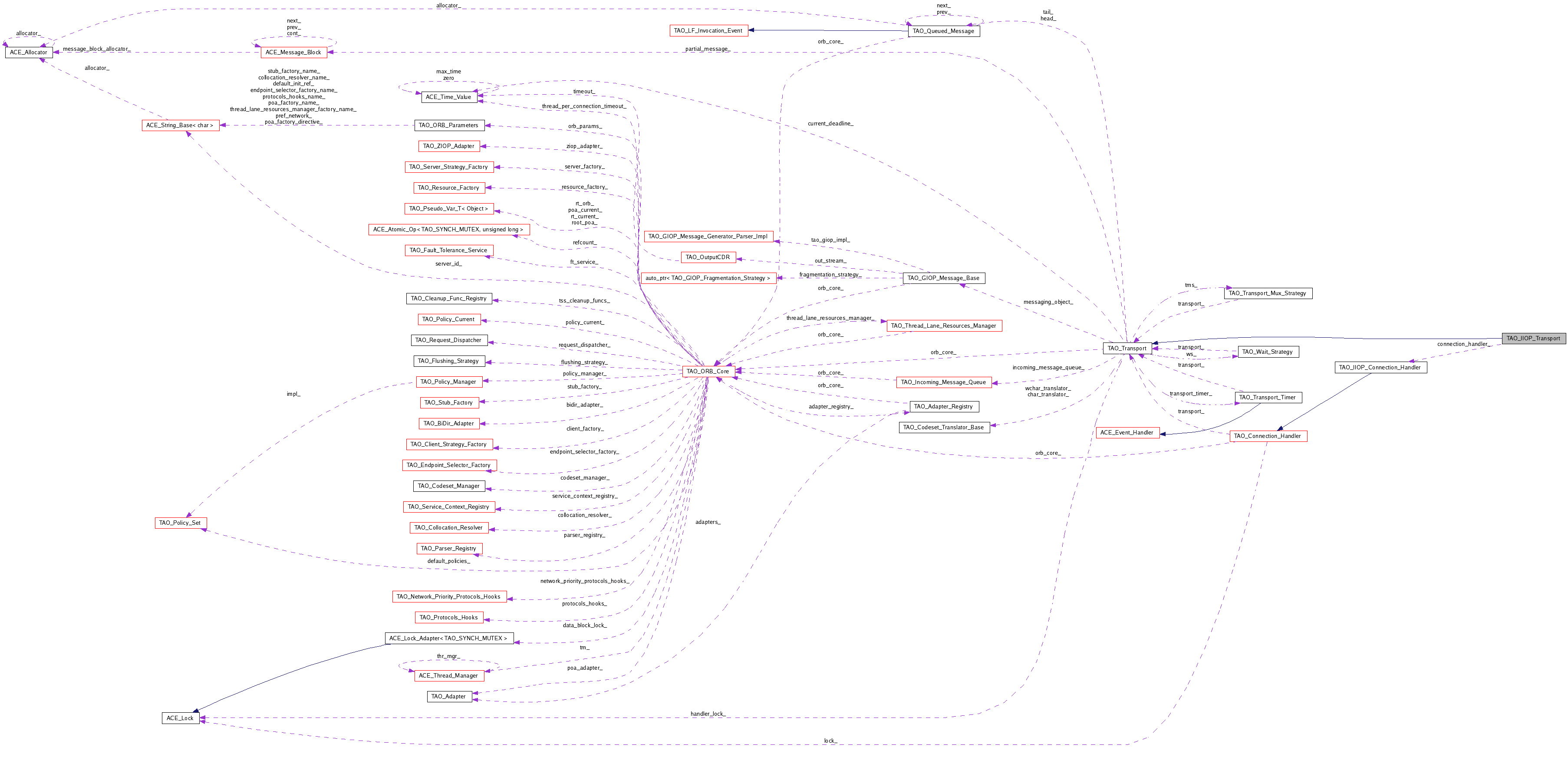

Collaboration diagram for TAO_IIOP_Transport:

[legend]

List of all members.

Overridden Template Methods
Please check the documentation in "tao/Transport.h" for more details.
void	update_protocol_properties (int send_buffer_size, int recv_buffer_size, int no_delay, int enable_network_priority)
	Bridge method to call a similar method on the connection handler.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, TAO_Message_Semantics message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
	Bridge method to call a similar method on the connection handler.
virtual int	generate_request_header (TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
	Bridge method to call a similar method on the connection handler.
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
	Bridge method to call a similar method on the connection handler.
virtual TAO_Connection_Handler *	connection_handler_i (void)
	Bridge method to call a similar method on the connection handler.
virtual ACE_Event_Handler *	event_handler_i (void)
	Bridge method to call a similar method on the connection handler.
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
	Bridge method to call a similar method on the connection handler.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Bridge method to call a similar method on the connection handler.
Public Member Functions
	TAO_IIOP_Transport (TAO_IIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core)
	Constructor.
Protected Member Functions
virtual	~TAO_IIOP_Transport (void)
	Destructor.
Private Member Functions
void	set_bidir_context_info (TAO_Operation_Details &opdetails)
	Set the Bidirectional context info in the service context list.
int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)
Private Attributes
TAO_IIOP_Connection_Handler *	connection_handler_

---

Detailed Description

Specialization of the base TAO_Transport class to handle the IIOP protocol.

Specialization of the base TAO_Transport class to handle the IIOP protocol.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_IIOP_Transport::TAO_IIOP_Transport	(	TAO_IIOP_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core
	)

Constructor.

TAO_IIOP_Transport::~TAO_IIOP_Transport

(

void

)

[protected, virtual]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

---

Member Function Documentation

ACE_Event_Handler * TAO_IIOP_Transport::event_handler_i

(

void

)

[protected, virtual]

Bridge method to call a similar method on the connection handler.

Implements TAO_Transport.

ssize_t TAO_IIOP_Transport::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	timeout = 0
	)			[protected, virtual]

Bridge method to call a similar method on the connection handler.

Implements TAO_Transport.

ssize_t TAO_IIOP_Transport::recv	(	char *	buf,
		size_t	len,
		const ACE_Time_Value *	s = 0
	)			[protected, virtual]

Bridge method to call a similar method on the connection handler.

Implements TAO_Transport.

void TAO_IIOP_Transport::update_protocol_properties	(	int	send_buffer_size,
		int	recv_buffer_size,
		int	no_delay,
		int	enable_network_priority
	)

Bridge method to call a similar method on the connection handler.

int TAO_IIOP_Transport::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	stream,
		TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	max_wait_time
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_IIOP_Transport::send_message	(	TAO_OutputCDR &	stream,
		TAO_Stub *	stub = 0,
		TAO_Message_Semantics	message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST,
		ACE_Time_Value *	max_time_wait = 0
	)			[virtual]

Bridge method to call a similar method on the connection handler.

Implements TAO_Transport.

int TAO_IIOP_Transport::generate_request_header	(	TAO_Operation_Details &	opdetails,
		TAO_Target_Specification &	spec,
		TAO_OutputCDR &	msg
	)			[virtual]

Bridge method to call a similar method on the connection handler.

Reimplemented from TAO_Transport.

int TAO_IIOP_Transport::tear_listen_point_list

(

TAO_InputCDR &

cdr

)

[virtual]

Bridge method to call a similar method on the connection handler.

Reimplemented from TAO_Transport.

TAO_Connection_Handler * TAO_IIOP_Transport::connection_handler_i

(

void

)

[virtual]

Bridge method to call a similar method on the connection handler.

Implements TAO_Transport.

void TAO_IIOP_Transport::set_bidir_context_info

(

TAO_Operation_Details &

opdetails

)

[private]

Set the Bidirectional context info in the service context list.

int TAO_IIOP_Transport::get_listen_point	(	IIOP::ListenPointList &	listen_point_list,
		TAO_Acceptor *	acceptor
	)			[private]

Add the listen points in acceptor to the listen_point_list if this connection is in the same interface as that of the endpoints in the acceptor

---

Member Data Documentation

TAO_IIOP_Connection_Handler* TAO_IIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

---

The documentation for this class was generated from the following files:

• IIOP_Transport.h
• IIOP_Transport.cpp
