TSS_Cleanup_Instance Class Reference

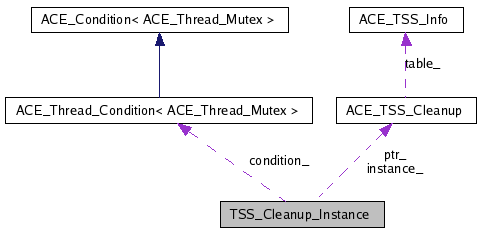

Collaboration diagram for TSS_Cleanup_Instance:

Collaboration graph
[legend]

List of all members.

Public Types

enum  Purpose { CREATE, USE, DESTROY }

Public Member Functions

 TSS_Cleanup_Instance (Purpose purpose=USE)
 ~TSS_Cleanup_Instance ()
bool valid ()
ACE_TSS_Cleanupoperator-> ()

Private Types

enum  { FLAG_DELETING = 1, FLAG_VALID_CHECKED = 2 }

Private Member Functions

ACE_TSS_Cleanupoperator* ()

Private Attributes

ACE_TSS_Cleanupptr_
unsigned short flags_

Static Private Attributes

static unsigned int reference_count_ = 0
static ACE_TSS_Cleanupinstance_ = 0
static ACE_Thread_Mutex * mutex_ = 0
static ACE_Thread_Condition
< ACE_Thread_Mutex > *
condition_ = 0


Detailed Description

class to manage an instance pointer to ACE_TSS_Cleanup. Note: that the double checked locking pattern doesn't allow safe deletion. Callers who wish to access the singleton ACE_TSS_Cleanup must do so by instantiating a TSS_Cleanup_Instance, calling the valid method to be sure the ACE_TSS_Cleanup is available, then using the TSS_Cleanup_Instance as a pointer to the instance. Construction argument to the TSS_Cleanup_Instance determines how it is to be used: CREATE means allow this call to create an ACE_TSS_Cleanup if necessary. USE means use the existing ACE_TSS_Cleanup, but do not create a new one. DESTROY means provide exclusive access to the ACE_TSS_Cleanup, then delete it when the TSS_Cleanup_Instance goes out of scope.

Member Enumeration Documentation

Enumerator:
CREATE
USE
DESTROY

anonymous enum [private]

Enumerator:
FLAG_DELETING
FLAG_VALID_CHECKED


Constructor & Destructor Documentation

TSS_Cleanup_Instance::TSS_Cleanup_Instance ( Purpose  purpose = USE  )

TSS_Cleanup_Instance::~TSS_Cleanup_Instance ( void   )


Member Function Documentation

bool TSS_Cleanup_Instance::valid (  )

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator-> ( void   )

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator* (  )  [private]


Member Data Documentation

unsigned int TSS_Cleanup_Instance::reference_count_ = 0 [static, private]

ACE_Thread_Mutex * TSS_Cleanup_Instance::mutex_ = 0 [static, private]

ACE_Thread_Condition< ACE_Thread_Mutex > * TSS_Cleanup_Instance::condition_ = 0 [static, private]

unsigned short TSS_Cleanup_Instance::flags_ [private]


The documentation for this class was generated from the following file:

Generated on Wed Apr 23 02:43:07 2008 for ACE by  doxygen 1.5.5
