ACE_TSS_Singleton< TYPE, ACE_LOCK > Class Template Reference

This class uses the Adapter pattern to turn ordinary classes into Thread-specific Singletons optimized with the Double-Checked Locking optimization pattern. More...

#include <Singleton.h>

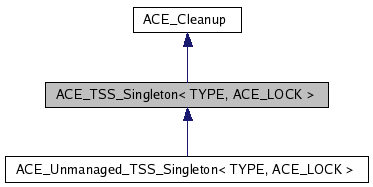

Inheritance diagram for ACE_TSS_Singleton< TYPE, ACE_LOCK >:

Inheritance graph
[legend]
Collaboration diagram for ACE_TSS_Singleton< TYPE, ACE_LOCK >:

Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void cleanup (void *param=0)

Static Public Member Functions

static TYPE * instance (void)
 Global access point to the singleton.
static void dump (void)
 Dump the state of the object.

Protected Member Functions

 ACE_TSS_Singleton (void)
 Default constructor.
 ACE_TSS_TYPE (TYPE) instance_
 Contained instance.
void operator= (const ACE_TSS_Singleton< TYPE, ACE_LOCK > &)
 ACE_TSS_Singleton (const ACE_TSS_Singleton< TYPE, ACE_LOCK > &)

Static Protected Member Functions

static ACE_TSS_Singleton< TYPE,
ACE_LOCK > *&
instance_i (void)
 Get pointer to the TSS Singleton instance.

Static Protected Attributes

static ACE_TSS_Singleton< TYPE,
ACE_LOCK > *
singleton_ = 0
 Pointer to the Singleton (ACE_Cleanup) instance.


Detailed Description

template<class TYPE, class ACE_LOCK>
class ACE_TSS_Singleton< TYPE, ACE_LOCK >

This class uses the Adapter pattern to turn ordinary classes into Thread-specific Singletons optimized with the Double-Checked Locking optimization pattern.

This implementation is another variation on the GoF Singleton pattern. In this case, a single <ACE_TSS_Singleton<TYPE, LOCK> > instance is allocated here, not a <TYPE> instance. Each call to the <instance> static method returns a Singleton whose pointer resides in thread-specific storage. As with ACE_Singleton, we use the ACE_Object_Manager so that the Singleton can be cleaned up when the process exits. For this scheme to work, a (static) cleanup() function must be provided. ACE_Singleton provides one so that TYPE doesn't need to.


Constructor & Destructor Documentation

template<class TYPE, class ACE_LOCK>
ACE_INLINE ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_Singleton ( void   )  [inline, protected]

Default constructor.

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_Singleton ( const ACE_TSS_Singleton< TYPE, ACE_LOCK > &   )  [protected]


Member Function Documentation

template<class TYPE, class ACE_LOCK>
TYPE * ACE_TSS_Singleton< TYPE, ACE_LOCK >::instance ( void   )  [inline, static]

Global access point to the singleton.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::cleanup ( void *  param = 0  )  [inline, virtual]

Cleanup method, used by <ace_cleanup_destroyer> to destroy the singleton.

Reimplemented from ACE_Cleanup.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::dump ( void   )  [inline, static]

Dump the state of the object.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_TYPE ( TYPE   )  [protected]

Contained instance.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::operator= ( const ACE_TSS_Singleton< TYPE, ACE_LOCK > &   )  [protected]

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK > *& ACE_TSS_Singleton< TYPE, ACE_LOCK >::instance_i ( void   )  [inline, static, protected]

Get pointer to the TSS Singleton instance.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.


Member Data Documentation

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK > * ACE_TSS_Singleton< TYPE, ACE_LOCK >::singleton_ = 0 [inline, static, protected]

Pointer to the Singleton (ACE_Cleanup) instance.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.


The documentation for this class was generated from the following files:
