ACE_TLI_Acceptor Class Reference

Defines the member functions for ACE_TLI_Acceptor abstraction. More...

#include <TLI_Acceptor.h>

Inheritance diagram for ACE_TLI_Acceptor:

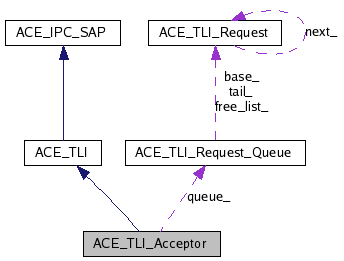

Collaboration diagram for ACE_TLI_Acceptor:

List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR

typedef ACE_TLI_Stream PEER_STREAM

Public Member Functions

ACE_TLI_Acceptor (void)

Default constructor.

ACE_TLI_Acceptor (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)

Initiate a passive mode socket.

ACE_HANDLE open (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)

Initiate a passive mode socket.

int close (void)

Close down the acceptor and release resources.

int accept (ACE_TLI_Stream &new_tli_sap, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0, int rwflag=1, netbuf *udata=0, netbuf *opt=0)

void dump (void) const

Dump the state of an object.

Public Attributes

ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Private Member Functions

int handle_async_event (int restart, int rwflag)

Handle TLI accept insanity...

Private Attributes

const char * device_

Network "device" we are using.

int backlog_

Number of connections to queue.

int rwflag_

Are we using "tirdwr" mod?

ACE_TLI_Request_Queue * queue_

Used for queueing up pending requests.

struct t_discon * disp_

Used for handling disconnects.

Friends

class ACE_Request_Queue

Detailed Description

Defines the member functions for ACE_TLI_Acceptor abstraction.

This class implements the algorithm described in Steve Rago's book on System V UNIX network programming. It basically makes TLI look like the C++ SOCK_SAP socket wrappers with respect to establishing passive-mode listener endpoints.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_TLI_Acceptor::PEER_ADDR

typedef ACE_TLI_Stream ACE_TLI_Acceptor::PEER_STREAM

Constructor & Destructor Documentation

ACE_TLI_Acceptor::ACE_TLI_Acceptor ( void )

Default constructor.

ACE_TLI_Acceptor::ACE_TLI_Acceptor	(	const ACE_Addr &	remote_sap,
		int	reuse_addr = `0`,
		int	oflag = `O_RDWR`,
		struct t_info *	info = `0`,
		int	backlog = `ACE_DEFAULT_BACKLOG`,
		const char	device[] = `ACE_TLI_TCP_DEVICE`
	)

Initiate a passive mode socket.

Member Function Documentation

ACE_HANDLE ACE_TLI_Acceptor::open	(	const ACE_Addr &	remote_sap,
		int	reuse_addr = `0`,
		int	oflag = `O_RDWR`,
		struct t_info *	info = `0`,
		int	backlog = `ACE_DEFAULT_BACKLOG`,
		const char	device[] = `ACE_TLI_TCP_DEVICE`
	)

Initiate a passive mode socket.

int ACE_TLI_Acceptor::close ( void )

Close down the acceptor and release resources.

Reimplemented from ACE_TLI.

int ACE_TLI_Acceptor::accept	(	ACE_TLI_Stream &	new_tli_sap,
		ACE_Addr *	remote_addr = `0`,
		ACE_Time_Value *	timeout = `0`,
		int	restart = `1`,
		int	reset_new_handle = `0`,
		int	rwflag = `1`,
		netbuf *	udata = `0`,
		netbuf *	opt = `0`
	)

Accept a new data transfer connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. <restart> == 1 means "restart if interrupted."

void ACE_TLI_Acceptor::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_TLI.

int ACE_TLI_Acceptor::handle_async_event	(	int	restart,
		int	rwflag
	)			`[private]`

Handle TLI accept insanity...

Friends And Related Function Documentation

friend class ACE_Request_Queue [friend]

Member Data Documentation

ACE_TLI_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_TLI.

const char* ACE_TLI_Acceptor::device_ [private]

Network "device" we are using.

int ACE_TLI_Acceptor::backlog_ [private]

Number of connections to queue.

int ACE_TLI_Acceptor::rwflag_ [private]

Are we using "tirdwr" mod?

ACE_TLI_Request_Queue* ACE_TLI_Acceptor::queue_ [private]

Used for queueing up pending requests.

struct t_discon* ACE_TLI_Acceptor::disp_ [read, private]

Used for handling disconnects.

The documentation for this class was generated from the following files:
