ACE_Strong_Bound_Ptr< X, ACE_LOCK > Class Template Reference

This class implements support for a reference counted pointer. More...

#include <Bound_Ptr.h>

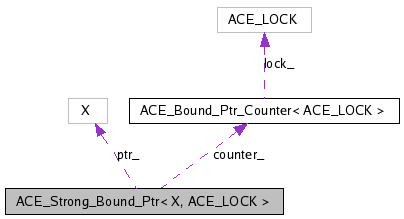

Collaboration diagram for ACE_Strong_Bound_Ptr< X, ACE_LOCK >:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_Strong_Bound_Ptr (X *p=0)
 ACE_Strong_Bound_Ptr (auto_ptr< X > p)
 ACE_Strong_Bound_Ptr (const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &r)
 Copy constructor binds this and r to the same object.
 ACE_Strong_Bound_Ptr (const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &r)
 Constructor binds this and r to the same object.
template<class Y>
 ACE_Strong_Bound_Ptr (const ACE_Strong_Bound_Ptr< Y, ACE_LOCK > &r)
 ~ACE_Strong_Bound_Ptr (void)
 Destructor.
void operator= (const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &r)
 Assignment operator that binds this and r to the same object.
void operator= (const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &r)
 Assignment operator that binds this and r to the same object.
template<class Y>
ACE_Weak_Bound_Ptr< X, ACE_LOCK > & operator= (const ACE_Strong_Bound_Ptr< Y, ACE_LOCK > &r)
bool operator== (const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &r) const
bool operator== (const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &r) const
bool operator== (X *p) const
bool operator!= (const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &r) const
 Inequality operator, which is the opposite of equality.
bool operator!= (const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &r) const
 Inequality operator, which is the opposite of equality.
bool operator!= (X *p) const
 Inequality operator, which is the opposite of equality.
X * operator-> (void) const
 Redirection operator.
X & operator* (void) const
 Dereference operator.
X * get (void) const
 Get the pointer value.
void reset (X *p=0)
void reset (auto_ptr< X > p)
int null (void) const

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Types

typedef X X_t
typedef ACE_Bound_Ptr_Counter
< ACE_LOCK >
COUNTER
 The ACE_Bound_Ptr_Counter type.

Private Attributes

COUNTERcounter_
 The reference counter.
X * ptr_
 The underlying object.

Friends

class ACE_Weak_Bound_Ptr< X, ACE_LOCK >
class ACE_Strong_Bound_Ptr


Detailed Description

template<class X, class ACE_LOCK>
class ACE_Strong_Bound_Ptr< X, ACE_LOCK >

This class implements support for a reference counted pointer.

Assigning or copying instances of an ACE_Strong_Bound_Ptr will automatically increment the reference count of the underlying object. When the last instance of an ACE_Strong_Bound_Ptr that references a particular object is destroyed or overwritten, it will invoke delete on its underlying pointer.


Member Typedef Documentation

template<class X, class ACE_LOCK>
typedef X ACE_Strong_Bound_Ptr< X, ACE_LOCK >::X_t [private]

template<class X, class ACE_LOCK>
typedef ACE_Bound_Ptr_Counter<ACE_LOCK> ACE_Strong_Bound_Ptr< X, ACE_LOCK >::COUNTER [private]


Constructor & Destructor Documentation

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_Strong_Bound_Ptr ( X *  p = 0  )  [inline, explicit]

Constructor that initializes an ACE_Strong_Bound_Ptr to point to the object <p> immediately.

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_Strong_Bound_Ptr ( auto_ptr< X >  p  )  [inline, explicit]

Constructor that initializes an ACE_Strong_Bound_Ptr by stealing ownership of an object from an auto_ptr.

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_Strong_Bound_Ptr ( const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &  r  )  [inline]

Copy constructor binds this and r to the same object.

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_Strong_Bound_Ptr ( const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &  r  )  [inline]

Constructor binds this and r to the same object.

template<class X, class ACE_LOCK>
template<class Y>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_Strong_Bound_Ptr ( const ACE_Strong_Bound_Ptr< Y, ACE_LOCK > &  r  )  [inline]

Copy constructor binds this and r to the same object if Y* can be implicitly converted to X*.

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::~ACE_Strong_Bound_Ptr ( void   )  [inline]

Destructor.


Member Function Documentation

template<class X, class ACE_LOCK>
void ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator= ( const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &  r  )  [inline]

Assignment operator that binds this and r to the same object.

template<class X, class ACE_LOCK>
void ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator= ( const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &  r  )  [inline]

Assignment operator that binds this and r to the same object.

template<class X, class ACE_LOCK>
template<class Y>
ACE_Weak_Bound_Ptr<X, ACE_LOCK>& ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator= ( const ACE_Strong_Bound_Ptr< Y, ACE_LOCK > &  r  )  [inline]

Assignment operator that binds this and r to the same object if Y* can be implicitly converted to X*.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator== ( const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &  r  )  const [inline]

Equality operator that returns true if both ACE_Strong_Bound_Ptr instances point to the same underlying object.

Note:
It also returns true if both objects have just been instantiated and not used yet.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator== ( const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &  r  )  const [inline]

Equality operator that returns true if the ACE_Strong_Bound_Ptr and ACE_Weak_Bound_Ptr objects point to the same underlying object.

Note:
It also returns true if both objects have just been instantiated and not used yet.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator== ( X *  p  )  const [inline]

Equality operator that returns true if the ACE_Strong_Bound_Ptr and the raw pointer point to the same underlying object.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator!= ( const ACE_Strong_Bound_Ptr< X, ACE_LOCK > &  r  )  const [inline]

Inequality operator, which is the opposite of equality.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator!= ( const ACE_Weak_Bound_Ptr< X, ACE_LOCK > &  r  )  const [inline]

Inequality operator, which is the opposite of equality.

template<class X, class ACE_LOCK>
bool ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator!= ( X *  p  )  const [inline]

Inequality operator, which is the opposite of equality.

template<class X, class ACE_LOCK>
X * ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator-> ( void   )  const [inline]

Redirection operator.

template<class X, class ACE_LOCK>
X & ACE_Strong_Bound_Ptr< X, ACE_LOCK >::operator* ( void   )  const [inline]

Dereference operator.

template<class X, class ACE_LOCK>
X * ACE_Strong_Bound_Ptr< X, ACE_LOCK >::get ( void   )  const [inline]

Get the pointer value.

template<class X, class ACE_LOCK>
void ACE_Strong_Bound_Ptr< X, ACE_LOCK >::reset ( X *  p = 0  )  [inline]

Resets the ACE_Strong_Bound_Ptr to refer to a different underlying object.

template<class X, class ACE_LOCK>
void ACE_Strong_Bound_Ptr< X, ACE_LOCK >::reset ( auto_ptr< X >  p  )  [inline]

Resets the ACE_Strong_Bound_Ptr to refer to a different underlying object, ownership of which is stolen from the auto_ptr.

template<class X, class ACE_LOCK>
int ACE_Strong_Bound_Ptr< X, ACE_LOCK >::null ( void   )  const [inline]

Allows us to check for NULL on all ACE_Strong_Bound_Ptr objects.


Friends And Related Function Documentation

template<class X, class ACE_LOCK>
friend class ACE_Weak_Bound_Ptr< X, ACE_LOCK > [friend]

template<class X, class ACE_LOCK>
friend class ACE_Strong_Bound_Ptr [friend]


Member Data Documentation

template<class X, class ACE_LOCK>
ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class X, class ACE_LOCK>
COUNTER* ACE_Strong_Bound_Ptr< X, ACE_LOCK >::counter_ [private]

The reference counter.

template<class X, class ACE_LOCK>
X* ACE_Strong_Bound_Ptr< X, ACE_LOCK >::ptr_ [private]

The underlying object.


The documentation for this class was generated from the following files:

Generated on Wed Apr 23 02:42:07 2008 for ACE by  doxygen 1.5.5
