ACE_Shared_Memory_SV Class Reference

Shared memory wrapper based on System V shared memory. More...

#include <Shared_Memory_SV.h>

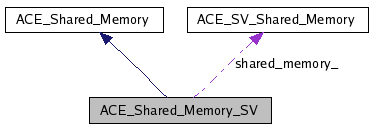

Inheritance diagram for ACE_Shared_Memory_SV:

Inheritance graph
[legend]
Collaboration diagram for ACE_Shared_Memory_SV:

Collaboration graph
[legend]

List of all members.

Public Types

enum  { ACE_CREATE = IPC_CREAT, ACE_OPEN = 0 }

Public Member Functions

 ACE_Shared_Memory_SV (void)
 ACE_Shared_Memory_SV (key_t id, size_t length, int create=ACE_Shared_Memory_SV::ACE_OPEN, int perms=ACE_DEFAULT_FILE_PERMS, void *addr=0, int flags=0)
int open (key_t id, size_t length, int create=ACE_Shared_Memory_SV::ACE_OPEN, int perms=ACE_DEFAULT_FILE_PERMS, void *addr=0, int flags=0)
virtual int close (void)
 Close down the shared memory segment.
virtual int remove (void)
 Remove the underlying shared memory segment.
virtual void * malloc (size_t=0)
 Create a new chuck of memory containing size bytes.
virtual int free (void *p)
 Free a chuck of memory allocated by <ACE_Shared_Memory_SV::malloc>.
virtual size_t get_segment_size (void) const
 Return the size of the shared memory segment.
virtual ACE_HANDLE get_id (void) const
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_SV_Shared_Memory shared_memory_


Detailed Description

Shared memory wrapper based on System V shared memory.

This class provides a very simple-minded shared memory manager. We strongly recommend that you do NOT use this class. Instead, please use ACE_Malloc, which has much more powerful capabilities.


Member Enumeration Documentation

anonymous enum

Enumerator:
ACE_CREATE
ACE_OPEN


Constructor & Destructor Documentation

ACE_INLINE ACE_Shared_Memory_SV::ACE_Shared_Memory_SV ( void   )

ACE_Shared_Memory_SV::ACE_Shared_Memory_SV ( key_t  id,
size_t  length,
int  create = ACE_Shared_Memory_SV::ACE_OPEN,
int  perms = ACE_DEFAULT_FILE_PERMS,
void *  addr = 0,
int  flags = 0
)


Member Function Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_Shared_Memory_SV::open ( key_t  id,
size_t  length,
int  create = ACE_Shared_Memory_SV::ACE_OPEN,
int  perms = ACE_DEFAULT_FILE_PERMS,
void *  addr = 0,
int  flags = 0
)

int ACE_Shared_Memory_SV::close ( void   )  [virtual]

Close down the shared memory segment.

Implements ACE_Shared_Memory.

int ACE_Shared_Memory_SV::remove ( void   )  [virtual]

Remove the underlying shared memory segment.

Implements ACE_Shared_Memory.

void * ACE_Shared_Memory_SV::malloc ( size_t  = 0  )  [virtual]

Create a new chuck of memory containing size bytes.

Implements ACE_Shared_Memory.

int ACE_Shared_Memory_SV::free ( void *  p  )  [virtual]

Free a chuck of memory allocated by <ACE_Shared_Memory_SV::malloc>.

Implements ACE_Shared_Memory.

size_t ACE_Shared_Memory_SV::get_segment_size ( void   )  const [virtual]

Return the size of the shared memory segment.

Implements ACE_Shared_Memory.

ACE_HANDLE ACE_Shared_Memory_SV::get_id ( void   )  const [virtual]

Return the ID of the shared memory segment (i.e., a System V shared memory internal id).

Implements ACE_Shared_Memory.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Shared_Memory_SV::dump ( void   )  const

Dump the state of an object.


Member Data Documentation

Declare the dynamic allocation hooks.

This version is implemented with System V shared memory segments.


The documentation for this class was generated from the following files:
