ACE_Service_Type Class Reference

Keeps track of information related to the various ACE_Service_Type_Impl subclasses. More...

#include <Service_Object.h>

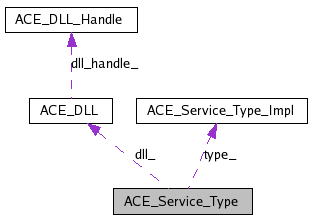

Collaboration diagram for ACE_Service_Type:

Collaboration graph
[legend]

List of all members.

Public Types

enum  { DELETE_OBJ = 1, DELETE_THIS = 2 }
enum  { SERVICE_OBJECT = ACE_SVC_OBJ_T, MODULE = ACE_MODULE_T, STREAM = ACE_STREAM_T, INVALID_TYPE = -1 }

Public Member Functions

 ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, const ACE_DLL &dll, int active)
 ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, ACE_SHLIB_HANDLE handle, int active)
 ~ACE_Service_Type (void)
const ACE_TCHARname (void) const
void name (const ACE_TCHAR *)
const ACE_Service_Type_Impltype (void) const
void type (const ACE_Service_Type_Impl *, int active=1)
bool is_forward_declaration (void) const
int suspend (void) const
int resume (void) const
int active (void) const
void active (int)
int fini (void)
 Calls <fini> on <type_>.
int fini_called (void) const
 Check if the service has been fini'ed.
void dump (void) const
 Dump the state of an object.
const ACE_DLLdll (void) const
 Get to the DLL's implentation.
void dll (const ACE_DLL &)
 Sets the DLL.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

const ACE_TCHARname_
 Humanly readible name of svc.
const ACE_Service_Type_Impltype_
 Pointer to C++ object that implements the svc.
ACE_DLL dll_
int active_
 1 if svc is currently active, otherwise 0.
int fini_already_called_
 1 if <fini> on <type_> has already been called, otherwise 0.


Detailed Description

Keeps track of information related to the various ACE_Service_Type_Impl subclasses.

This class acts as the interface of the "Bridge" pattern.


Member Enumeration Documentation

anonymous enum

Enumerator:
DELETE_OBJ  Delete the payload object.
DELETE_THIS  Delete the enclosing object.

anonymous enum

Enumerator:
SERVICE_OBJECT
MODULE
STREAM
INVALID_TYPE


Constructor & Destructor Documentation

ACE_Service_Type::ACE_Service_Type ( const ACE_TCHAR n,
ACE_Service_Type_Impl o,
const ACE_DLL dll,
int  active
)

ACE_Service_Type::ACE_Service_Type ( const ACE_TCHAR n,
ACE_Service_Type_Impl o,
ACE_SHLIB_HANDLE  handle,
int  active
)

ACE_Service_Type::~ACE_Service_Type ( void   )


Member Function Documentation

ACE_INLINE const ACE_TCHAR * ACE_Service_Type::name ( void   )  const

void ACE_Service_Type::name ( const ACE_TCHAR n  )

ACE_INLINE const ACE_Service_Type_Impl * ACE_Service_Type::type ( void   )  const

ACE_INLINE void ACE_Service_Type::type ( const ACE_Service_Type_Impl o,
int  active = 1
)

bool ACE_Service_Type::is_forward_declaration ( void   )  const

int ACE_Service_Type::suspend ( void   )  const

int ACE_Service_Type::resume ( void   )  const

ACE_INLINE int ACE_Service_Type::active ( void   )  const

ACE_INLINE void ACE_Service_Type::active ( int  turnon  )

int ACE_Service_Type::fini ( void   )

Calls <fini> on <type_>.

ACE_INLINE int ACE_Service_Type::fini_called ( void   )  const

Check if the service has been fini'ed.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Service_Type::dump ( void   )  const

Dump the state of an object.

ACE_INLINE const ACE_DLL & ACE_Service_Type::dll ( void   )  const

Get to the DLL's implentation.

ACE_INLINE void ACE_Service_Type::dll ( const ACE_DLL adll  )

Sets the DLL.


Member Data Documentation

Declare the dynamic allocation hooks.

Humanly readible name of svc.

Pointer to C++ object that implements the svc.

ACE_DLL ACE_Service_Type::dll_ [mutable, private]

ACE_DLL representing the shared object file (non-zero if dynamically linked).

1 if svc is currently active, otherwise 0.

1 if <fini> on <type_> has already been called, otherwise 0.


The documentation for this class was generated from the following files:
