ACE_Multihomed_INET_Addr Class Reference

Extends ACE_INET_Addr with support for multi-homed addresses. More...

#include <Multihomed_INET_Addr.h>

Inheritance diagram for ACE_Multihomed_INET_Addr:

[legend]

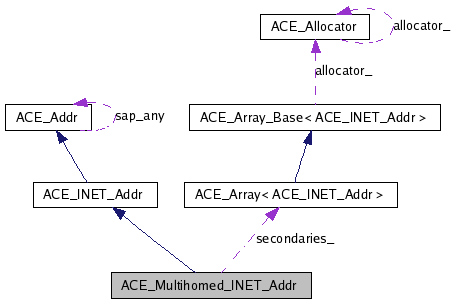

Collaboration diagram for ACE_Multihomed_INET_Addr:

[legend]

List of all members.

Public Member Functions
	ACE_Multihomed_INET_Addr (void)
	Default constructor.
	ACE_Multihomed_INET_Addr (const char address[])
	ACE_Multihomed_INET_Addr (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
	ACE_Multihomed_INET_Addr (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
	ACE_Multihomed_INET_Addr (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
int	set (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
	~ACE_Multihomed_INET_Addr (void)
	Use compiler-generated copy constructor.
int	set (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
int	set (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
void	set_port_number (u_short port_number, int encode=1)
size_t	get_num_secondary_addresses () const
int	get_secondary_addresses (ACE_INET_Addr *secondary_addrs, size_t size) const
void	get_addresses (sockaddr_in *addrs, size_t size) const
void	get_addresses (sockaddr_in6 *addrs, size_t size) const
	IPV6 version of the above.
Private Attributes
ACE_Array< ACE_INET_Addr >	secondaries_

---

Detailed Description

Extends ACE_INET_Addr with support for multi-homed addresses.

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr

(

void

)

Default constructor.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr

(

const char

address[]

)

[explicit]

Initializes an ACE_Multihomed_INET_Addr from the address, which can be "ip-number:port-number" (e.g., "tango.cs.wustl.edu:1234" or "128.252.166.57:1234"). If there is no ':' in the address it is assumed to be a port number, with the IP address being INADDR_ANY.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		const char	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const char *	secondary_host_names[] = 0,
		size_t	size = 0
	)

Constructs an ACE_Multihomed_INET_Addr from a port_number, a primary_host_name, and an array of <secondary_host_names>. size is taken to be the length of the array. If encode is non-zero, then port_number is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. address_family can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		ACE_UINT32	primary_ip_addr = INADDR_ANY,
		int	encode = 1,
		const ACE_UINT32 *	secondary_ip_addrs = 0,
		size_t	size = 0
	)

Constructs an ACE_Multihomed_INET_Addr from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr	(	u_short	port_number,
		const wchar_t	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const wchar_t *	secondary_host_names[] = 0,
		size_t	size = 0
	)

WCHAR versions of the methods that take char's as arguments.

ACE_Multihomed_INET_Addr::~ACE_Multihomed_INET_Addr

(

void

)

Use compiler-generated copy constructor.

Use compiler-generated assignment operator. Default dtor.

---

Member Function Documentation

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		const wchar_t	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const wchar_t *	secondary_host_names[] = 0,
		size_t	size = 0
	)

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		const char	primary_host_name[],
		int	encode = 1,
		int	address_family = AF_UNSPEC,
		const char *	secondary_host_names[] = 0,
		size_t	size = 0
	)

Initializes an ACE_Multihomed_INET_Addr from a port_number, a primary_host_name, and an array of <secondary_host_names>. size is taken to be the length of the array. If encode is non-zero, then port_number is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. address_family can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

int ACE_Multihomed_INET_Addr::set	(	u_short	port_number,
		ACE_UINT32	primary_ip_addr = INADDR_ANY,
		int	encode = 1,
		const ACE_UINT32 *	secondary_ip_addrs = 0,
		size_t	size = 0
	)

Initializes an ACE_Multihomed_INET_Addr from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

void ACE_Multihomed_INET_Addr::set_port_number	(	u_short	port_number,
		int	encode = 1
	)

Sets the port number without affecting the host name. The port numbers of the primary address, and of any and all secondary addresses, are affected. If encode is enabled, then port_number is converted into network byte order, otherwise it is assumed to be in network byte order already and is passed straight through.

Reimplemented from ACE_INET_Addr.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE size_t ACE_Multihomed_INET_Addr::get_num_secondary_addresses

(

)

const

Returns the number of secondary addresses.

int ACE_Multihomed_INET_Addr::get_secondary_addresses	(	ACE_INET_Addr *	secondary_addrs,
		size_t	size
	)			const

Initialize user-supplied array secondary_addrs with the current secondary addresses. size is taken as the size of this array.

void ACE_Multihomed_INET_Addr::get_addresses	(	sockaddr_in *	addrs,
		size_t	size
	)			const

Initialize user-supplied array addrs with the the current primary and secondary addresses. size is taken as the size of this array.

void ACE_Multihomed_INET_Addr::get_addresses	(	sockaddr_in6 *	addrs,
		size_t	size
	)			const

IPV6 version of the above.

---

Member Data Documentation

ACE_Array<ACE_INET_Addr> ACE_Multihomed_INET_Addr::secondaries_ [private]

---

The documentation for this class was generated from the following files:

• Multihomed_INET_Addr.h
• Multihomed_INET_Addr.cpp
• Multihomed_INET_Addr.inl
