ACE_Map< KEY, VALUE > Class Template Reference

Defines a map interface. More...

#include <Map_T.h>

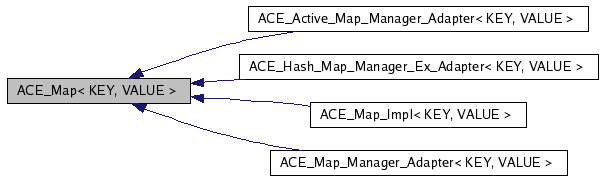

Inheritance diagram for ACE_Map< KEY, VALUE >:

Inheritance graph
[legend]

List of all members.

Public Types

typedef KEY key_type
typedef VALUE mapped_type
typedef ACE_Reference_Pair
< const KEY, VALUE >
value_type
typedef ACE_Iterator< value_typeiterator
typedef ACE_Reverse_Iterator
< value_type
reverse_iterator
typedef ACE_Iterator_Impl
< value_type
iterator_implementation
typedef
ACE_Reverse_Iterator_Impl
< value_type
reverse_iterator_implementation

Public Member Functions

virtual ~ACE_Map (void)
 Close down and release dynamically allocated resources.
virtual int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)=0
 Initialize a map with size length.
virtual int close (void)=0
 Close down a <Map> and release dynamically allocated resources.
virtual int bind (const KEY &key, const VALUE &value)=0
virtual int bind_modify_key (const VALUE &value, KEY &key)=0
virtual int create_key (KEY &key)=0
virtual int bind_create_key (const VALUE &value, KEY &key)=0
virtual int bind_create_key (const VALUE &value)=0
virtual int recover_key (const KEY &modified_key, KEY &original_key)=0
virtual int rebind (const KEY &key, const VALUE &value)=0
virtual int rebind (const KEY &key, const VALUE &value, VALUE &old_value)=0
virtual int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)=0
virtual int trybind (const KEY &key, VALUE &value)=0
virtual int find (const KEY &key, VALUE &value)=0
 Locate value associated with key.
virtual int find (const KEY &key)=0
 Is key in the map?
virtual int unbind (const KEY &key)=0
 Remove key from the map.
virtual int unbind (const KEY &key, VALUE &value)=0
virtual size_t current_size (void) const =0
 Return the current size of the map.
virtual size_t total_size (void) const =0
 Return the total size of the map.
virtual void dump (void) const =0
 Dump the state of an object.
iterator begin (void)
 Return forward iterator.
iterator end (void)
reverse_iterator rbegin (void)
 Return reverse iterator.
reverse_iterator rend (void)

Protected Member Functions

 ACE_Map (void)
virtual ACE_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
begin_impl (void)=0
 Return forward iterator.
virtual ACE_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
end_impl (void)=0
virtual
ACE_Reverse_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
rbegin_impl (void)=0
 Return reverse iterator.
virtual
ACE_Reverse_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
rend_impl (void)=0

Private Member Functions

void operator= (const ACE_Map< KEY, VALUE > &)
 ACE_Map (const ACE_Map< KEY, VALUE > &)


Detailed Description

template<class KEY, class VALUE>
class ACE_Map< KEY, VALUE >

Defines a map interface.

Implementation to be provided by subclasses.


Member Typedef Documentation

template<class KEY, class VALUE>
typedef KEY ACE_Map< KEY, VALUE >::key_type

template<class KEY, class VALUE>
typedef VALUE ACE_Map< KEY, VALUE >::mapped_type

template<class KEY, class VALUE>
typedef ACE_Reference_Pair<const KEY, VALUE> ACE_Map< KEY, VALUE >::value_type

template<class KEY, class VALUE>
typedef ACE_Iterator<value_type> ACE_Map< KEY, VALUE >::iterator

template<class KEY, class VALUE>
typedef ACE_Reverse_Iterator<value_type> ACE_Map< KEY, VALUE >::reverse_iterator

template<class KEY, class VALUE>
typedef ACE_Iterator_Impl<value_type> ACE_Map< KEY, VALUE >::iterator_implementation

template<class KEY, class VALUE>
typedef ACE_Reverse_Iterator_Impl<value_type> ACE_Map< KEY, VALUE >::reverse_iterator_implementation


Constructor & Destructor Documentation

template<class KEY, class VALUE>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Map< KEY, VALUE >::~ACE_Map ( void   )  [inline, virtual]

Close down and release dynamically allocated resources.

template<class KEY, class VALUE>
ACE_INLINE ACE_Map< KEY, VALUE >::ACE_Map ( void   )  [inline, protected]

template<class KEY, class VALUE>
ACE_Map< KEY, VALUE >::ACE_Map ( const ACE_Map< KEY, VALUE > &   )  [private]


Member Function Documentation

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::open ( size_t  length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator alloc = 0
) [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::close ( void   )  [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind ( const KEY &  key,
const VALUE &  value
) [pure virtual]

Add key / value pair to the map. If key is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. key is an "in" parameter.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_modify_key ( const VALUE &  value,
KEY &  key
) [pure virtual]

Add key / value pair to the map. key is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the <recover_key> method.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::create_key ( KEY &  key  )  [pure virtual]

Produce a key and return it through key which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_create_key ( const VALUE &  value,
KEY &  key
) [pure virtual]

Add value to the map, and the corresponding key produced by the Map is returned through key which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_create_key ( const VALUE &  value  )  [pure virtual]

Add value to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::recover_key ( const KEY &  modified_key,
KEY &  original_key
) [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind ( const KEY &  key,
const VALUE &  value
) [pure virtual]

Reassociate key with value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind ( const KEY &  key,
const VALUE &  value,
VALUE &  old_value
) [pure virtual]

Reassociate key with value, storing the old value into the "out" parameter old_value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind ( const KEY &  key,
const VALUE &  value,
KEY &  old_key,
VALUE &  old_value
) [pure virtual]

Reassociate key with value, storing the old key and value into the "out" parameters old_key and old_value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::trybind ( const KEY &  key,
VALUE &  value
) [pure virtual]

Associate key with value if and only if key is not in the map. If key is already in the map, then the value parameter is overwritten with the existing value in the map. Returns 0 if a new key / value association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::find ( const KEY &  key,
VALUE &  value
) [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::find ( const KEY &  key  )  [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::unbind ( const KEY &  key  )  [pure virtual]

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::unbind ( const KEY &  key,
VALUE &  value
) [pure virtual]

template<class KEY, class VALUE>
virtual size_t ACE_Map< KEY, VALUE >::current_size ( void   )  const [pure virtual]

template<class KEY, class VALUE>
virtual size_t ACE_Map< KEY, VALUE >::total_size ( void   )  const [pure virtual]

template<class KEY, class VALUE>
virtual void ACE_Map< KEY, VALUE >::dump ( void   )  const [pure virtual]

template<class KEY, class VALUE>
ACE_INLINE ACE_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::begin ( void   )  [inline]

Return forward iterator.

template<class KEY, class VALUE>
ACE_INLINE ACE_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::end ( void   )  [inline]

template<class KEY, class VALUE>
ACE_INLINE ACE_Reverse_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::rbegin ( void   )  [inline]

Return reverse iterator.

template<class KEY, class VALUE>
ACE_INLINE ACE_Reverse_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::rend ( void   )  [inline]

template<class KEY, class VALUE>
virtual ACE_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::begin_impl ( void   )  [protected, pure virtual]

template<class KEY, class VALUE>
virtual ACE_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::end_impl ( void   )  [protected, pure virtual]

template<class KEY, class VALUE>
virtual ACE_Reverse_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::rbegin_impl ( void   )  [protected, pure virtual]

template<class KEY, class VALUE>
virtual ACE_Reverse_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::rend_impl ( void   )  [protected, pure virtual]

template<class KEY, class VALUE>
void ACE_Map< KEY, VALUE >::operator= ( const ACE_Map< KEY, VALUE > &   )  [private]


The documentation for this class was generated from the following files:

Generated on Wed Apr 23 02:39:52 2008 for ACE by  doxygen 1.5.5
