ACE_Double_Linked_List_Iterator_Base< T > Class Template Reference

Implements a common base class for iterators for a double linked list ADT. More...

#include <Containers_T.h>

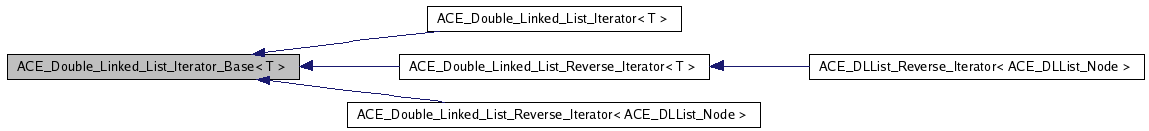

Inheritance diagram for ACE_Double_Linked_List_Iterator_Base< T >:

Inheritance graph
[legend]

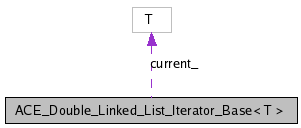

Collaboration diagram for ACE_Double_Linked_List_Iterator_Base< T >:

Collaboration graph
[legend]

List of all members.

Public Member Functions

int next (T *&) const
T * next (void) const
int done (void) const
 Returns 1 when all items have been seen, else 0.
T & operator* (void) const
void reset (ACE_Double_Linked_List< T > &)

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

 ACE_Double_Linked_List_Iterator_Base (const ACE_Double_Linked_List< T > &)
 Constructor.
 ACE_Double_Linked_List_Iterator_Base (const ACE_Double_Linked_List_Iterator_Base< T > &iter)
 Copy constructor.
int go_head (void)
int go_tail (void)
T * not_done (void) const
T * do_advance (void)
T * do_retreat (void)
void dump_i (void) const
 Dump the state of an object.

Protected Attributes

T * current_
 Remember where we are.
const ACE_Double_Linked_List< T > * dllist_


Detailed Description

template<class T>
class ACE_Double_Linked_List_Iterator_Base< T >

Implements a common base class for iterators for a double linked list ADT.

Constructor & Destructor Documentation

template<class T>
ACE_Double_Linked_List_Iterator_Base< T >::ACE_Double_Linked_List_Iterator_Base ( const ACE_Double_Linked_List< T > &  dll  )  [inline, protected]

Constructor.

template<class T>
ACE_Double_Linked_List_Iterator_Base< T >::ACE_Double_Linked_List_Iterator_Base ( const ACE_Double_Linked_List_Iterator_Base< T > &  iter  )  [inline, protected]

Copy constructor.


Member Function Documentation

template<class T>
int ACE_Double_Linked_List_Iterator_Base< T >::next ( T *&  ptr  )  const [inline]

Passes back the {entry} under the iterator. Returns 0 if the iteration has completed, otherwise 1

template<class T>
T * ACE_Double_Linked_List_Iterator_Base< T >::next ( void   )  const [inline]

Deprecated:
Return the address of next (current) unvisited item in the list. 0 if there is no more element available.

Reimplemented in ACE_DLList_Iterator< T >, and ACE_DLList_Reverse_Iterator< T >.

template<class T>
int ACE_Double_Linked_List_Iterator_Base< T >::done ( void   )  const [inline]

Returns 1 when all items have been seen, else 0.

template<class T>
T & ACE_Double_Linked_List_Iterator_Base< T >::operator* ( void   )  const [inline]

STL-like iterator dereference operator: returns a reference to the node underneath the iterator.

template<class T>
void ACE_Double_Linked_List_Iterator_Base< T >::reset ( ACE_Double_Linked_List< T > &  dll  )  [inline]

Retasks the iterator to iterate over a new Double_Linked_List. This allows clients to reuse an iterator without incurring the constructor overhead. If you do use this, be aware that if there are more than one reference to this iterator, the other "clients" may be very bothered when their iterator changes. @ Here be dragons. Comments?

Reimplemented in ACE_Double_Linked_List_Iterator< T >, ACE_Double_Linked_List_Reverse_Iterator< T >, and ACE_Double_Linked_List_Iterator< ACE_DLList_Node >.

template<class T>
int ACE_Double_Linked_List_Iterator_Base< T >::go_head ( void   )  [inline, protected]

Move to the first element of the list. Returns 0 if the list is empty, else 1.

Note:
the head of the ACE_DLList is actually a null entry, so the first element is actually the 2n'd entry

template<class T>
int ACE_Double_Linked_List_Iterator_Base< T >::go_tail ( void   )  [inline, protected]

Move to the last element of the list. Returns 0 if the list is empty, else 1.

template<class T>
T * ACE_Double_Linked_List_Iterator_Base< T >::not_done ( void   )  const [inline, protected]

Check if we reach the end of the list. Can also be used to get the *current* element in the list. Return the address of the current item if there are still elements left , 0 if we run out of element.

template<class T>
T * ACE_Double_Linked_List_Iterator_Base< T >::do_advance ( void   )  [inline, protected]

Advance to the next element in the list. Return the address of the next element if there are more, 0 otherwise.

template<class T>
T * ACE_Double_Linked_List_Iterator_Base< T >::do_retreat ( void   )  [inline, protected]

Retreat to the previous element in the list. Return the address of the previous element if there are more, 0 otherwise.

template<class T>
void ACE_Double_Linked_List_Iterator_Base< T >::dump_i ( void   )  const [inline, protected]

Dump the state of an object.


Member Data Documentation

template<class T>
T* ACE_Double_Linked_List_Iterator_Base< T >::current_ [protected]

Remember where we are.

template<class T>
const ACE_Double_Linked_List<T>* ACE_Double_Linked_List_Iterator_Base< T >::dllist_ [protected]


The documentation for this class was generated from the following files:
