ACE_Control_Block Class Reference

This information is stored in memory allocated by the <Memory_Pool>. More...

#include <Malloc.h>

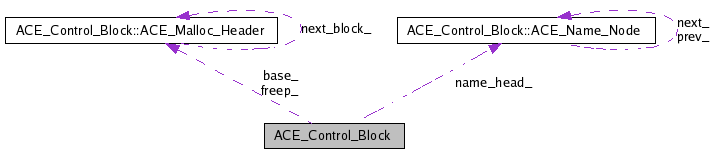

Collaboration diagram for ACE_Control_Block:

Collaboration graph
[legend]

List of all members.

Public Member Functions

void dump (void) const
 Dump the state of the object.

Static Public Member Functions

static void print_alignment_info (void)
 Print out a bunch of size info for debugging.

Public Attributes

int ref_counter_
 Reference counter.
ACE_Name_Nodename_head_
 Head of the linked list of Name Nodes.
ACE_Malloc_Headerfreep_
 Current head of the freelist.
char lock_name_ [MAXNAMELEN]
 Name of lock thats ensures mutual exclusion.
char align_ [(ACE_CONTROL_BLOCK_ALIGN_BYTES)?ACE_CONTROL_BLOCK_ALIGN_BYTES:ACE_MALLOC_ALIGN]
ACE_Malloc_Header base_
 Dummy node used to anchor the freelist. This needs to come last...

Classes

class  ACE_Malloc_Header
 This is the control block header. It's used by <ACE_Malloc> to keep track of each chunk of data when it's in the free list or in use. More...
class  ACE_Name_Node
 This class supports "named memory regions" within ACE_Malloc. More...


Detailed Description

This information is stored in memory allocated by the <Memory_Pool>.

This class defines the "old" control block class for use in ACE_Malloc_T. This control block implementation is considerable more efficient than the "position independent" one below (ACE_PI_Control_Block) but if you are going to use it to construct a ACE_Malloc_T and access the memory from several different processes, you must "map" the underlying memory pool to the same address.


Member Function Documentation

void ACE_Control_Block::print_alignment_info ( void   )  [static]

Print out a bunch of size info for debugging.

void ACE_Control_Block::dump ( void   )  const

Dump the state of the object.


Member Data Documentation

Reference counter.

Head of the linked list of Name Nodes.

Current head of the freelist.

Name of lock thats ensures mutual exclusion.

char ACE_Control_Block::align_[(ACE_CONTROL_BLOCK_ALIGN_BYTES)?ACE_CONTROL_BLOCK_ALIGN_BYTES:ACE_MALLOC_ALIGN]

Dummy node used to anchor the freelist. This needs to come last...


The documentation for this class was generated from the following files:
