ACE_Command_Callback< RECEIVER, ACTION > Class Template Reference

Defines a class template that allows us to invoke a GOF command style callback to an object without knowing anything about the object except its type. More...

#include <Functor_T.h>

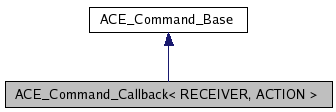

Inheritance diagram for ACE_Command_Callback< RECEIVER, ACTION >:

Inheritance graph
[legend]

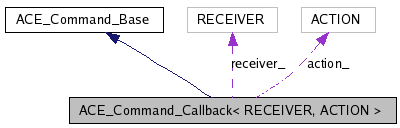

Collaboration diagram for ACE_Command_Callback< RECEIVER, ACTION >:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_Command_Callback (RECEIVER &recvr, ACTION action)
virtual ~ACE_Command_Callback (void)
 Virtual destructor.
virtual int execute (void *arg=0)
 Invokes the method <action_> from the object <receiver_>.

Private Attributes

RECEIVER & receiver_
 Object where the method resides.
ACTION action_
 Method that is going to be invoked.


Detailed Description

template<class RECEIVER, class ACTION>
class ACE_Command_Callback< RECEIVER, ACTION >

Defines a class template that allows us to invoke a GOF command style callback to an object without knowing anything about the object except its type.

This class declares an interface to execute operations, binding a RECEIVER object with an ACTION. The RECEIVER knows how to implement the operation. A class can invoke operations without knowing anything about it, or how it was implemented.


Constructor & Destructor Documentation

template<class RECEIVER, class ACTION>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Command_Callback< RECEIVER, ACTION >::ACE_Command_Callback ( RECEIVER &  recvr,
ACTION  action
) [inline]

Constructor: sets the <receiver_> of the Command to recvr, and the <action_> of the Command to <action>.

template<class RECEIVER, class ACTION>
ACE_Command_Callback< RECEIVER, ACTION >::~ACE_Command_Callback ( void   )  [inline, virtual]

Virtual destructor.


Member Function Documentation

template<class RECEIVER, class ACTION>
int ACE_Command_Callback< RECEIVER, ACTION >::execute ( void *  arg = 0  )  [inline, virtual]

Invokes the method <action_> from the object <receiver_>.

Implements ACE_Command_Base.


Member Data Documentation

template<class RECEIVER, class ACTION>
RECEIVER& ACE_Command_Callback< RECEIVER, ACTION >::receiver_ [private]

Object where the method resides.

template<class RECEIVER, class ACTION>
ACTION ACE_Command_Callback< RECEIVER, ACTION >::action_ [private]

Method that is going to be invoked.


The documentation for this class was generated from the following files:
