TAO_Notify_Constraint_Visitor Class Reference

#include <Notify_Constraint_Visitors.h>

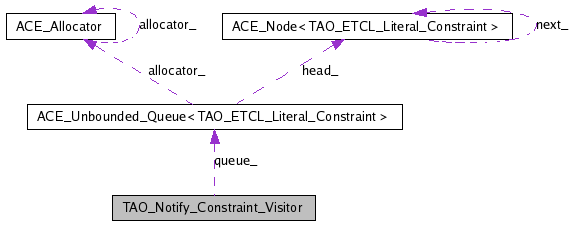

Collaboration diagram for TAO_Notify_Constraint_Visitor:

List of all members.

Public Member Functions

TAO_Notify_Constraint_Visitor (void)

Constructor.

int bind_structured_event (const CosNotification::StructuredEvent &s_event)

Put the event data into our hash map.

CORBA::Boolean evaluate_constraint (TAO_ETCL_Constraint *root)

int visit_literal (TAO_ETCL_Literal_Constraint *)

int visit_identifier (TAO_ETCL_Identifier *)

int visit_union_value (TAO_ETCL_Union_Value *)

int visit_union_pos (TAO_ETCL_Union_Pos *)

int visit_component_pos (TAO_ETCL_Component_Pos *)

int visit_component_assoc (TAO_ETCL_Component_Assoc *)

int visit_component_array (TAO_ETCL_Component_Array *)

int visit_special (TAO_ETCL_Special *)

int visit_component (TAO_ETCL_Component *)

int visit_dot (TAO_ETCL_Dot *)

int visit_eval (TAO_ETCL_Eval *)

int visit_default (TAO_ETCL_Default *)

int visit_exist (TAO_ETCL_Exist *)

int visit_unary_expr (TAO_ETCL_Unary_Expr *)

int visit_binary_expr (TAO_ETCL_Binary_Expr *)

int visit_preference (TAO_ETCL_Preference *)

Protected Types

enum structured_event_field {
  FILTERABLE_DATA, HEADER, FIXED_HEADER, EVENT_TYPE,
  DOMAIN_NAME, TYPE_NAME, EVENT_NAME, VARIABLE_HEADER,
  REMAINDER_OF_BODY, EMPTY
}

Protected Member Functions

int visit_or (TAO_ETCL_Binary_Expr *)

int visit_and (TAO_ETCL_Binary_Expr *)

int visit_twiddle (TAO_ETCL_Binary_Expr *)

int visit_in (TAO_ETCL_Binary_Expr *)

int visit_binary_op (TAO_ETCL_Binary_Expr *binary_expr, int op_type)

CORBA::Boolean sequence_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean array_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean struct_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean union_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean any_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean simple_type_match (int expr_type, CORBA::TCKind tc_kind)

Protected Attributes

structured_event_field implicit_id_

Storage for the type of implicit id the component has (if any).

ACE_Hash_Map_Manager
< ACE_CString,
structured_event_field,
ACE_Null_Mutex > implicit_ids_

ACE_Hash_Map_Manager
< ACE_CString, CORBA::Any,
ACE_Null_Mutex > filterable_data_

Used to lookup names and values in the event's 'filterable_data' field.

ACE_Hash_Map_Manager
< ACE_CString, CORBA::Any,
ACE_Null_Mutex > variable_header_

Used to lookup names and values in the event's 'variable_header' field.

CORBA::String_var domain_name_

CORBA::String_var type_name_

CORBA::String_var event_name_

CORBA::Any remainder_of_body_

Storage for the structured_event's 'remainder_of_body' field.

ACE_Unbounded_Queue
< TAO_ETCL_Literal_Constraint > queue_

The result of a non_boolean operation.

CORBA::Any_var current_value_

CORBA::String_var current_name_

Static Protected Attributes

static const size_t implicit_ids_size_ = 27

static const size_t filterable_data_size_ = 31

static const size_t variable_header_size_ = 31

Member Enumeration Documentation

enum TAO_Notify_Constraint_Visitor::structured_event_field [protected]

Enumerator:

FILTERABLE_DATA
HEADER
FIXED_HEADER
EVENT_TYPE
DOMAIN_NAME
TYPE_NAME
EVENT_NAME
VARIABLE_HEADER
REMAINDER_OF_BODY
EMPTY

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Constraint_Visitor::TAO_Notify_Constraint_Visitor ( void )

Constructor.

Member Function Documentation

int TAO_Notify_Constraint_Visitor::bind_structured_event ( const CosNotification::StructuredEvent & s_event )

Put the event data into our hash map.

CORBA::Boolean TAO_Notify_Constraint_Visitor::evaluate_constraint ( TAO_ETCL_Constraint * root )

Returns 1 if the event satisfies the constraint represented by the the expression tree rooted at <root>, 0 if it doesn't. If an error occurs during the process, the traversal automatically fails.

int TAO_Notify_Constraint_Visitor::visit_literal ( TAO_ETCL_Literal_Constraint * literal )

int TAO_Notify_Constraint_Visitor::visit_identifier ( TAO_ETCL_Identifier * ident )

int TAO_Notify_Constraint_Visitor::visit_union_value ( TAO_ETCL_Union_Value * union_value )

int TAO_Notify_Constraint_Visitor::visit_union_pos ( TAO_ETCL_Union_Pos * union_pos )

int TAO_Notify_Constraint_Visitor::visit_component_pos ( TAO_ETCL_Component_Pos * pos )

int TAO_Notify_Constraint_Visitor::visit_component_assoc ( TAO_ETCL_Component_Assoc * assoc )

int TAO_Notify_Constraint_Visitor::visit_component_array ( TAO_ETCL_Component_Array * array )

int TAO_Notify_Constraint_Visitor::visit_special ( TAO_ETCL_Special * special )

int TAO_Notify_Constraint_Visitor::visit_component ( TAO_ETCL_Component * component )

int TAO_Notify_Constraint_Visitor::visit_dot ( TAO_ETCL_Dot * dot )

int TAO_Notify_Constraint_Visitor::visit_eval ( TAO_ETCL_Eval * eval )

int TAO_Notify_Constraint_Visitor::visit_default ( TAO_ETCL_Default * def )

int TAO_Notify_Constraint_Visitor::visit_exist ( TAO_ETCL_Exist * exist )

int TAO_Notify_Constraint_Visitor::visit_unary_expr ( TAO_ETCL_Unary_Expr * unary_expr )

int TAO_Notify_Constraint_Visitor::visit_binary_expr ( TAO_ETCL_Binary_Expr * binary_expr )

int TAO_Notify_Constraint_Visitor::visit_preference ( TAO_ETCL_Preference * )

int TAO_Notify_Constraint_Visitor::visit_or ( TAO_ETCL_Binary_Expr * binary ) [protected]

int TAO_Notify_Constraint_Visitor::visit_and ( TAO_ETCL_Binary_Expr * binary ) [protected]

int TAO_Notify_Constraint_Visitor::visit_twiddle ( TAO_ETCL_Binary_Expr * binary ) [protected]

int TAO_Notify_Constraint_Visitor::visit_in ( TAO_ETCL_Binary_Expr * binary ) [protected]

int TAO_Notify_Constraint_Visitor::visit_binary_op	(	TAO_ETCL_Binary_Expr *	binary_expr,
		int	op_type
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::sequence_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::array_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::struct_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::union_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::any_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item
	)			`[protected]`

CORBA::Boolean TAO_Notify_Constraint_Visitor::simple_type_match	(	int	expr_type,
		CORBA::TCKind	tc_kind
	)			`[protected]`

Member Data Documentation

structured_event_field TAO_Notify_Constraint_Visitor::implicit_id_ [protected]

Storage for the type of implicit id the component has (if any).

const size_t TAO_Notify_Constraint_Visitor::implicit_ids_size_ = 27 [static, protected]

Size of implicit_ids_ hash map.

Note:: A fixed set of 9 keys are stored in this map. In the absence of a minimal perfect hash, ACE's default hash_pjw() and a hash size of 27 ensures each element is hashed to a unique bucket. TODO: define inline once VC6 support is deprecated.

ACE_Hash_Map_Manager<ACE_CString, structured_event_field, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::implicit_ids_ [protected]

Lookup table for the implicit ids, to avoid string comparisons in derived visitors.

const size_t TAO_Notify_Constraint_Visitor::filterable_data_size_ = 31 [static, protected]

Size of filterable_data_ hash map. TODO: define inline once VC6 support is deprecated.

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::filterable_data_ [protected]

Used to lookup names and values in the event's 'filterable_data' field.

const size_t TAO_Notify_Constraint_Visitor::variable_header_size_ = 31 [static, protected]

Size of variable_header_ hash map. TODO: define inline once VC6 support is deprecated.

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::variable_header_ [protected]

Used to lookup names and values in the event's 'variable_header' field.

CORBA::String_var TAO_Notify_Constraint_Visitor::domain_name_ [protected]

Storage for string names under the structured event's 'fixed_header' field.

CORBA::String_var TAO_Notify_Constraint_Visitor::type_name_ [protected]

CORBA::String_var TAO_Notify_Constraint_Visitor::event_name_ [protected]

CORBA::Any TAO_Notify_Constraint_Visitor::remainder_of_body_ [protected]

Storage for the structured_event's 'remainder_of_body' field.

ACE_Unbounded_Queue<TAO_ETCL_Literal_Constraint> TAO_Notify_Constraint_Visitor::queue_ [protected]

The result of a non_boolean operation.

CORBA::Any_var TAO_Notify_Constraint_Visitor::current_value_ [protected]

Holder for a value found in the event fields filterable_data, variable_header or remainder_of_body.

CORBA::String_var TAO_Notify_Constraint_Visitor::current_name_ [protected]

Holder for a string name in the event fields fixed_header, variable_header, or filterable_data.

The documentation for this class was generated from the following files:

Generated on Thu Feb 21 03:58:26 2008 for TAO_CosNotification by

1.5.3-6
