#include <NodeApplicationManager_Impl.h>
Public Member Functions | |
| NodeApplicationManager_Impl_Base (CORBA::ORB_ptr o, PortableServer::POA_ptr p) | |
| Constructor. | |
| virtual Deployment::Application_ptr | startLaunch (const Deployment::Properties &configProperty, Deployment::Connections_out providedReference, CORBA::Boolean start) |
| virtual void | destroyApplication (Deployment::Application_ptr) |
| virtual Deployment::Application_ptr | perform_redeployment (const Deployment::Properties &configProperty, Deployment::Connections_out providedReference, CORBA::Boolean add_or_remove, CORBA::Boolean start) |
| virtual void | reset_plan (const ::Deployment::DeploymentPlan &plan) |
| virtual void | set_shared_components (const Deployment::ComponentPlans &shared) |
| virtual PortableServer::ObjectId | init (const char *nodeapp_location, const char *nodeapp_options, const CORBA::ULong delay, const Deployment::DeploymentPlan &plan, const PortableServer::POA_ptr callback_poa, NodeManager_Impl_Base *nm)=0 |
| Deployment::NodeApplicationManager_ptr | get_nodeapp_manager (void) |
| |
| virtual ::CORBA::Long | set_priority (const char *cid, const ::Deployment::Sched_Params ¶ms) |
| Set the priority of the NodeApplication process which this NAM manages. | |
Protected Types | |
| typedef ACE_Hash_Map_Manager_Ex < ACE_CString, Components::CCMObject_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex > | CCMComponent_Map |
| A map of the component created on this node. | |
| typedef CCMComponent_Map::iterator | Component_Iterator |
Protected Member Functions | |
| virtual | ~NodeApplicationManager_Impl_Base (void) |
| Destructor. | |
| virtual void | add_new_components (void) |
| Add new components. | |
| virtual void | remove_existing_components (void) |
| Remove existing components. | |
| virtual bool | is_to_be_removed (const char *name) |
| virtual Deployment::NodeApplication_ptr | create_node_application (const ACE_CString &options)=0 |
| Internal help function to create new NodeApplicationProcess. | |
| virtual Deployment::Connections * | create_connections () |
| Helper function to get the connection. | |
| void | parse_config_value (ACE_CString &str) |
| bool | is_shared_component (ACE_CString &name) |
| bool | is_external_component (ACE_CString &name) |
Protected Attributes | |
| ACE_CString | nodeapp_path_ |
| location of the Nodeapplication | |
| CORBA::ORB_var | orb_ |
| Keep a pointer to the managing ORB serving this servant. | |
| PortableServer::POA_var | poa_ |
| Keep a pointer to the managing POA. | |
| NodeManager_Impl_Base * | node_manager_ |
| Deployment::NodeApplicationManager_var | objref_ |
| ObjectRef of ourself which will be needed by the callback. | |
| PortableServer::POA_var | callback_poa_ |
| Child poa that uses active object map. | |
| Deployment::NodeApplication_var | nodeapp_ |
| Deployment::DeploymentPlan | plan_ |
| CORBA::ULong | spawn_delay_ |
| CORBA::String_var | nodeapp_command_op_ |
| Extracted commandline options to pass to the NodeApplication. | |
| Deployment::ComponentPlans | shared_components_ |
| A list of components shared across deployment plans. | |
| Deployment::ComponentPlans | external_components_ |
| A list of components that are "external" to this plan. | |
| CCMComponent_Map | component_map_ |
| TAO_SYNCH_MUTEX | lock_ |
| Synchronize access to the object set. | |
| ACE_Process_Manager | node_app_process_manager_ |
| The Process Manager for this NodeApplicationManager. | |
| pid_t | process_id_ |
| ACE_Condition< TAO_SYNCH_MUTEX > | waitCond_ |
| For synchronization between multiple threads. | |
| TAO_SYNCH_MUTEX | mutex_ |
typedef ACE_Hash_Map_Manager_Ex<ACE_CString, Components::CCMObject_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::NodeApplicationManager_Impl_Base::CCMComponent_Map [protected] |
A map of the component created on this node.
typedef CCMComponent_Map::iterator CIAO::NodeApplicationManager_Impl_Base::Component_Iterator [protected] |
| ACE_INLINE CIAO::NodeApplicationManager_Impl_Base::NodeApplicationManager_Impl_Base | ( | CORBA::ORB_ptr | o, | |
| PortableServer::POA_ptr | p | |||
| ) |
Constructor.
| CIAO::NodeApplicationManager_Impl_Base::~NodeApplicationManager_Impl_Base | ( | void | ) | [protected, virtual] |
Destructor.
| Deployment::Application_ptr CIAO::NodeApplicationManager_Impl_Base::startLaunch | ( | const Deployment::Properties & | configProperty, | |
| Deployment::Connections_out | providedReference, | |||
| CORBA::Boolean | start | |||
| ) | [virtual] |
The return type is NodeApplication_ptr actually. For "external/shared" components of this child plan, they are not actaully installed, however, the object references of the ports of these external components are returned through <providedReference>.
1. First Map properties to TAO/CIAO specific property/configurations 2. Necessary property checking (needed?) 3. Call create_nade_application to spawn new process. 4. Initialize the NodeApplication. 5. get the provided connection endpoints back and return them.
| void CIAO::NodeApplicationManager_Impl_Base::destroyApplication | ( | Deployment::Application_ptr | app | ) | [virtual] |
| Deployment::Application_ptr CIAO::NodeApplicationManager_Impl_Base::perform_redeployment | ( | const Deployment::Properties & | configProperty, | |
| Deployment::Connections_out | providedReference, | |||
| CORBA::Boolean | add_or_remove, | |||
| CORBA::Boolean | start | |||
| ) | [virtual] |
| ACE_INLINE void CIAO::NodeApplicationManager_Impl_Base::reset_plan | ( | const ::Deployment::DeploymentPlan & | plan | ) | [virtual] |
| void CIAO::NodeApplicationManager_Impl_Base::set_shared_components | ( | const Deployment::ComponentPlans & | shared | ) | [virtual] |
| virtual PortableServer::ObjectId CIAO::NodeApplicationManager_Impl_Base::init | ( | const char * | nodeapp_location, | |
| const char * | nodeapp_options, | |||
| const CORBA::ULong | delay, | |||
| const Deployment::DeploymentPlan & | plan, | |||
| const PortableServer::POA_ptr | callback_poa, | |||
| NodeManager_Impl_Base * | nm | |||
| ) | [pure virtual] |
A factory operation to create NodeApplicationManager interface, and return the object reference. Initialize the NodeApplicationManager. The current implementation of CIAO_NodeApplicationManager can only activate CIAO's own NodeApplication processes. You should specify the location (pathname) of the NodeApplication and the delay. CIAO_NodeApplicationManager should wait (in second) for NodeApplication to call back.
| nodeapp_location | A null-termiated char * string pointing to the pathname of a NodeApplication executable. | |
| nodeapp_options | A null-terminated char * string containing command line options to be passed to the NodeApplication. | |
| delay | instructs how long (in second) a CIAO_NodeApplicationManager should wait for a newly spawned NodeApplication to pass back its IOR. | |
| plan | has all the information needed for the NodeAppManager to construct the application locally. Note, this includes the properties of the NodeApplication. For example, ORB config options etc. | |
| callback_poa | contains child poa created for the callback interface. |

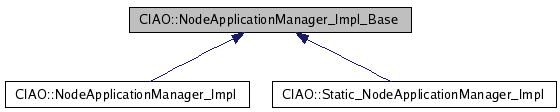

Implemented in CIAO::NodeApplicationManager_Impl, and CIAO::Static_NodeApplicationManager_Impl.
| ACE_INLINE Deployment::NodeApplicationManager_ptr CIAO::NodeApplicationManager_Impl_Base::get_nodeapp_manager | ( | void | ) |
| CORBA::Long CIAO::NodeApplicationManager_Impl_Base::set_priority | ( | const char * | cid, | |
| const ::Deployment::Sched_Params & | params | |||
| ) |
Set the priority of the NodeApplication process which this NAM manages.
| void CIAO::NodeApplicationManager_Impl_Base::add_new_components | ( | void | ) | [protected, virtual] |
Add new components.
| void CIAO::NodeApplicationManager_Impl_Base::remove_existing_components | ( | void | ) | [protected, virtual] |
Remove existing components.
| bool CIAO::NodeApplicationManager_Impl_Base::is_to_be_removed | ( | const char * | name | ) | [protected, virtual] |
Determine whether a component is absent in the new_plan Return true if absent
| virtual Deployment::NodeApplication_ptr CIAO::NodeApplicationManager_Impl_Base::create_node_application | ( | const ACE_CString & | options | ) | [protected, pure virtual] |
Internal help function to create new NodeApplicationProcess.
Implemented in CIAO::NodeApplicationManager_Impl, and CIAO::Static_NodeApplicationManager_Impl.
| Deployment::Connections * CIAO::NodeApplicationManager_Impl_Base::create_connections | ( | ) | [protected, virtual] |
Helper function to get the connection.
| ACE_INLINE void CIAO::NodeApplicationManager_Impl_Base::parse_config_value | ( | ACE_CString & | str | ) | [protected] |
Find the configurations in the plan and prepare them to pass to the NodeApplication, from command line probably.
| bool CIAO::NodeApplicationManager_Impl_Base::is_shared_component | ( | ACE_CString & | name | ) | [protected] |
Helper function to check wheather a component instance is in the "shared components list".
| bool CIAO::NodeApplicationManager_Impl_Base::is_external_component | ( | ACE_CString & | name | ) | [protected] |
Helper function to check wheather a component instance is in the "shared components list".
location of the Nodeapplication
Keep a pointer to the managing ORB serving this servant.
Keep a pointer to the managing POA.
Pointer to the NodeManager_Impl servant object We could do this because NodeManager and NodeApplicationManager are always collocated in the same process, so we don't have to pass CORBA object reference back and forth.
Deployment::NodeApplicationManager_var CIAO::NodeApplicationManager_Impl_Base::objref_ [protected] |
ObjectRef of ourself which will be needed by the callback.
Child poa that uses active object map.
Deployment::NodeApplication_var CIAO::NodeApplicationManager_Impl_Base::nodeapp_ [protected] |
Cache a object reference of the underlying NodeApplication Since I have decided to have only 1 NA in NAM so no map is needed.
Cached plan (This should be the part of the whole plan local to this node) The plan will be initialized when init is called.
Specify the time in second NodeApplicationManager will wait for a child NodeApplication to callback. Default is 5 second.
Extracted commandline options to pass to the NodeApplication.
A list of components shared across deployment plans.
A list of components that are "external" to this plan.
TAO_SYNCH_MUTEX CIAO::NodeApplicationManager_Impl_Base::lock_ [protected] |
Synchronize access to the object set.
The Process Manager for this NodeApplicationManager.
The process id of the NA associated with the NAM, Each NAM will only have one NA associated with it, so we have only one process associated with it.
ACE_Condition<TAO_SYNCH_MUTEX> CIAO::NodeApplicationManager_Impl_Base::waitCond_ [protected] |
For synchronization between multiple threads.
TAO_SYNCH_MUTEX CIAO::NodeApplicationManager_Impl_Base::mutex_ [protected] |
