OS_QoS.h File Reference

Contains OS specific data structures for QoS networking. More...

#include "ace/os_include/sys/os_uio.h"
#include "ace/OS_NS_stropts.h"

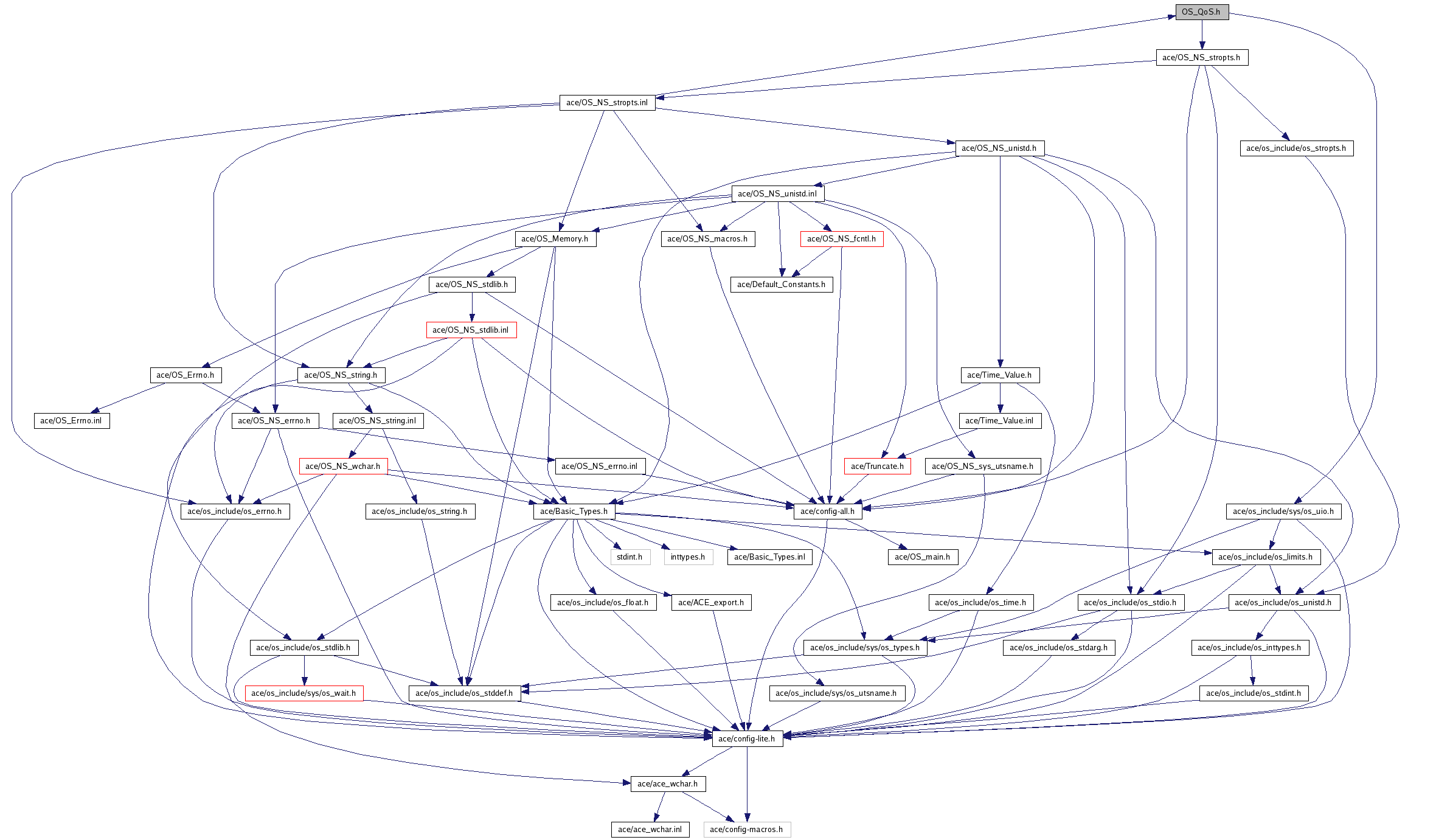

Include dependency graph for OS_QoS.h:

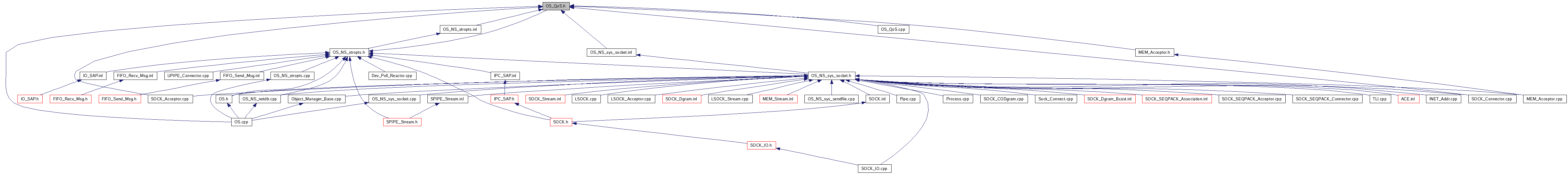

This graph shows which files directly or indirectly include this file:


Classes

class  ACE_Flow_Spec
 Wrapper class that defines the flow spec QoS information, which is used by IntServ (RSVP) and DiffServ. More...
class  ACE_QoS
 Wrapper class that holds the sender and receiver flow spec information, which is used by IntServ (RSVP) and DiffServ. More...
class  ACE_QoS_Params
 Wrapper class that simplifies the information passed to the QoS enabled <ACE_OS::connect> and <ACE_OS::join_leaf> methods. More...
class  ACE_Accept_QoS_Params
 Wrapper class that simplifies the information passed to the QoS enabled <ACE_OS::accept> method. More...

Defines

#define ACE_OVERLAPPED_SOCKET_FLAG   0
#define ACE_XP1_QOS_SUPPORTED   0x00002000
#define ACE_XP1_SUPPORT_MULTIPOINT   0x00000400
#define ACE_BASEERR   10000
#define ACE_ENOBUFS   (ACE_BASEERR+55)
#define ACE_FROM_PROTOCOL_INFO   (-1)
#define ACE_FLAG_MULTIPOINT_C_ROOT   0x02
#define ACE_FLAG_MULTIPOINT_C_LEAF   0x04
#define ACE_FLAG_MULTIPOINT_D_ROOT   0x08
#define ACE_FLAG_MULTIPOINT_D_LEAF   0x10
#define ACE_QOS_NOT_SPECIFIED   0xFFFFFFFF
#define ACE_SERVICETYPE_NOTRAFFIC   0x00000000
#define ACE_SERVICETYPE_CONTROLLEDLOAD   0x00000001
#define ACE_SERVICETYPE_GUARANTEED   0x00000003
#define ACE_JL_SENDER_ONLY   0x01
#define ACE_JL_BOTH   0x04
#define ACE_SIO_GET_QOS   (0x40000000 | 0x08000000 | 7)
#define ACE_SIO_MULTIPOINT_LOOPBACK   (0x08000000 | 9)
#define ACE_SIO_MULTICAST_SCOPE   (0x08000000 | 10)
#define ACE_SIO_SET_QOS   (0x08000000 | 11)

Typedefs

typedef int(* ACE_QOS_CONDITION_FUNC )(iovec *caller_id, iovec *caller_data, ACE_QoS *socket_qos, ACE_QoS *group_socket_qos, iovec *callee_id, iovec *callee_data, ACE_SOCK_GROUP *g, unsigned long callbackdata)

Variables

ACE_BEGIN_VERSIONED_NAMESPACE_DECL
typedef unsigned long
ACE_SERVICE_TYPE

Detailed Description

Contains OS specific data structures for QoS networking.

Id
OS_QoS.h 79825 2007-10-22 19:04:34Z johnnyw

Author:
Craig Rodrigues <crodrigu@bbn.com>

Define Documentation

#define ACE_BASEERR   10000

#define ACE_ENOBUFS   (ACE_BASEERR+55)

#define ACE_FLAG_MULTIPOINT_C_LEAF   0x04

#define ACE_FLAG_MULTIPOINT_C_ROOT   0x02

#define ACE_FLAG_MULTIPOINT_D_LEAF   0x10

#define ACE_FLAG_MULTIPOINT_D_ROOT   0x08

#define ACE_FROM_PROTOCOL_INFO   (-1)

#define ACE_JL_BOTH   0x04

#define ACE_JL_SENDER_ONLY   0x01

#define ACE_OVERLAPPED_SOCKET_FLAG   0

#define ACE_QOS_NOT_SPECIFIED   0xFFFFFFFF

#define ACE_SERVICETYPE_CONTROLLEDLOAD   0x00000001

#define ACE_SERVICETYPE_GUARANTEED   0x00000003

#define ACE_SERVICETYPE_NOTRAFFIC   0x00000000

#define ACE_SIO_GET_QOS   (0x40000000 | 0x08000000 | 7)

#define ACE_SIO_MULTICAST_SCOPE   (0x08000000 | 10)

#define ACE_SIO_MULTIPOINT_LOOPBACK   (0x08000000 | 9)

#define ACE_SIO_SET_QOS   (0x08000000 | 11)

#define ACE_XP1_QOS_SUPPORTED   0x00002000

#define ACE_XP1_SUPPORT_MULTIPOINT   0x00000400


Typedef Documentation

typedef int(* ACE_QOS_CONDITION_FUNC)(iovec *caller_id, iovec *caller_data, ACE_QoS *socket_qos, ACE_QoS *group_socket_qos, iovec *callee_id, iovec *callee_data, ACE_SOCK_GROUP *g, unsigned long callbackdata)


Variable Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL typedef unsigned long ACE_SERVICE_TYPE
