TAO_ECG_CDR_Message_Receiver Class Reference

Receives UDP and Multicast messages. More...

#include <ECG_CDR_Message_Receiver.h>

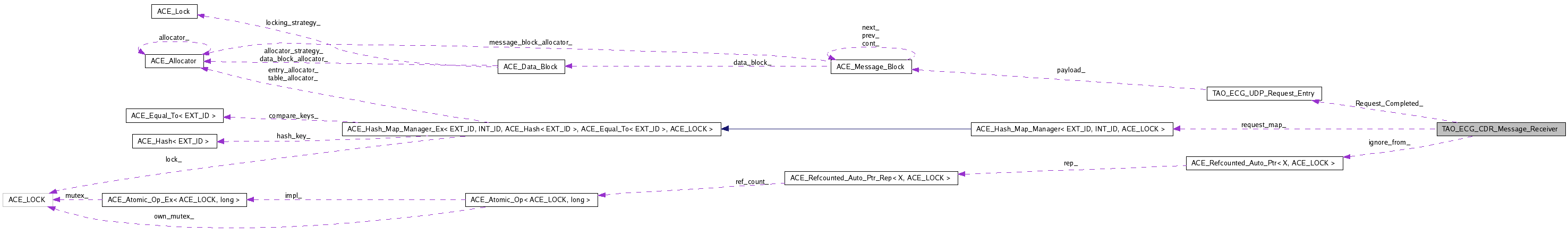

Collaboration diagram for TAO_ECG_CDR_Message_Receiver:

[legend]

List of all members.

Public Member Functions
int	handle_input (ACE_SOCK_Dgram &dgram, TAO_ECG_CDR_Processor *cdr_processor)
	TAO_ECG_CDR_Message_Receiver (CORBA::Boolean check_crc)
	Initialization and termination methods.
	~TAO_ECG_CDR_Message_Receiver (void)
	Initialization and termination methods.
void	init (TAO_ECG_Refcounted_Endpoint ignore_from)
void	shutdown (void)
	Initialization and termination methods.
Static Public Attributes
static TAO_ECG_UDP_Request_Entry	Request_Completed_
Private Types
enum	{ ECG_DEFAULT_MAX_FRAGMENTED_REQUESTS = 1024, ECG_DEFAULT_FRAGMENTED_REQUESTS_MIN_PURGE_COUNT = 32 }
typedef ACE_Hash_Map_Manager < ACE_INET_Addr, Requests *, ACE_Null_Mutex >	Request_Map
Private Member Functions
int	mark_received (const ACE_INET_Addr &from, CORBA::ULong request_id)
int	process_fragment (const ACE_INET_Addr &from, const Mcast_Header &header, char *data_buf, TAO_ECG_CDR_Processor *cdr_processor)
Request_Map::ENTRY *	get_source_entry (const ACE_INET_Addr &from)
Private Attributes
TAO_ECG_Refcounted_Endpoint	ignore_from_
	Ignore any events coming from this IP address.
Request_Map	request_map_
size_t	max_requests_
	Serializes use of <request_map_>.
size_t	min_purge_count_
CORBA::Boolean	check_crc_
	Flag to indicate whether CRC should be computed and checked.
Classes
struct	Mcast_Header
	Helper for decoding, validating and storing mcast header. More...
class	Requests

---

Detailed Description

Receives UDP and Multicast messages.

Todo:

Update class documentation below.

5) Make status array size and purge_count configurable.

This class receives UDP and Multicast message fragments, assembles them (described in detail below), and passes complete messages in the form of cdr streams to the calling classes.

This class is used by various Gateway classes (Senders/Receivers) responsible for federating Event Channels with UDP/Mcast.

= REASSEMBLY Fragmentation is described in ECG_CDR_Message_Sender.h Whenever an incomplete fragment is received (one with fragment_count > 1) we allocate an entry for the message in an map indexed by (host,port,request_id). The entry contains the buffer, a bit vector to keep track of the fragments received so far, and a timeout counter. This timeout counter is set to 0 on each (new) fragment arrival, and incremented on a regular basis. If the counter reaches a maximum value the message is dropped. Once all the fragments have been received the message is sent up to the calling classes, and the memory reclaimed.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<ACE_INET_Addr, Requests*, ACE_Null_Mutex> TAO_ECG_CDR_Message_Receiver::Request_Map [private]

---

Member Enumeration Documentation

anonymous enum [private]

Enumerator:

ECG_DEFAULT_MAX_FRAGMENTED_REQUESTS
ECG_DEFAULT_FRAGMENTED_REQUESTS_MIN_PURGE_COUNT

---

Constructor & Destructor Documentation

TAO_ECG_CDR_Message_Receiver::TAO_ECG_CDR_Message_Receiver

(

CORBA::Boolean

check_crc

)

Initialization and termination methods.

TAO_ECG_CDR_Message_Receiver::~TAO_ECG_CDR_Message_Receiver

(

void

)

Initialization and termination methods.

---

Member Function Documentation

void TAO_ECG_CDR_Message_Receiver::init

(

TAO_ECG_Refcounted_Endpoint

ignore_from

)

Parameters:

ignore_from

Endpoint used to remove events generated by the same process.

void TAO_ECG_CDR_Message_Receiver::shutdown

(

void

)

Initialization and termination methods.

int TAO_ECG_CDR_Message_Receiver::handle_input	(	ACE_SOCK_Dgram &	dgram,
		TAO_ECG_CDR_Processor *	cdr_processor
	)

Main method: read the data from dgram and either pass ready data to cdr_processor or update the <request_map_> if the request is not yet complete. Returns 1 if data was read successfully and accepted by <cdr_processor> without errors. Returns 0 if there were no errors, but no data has been passed to <cdr_processor>, either due to request being incomplete (not all fragments received), or it being a duplicate. Returns -1 if there were errors.

int TAO_ECG_CDR_Message_Receiver::mark_received	(	const ACE_INET_Addr &	from,
		CORBA::ULong	request_id
	)			[private]

Returns 1 on success, 0 if <request_id> has already been received or is below current request range, and -1 on error.

int TAO_ECG_CDR_Message_Receiver::process_fragment	(	const ACE_INET_Addr &	from,
		const Mcast_Header &	header,
		char *	data_buf,
		TAO_ECG_CDR_Processor *	cdr_processor
	)			[private]

Returns 1 if complete request is received and <event> is populated, 0 if request has only partially been received or is a duplicate, and -1 on error.

TAO_ECG_CDR_Message_Receiver::Request_Map::ENTRY * TAO_ECG_CDR_Message_Receiver::get_source_entry

(

const ACE_INET_Addr &

from

)

[private]

---

Member Data Documentation

TAO_ECG_UDP_Request_Entry TAO_ECG_CDR_Message_Receiver::Request_Completed_ [static]

Represents any request that has been fully received and serviced, to simplify the internal logic.

TAO_ECG_Refcounted_Endpoint TAO_ECG_CDR_Message_Receiver::ignore_from_ [private]

Ignore any events coming from this IP address.

Request_Map TAO_ECG_CDR_Message_Receiver::request_map_ [private]

The map containing all the incoming requests which have been partially received.

size_t TAO_ECG_CDR_Message_Receiver::max_requests_ [private]

Serializes use of <request_map_>.

Size of a fragmented requests array, i.e., max number of partially received requests kept at any given time per source.

size_t TAO_ECG_CDR_Message_Receiver::min_purge_count_ [private]

Minimum number of requests purged from a fragmented requests array when the range of requests represented there needs to be shifted.

CORBA::Boolean TAO_ECG_CDR_Message_Receiver::check_crc_ [private]

Flag to indicate whether CRC should be computed and checked.

---

The documentation for this class was generated from the following files:

• ECG_CDR_Message_Receiver.h
• ECG_CDR_Message_Receiver.cpp

---
