TAO_EC_Type_Filter Class Reference

A filter based on event type/source. More...

#include <EC_Type_Filter.h>

Inheritance diagram for TAO_EC_Type_Filter:

Inheritance graph
[legend]

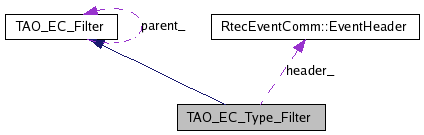

Collaboration diagram for TAO_EC_Type_Filter:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_EC_Type_Filter (const RtecEventComm::EventHeader &header)
 Constructor.
virtual int filter (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
virtual int filter_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
virtual void push (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
virtual void push_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
virtual void clear (void)
virtual CORBA::ULong max_event_size (void) const
 Returns the maximum size of the events pushed by this filter.
virtual int can_match (const RtecEventComm::EventHeader &header) const
virtual int add_dependencies (const RtecEventComm::EventHeader &header, const TAO_EC_QOS_Info &qos_info)

Private Member Functions

 TAO_EC_Type_Filter (const TAO_EC_Type_Filter &)
TAO_EC_Type_Filteroperator= (const TAO_EC_Type_Filter &)
int filter_set (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
 Filter an EventSet that contains more than one event.

Private Attributes

RtecEventComm::EventHeader header_
 Encapsulate the type/source that we must match.


Detailed Description

A filter based on event type/source.

This filter only accept events with a predefined type/source, both the source and the type can be wildcards.


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Type_Filter::TAO_EC_Type_Filter ( const RtecEventComm::EventHeader header  )

Constructor.

TAO_EC_Type_Filter::TAO_EC_Type_Filter ( const TAO_EC_Type_Filter  )  [private]


Member Function Documentation

int TAO_EC_Type_Filter::filter ( const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [virtual]

Filter this event, returns 1 if the event is accepted, 0 otherwise. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Attention:
There seems to be a disparity in interfaces: Supplier always push event sets of size 1 to the EC_ProxyPushSupplier, and EC_Filters do not implement handling of sets of more than 1 event. Then, why is this not enforced by the interface by having EC_ProxyPushSupplier take an event rather than a set?

Implements TAO_EC_Filter.

int TAO_EC_Type_Filter::filter_nocopy ( RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [virtual]

Implements TAO_EC_Filter.

void TAO_EC_Type_Filter::push ( const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [virtual]

This is called by the children when they accept an event and which to pass it up. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Implements TAO_EC_Filter.

void TAO_EC_Type_Filter::push_nocopy ( RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [virtual]

Implements TAO_EC_Filter.

void TAO_EC_Type_Filter::clear ( void   )  [virtual]

Clear any saved state, must reset and assume no events have been received.

Implements TAO_EC_Filter.

CORBA::ULong TAO_EC_Type_Filter::max_event_size ( void   )  const [virtual]

Returns the maximum size of the events pushed by this filter.

Implements TAO_EC_Filter.

int TAO_EC_Type_Filter::can_match ( const RtecEventComm::EventHeader header  )  const [virtual]

Returns 0 if an event with that header could never be accepted. This can used by the suppliers to filter out consumers that couldn't possibly be interested in their events. The rt_info and

Implements TAO_EC_Filter.

int TAO_EC_Type_Filter::add_dependencies ( const RtecEventComm::EventHeader header,
const TAO_EC_QOS_Info qos_info
) [virtual]

This is used for computing the scheduling dependencies:

Leaf filters check if the header could be matched, similar to the can_match() method; if it does they return 1, and 0 otherwise. Intermediate nodes always return 0.

This is used to build precise dependencies between the suppliers and the leaf of the filters that accept that event. Notice that only the nodes doing scheduling recurse through the list, so in configurations that do no require scheduling the recursion stops fairly soon.

Implements TAO_EC_Filter.

TAO_EC_Type_Filter& TAO_EC_Type_Filter::operator= ( const TAO_EC_Type_Filter  )  [private]

int TAO_EC_Type_Filter::filter_set ( const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
) [private]

Filter an EventSet that contains more than one event.


Member Data Documentation

RtecEventComm::EventHeader TAO_EC_Type_Filter::header_ [private]

Encapsulate the type/source that we must match.


The documentation for this class was generated from the following files:
Generated on Fri Dec 14 04:07:07 2007 for TAO_RTEvent by  doxygen 1.5.3-6
