TAO_LF_CH_Event Class Reference

Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_CH_Event.h>

Inheritance diagram for TAO_LF_CH_Event:

[legend]

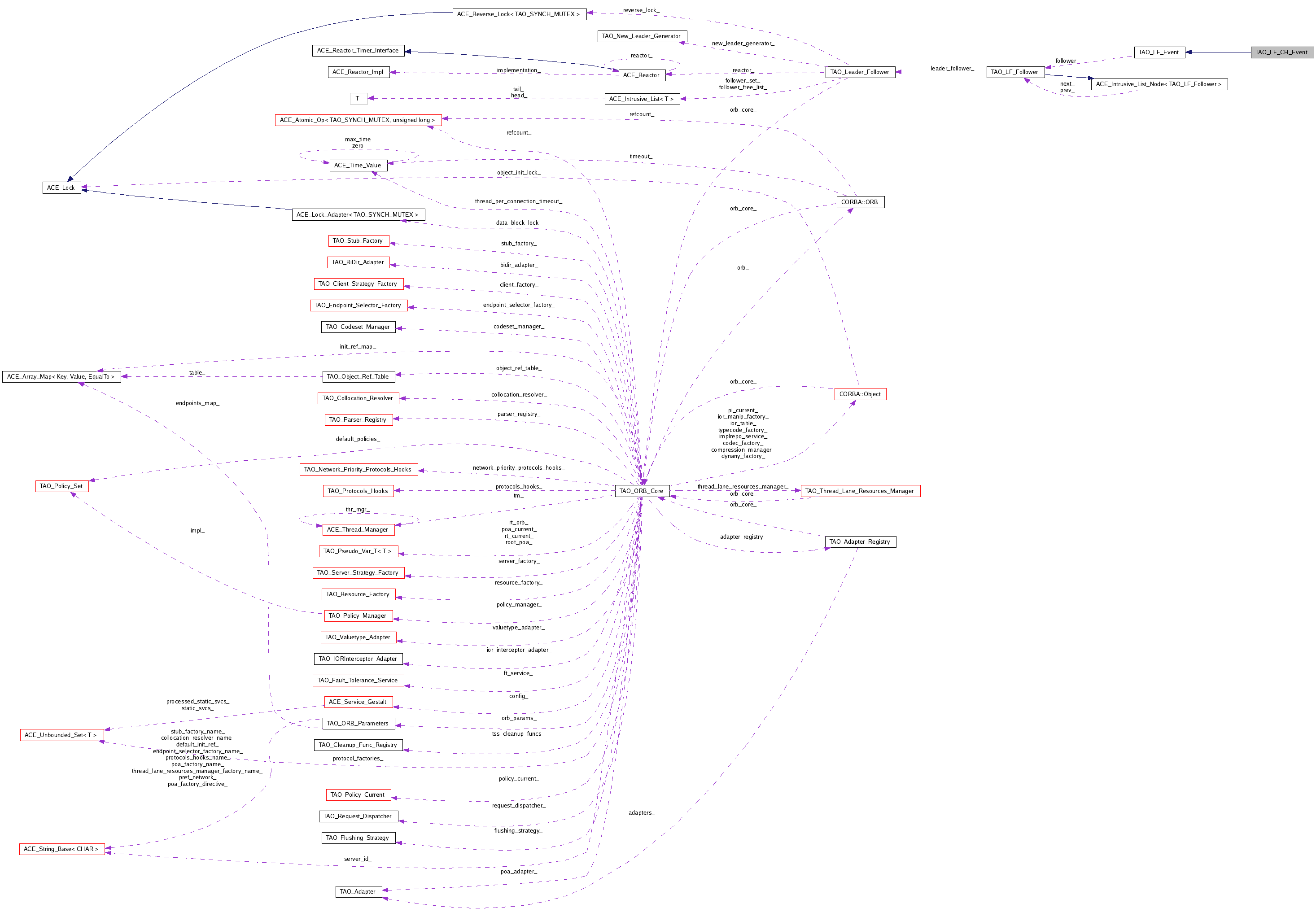

Collaboration diagram for TAO_LF_CH_Event:

[legend]

List of all members.

int	successful (void) const
int	error_detected (void) const
virtual int	is_state_final (void)
	Check whether we have reached the final state..
Public Member Functions
	TAO_LF_CH_Event (void)
	Constructor.
virtual	~TAO_LF_CH_Event (void)
	Destructor.
Private Member Functions
virtual void	state_changed_i (int new_state)
	Validate and change the state.
virtual void	set_state (int new_state)
	Set the state irrespective of anything.
Private Attributes
int	prev_state_
	The previous state that the LF_CH_Event was in.
Friends
class	TAO_LF_Multi_Event

---

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Concrete event types and manipulation class which is used for connection handling purposes.

---

Constructor & Destructor Documentation

TAO_LF_CH_Event::TAO_LF_CH_Event

(

void

)

Constructor.

TAO_LF_CH_Event::~TAO_LF_CH_Event

(

void

)

[virtual]

Destructor.

---

Member Function Documentation

int TAO_LF_CH_Event::successful

(

void

)

const [virtual]

Return 1 if the condition was satisfied successfully, 0 if it has not

Implements TAO_LF_Event.

int TAO_LF_CH_Event::error_detected

(

void

)

const [virtual]

Return 1 if an error was detected while waiting for the event

Implements TAO_LF_Event.

int TAO_LF_CH_Event::is_state_final

(

void

)

[protected, virtual]

Check whether we have reached the final state..

Implements TAO_LF_Event.

void TAO_LF_CH_Event::state_changed_i

(

int

new_state

)

[private, virtual]

Validate and change the state.

Implements TAO_LF_Event.

void TAO_LF_CH_Event::set_state

(

int

new_state

)

[private, virtual]

Set the state irrespective of anything.

Reimplemented from TAO_LF_Event.

---

Friends And Related Function Documentation

friend class TAO_LF_Multi_Event [friend]

The TAO_LF_Multi_Event class is another specialization of TAO_LF_Event, used for aggregating many connection handlers into a single event object.. It requires friendship so that it can check the is_state_final() flag on each of its contained connection handlers.

---

Member Data Documentation

int TAO_LF_CH_Event::prev_state_ [private]

The previous state that the LF_CH_Event was in.

---

The documentation for this class was generated from the following files:

• LF_CH_Event.h
• LF_CH_Event.cpp

---
