TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

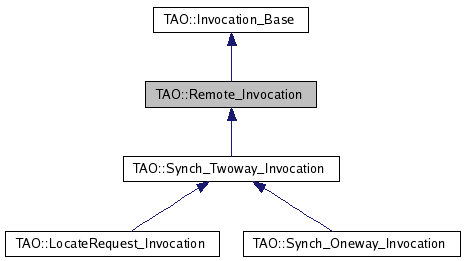

Inheritance diagram for TAO::Remote_Invocation:

Inheritance graph

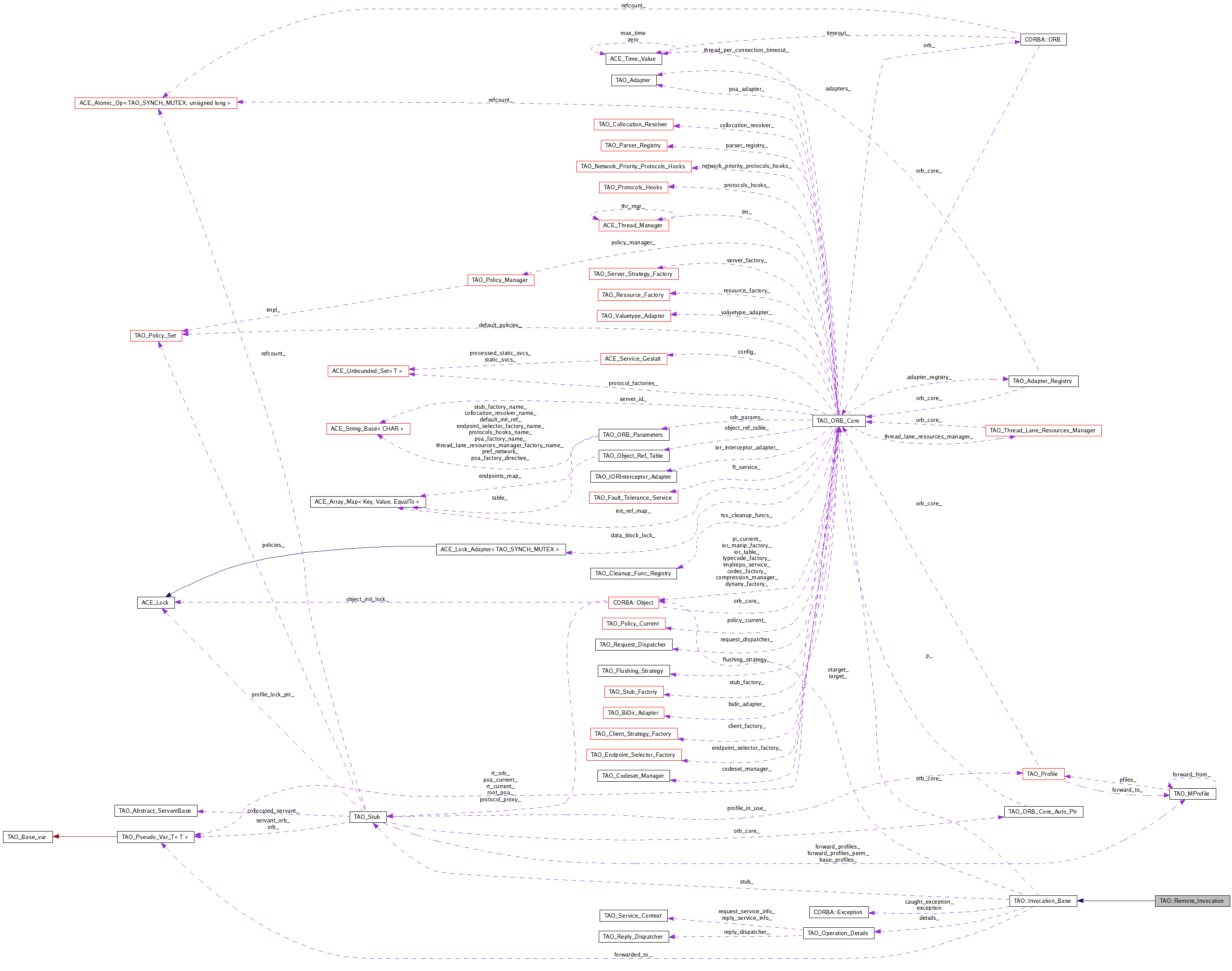

Collaboration diagram for TAO::Remote_Invocation:

Collaboration graph

List of all members.

Public Member Functions

 Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

Protected Member Functions

void init_target_spec (TAO_Target_Specification &spec)
 Initialize the spec.
void write_header (TAO_OutputCDR &out_stream)
 Write the GIOP header into the stream.
void marshal_data (TAO_OutputCDR &cdr)
 Marshal the arguments into the stream.
Invocation_Status send_message (TAO_OutputCDR &cdr, short message_semantics, ACE_Time_Value *max_wait_time)
 Write the message onto the socket.

Protected Attributes

 Our resolver.

Detailed Description

Base class for remote invocations.

This class encapulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.

Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation ( CORBA::Object_ptr  otarget,
Profile_Transport_Resolver resolver,
TAO_Operation_Details detail,
bool  response_expected

otarget The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver The profile and transport holder.
detail Pperation details of the invocation on the target
response_expected Flag to indicate whether the operation encapsulated by op returns a response or not.

Member Function Documentation

void TAO::Remote_Invocation::init_target_spec ( TAO_Target_Specification spec  )  [protected]

Initialize the spec.

Mega hack for RTCORBA start. I don't think that PortableInterceptor would work here esp. for RTCORBA. PI needs to be improved to help our cause.

Mega hack for RTCORBA END

void TAO::Remote_Invocation::write_header ( TAO_OutputCDR out_stream  )  [protected]

Write the GIOP header into the stream.

void TAO::Remote_Invocation::marshal_data ( TAO_OutputCDR cdr  )  [protected]

Marshal the arguments into the stream.

Invocation_Status TAO::Remote_Invocation::send_message ( TAO_OutputCDR cdr,
short  message_semantics,
ACE_Time_Value max_wait_time
) [protected]

Write the message onto the socket.

Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_ [protected]

Our resolver.

The documentation for this class was generated from the following files:
