TAO_Resource_Factory Class Reference

Factory which manufacturers resources for use by the ORB Core. More...

#include <Resource_Factory.h>

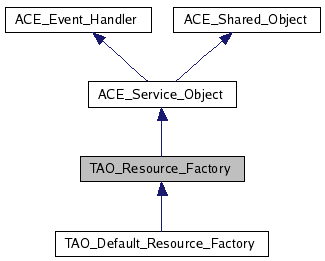

Inheritance diagram for TAO_Resource_Factory:

Inheritance graph
[legend]

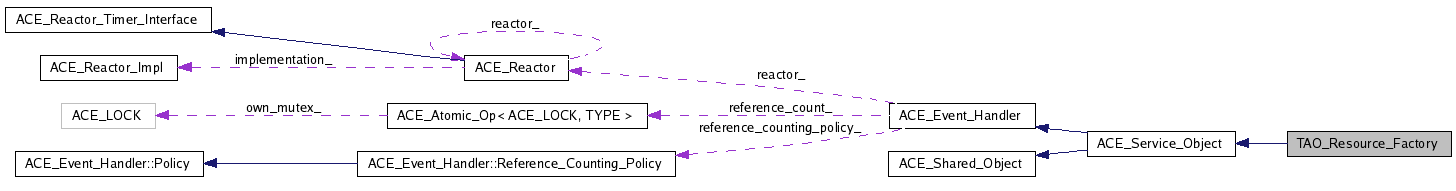

Collaboration diagram for TAO_Resource_Factory:

Collaboration graph
[legend]

List of all members.

Public Types

enum  Purging_Strategy { LRU, LFU, FIFO, NOOP }
enum  Resource_Usage { TAO_EAGER, TAO_LAZY }

Public Member Functions

 TAO_Resource_Factory (void)
virtual ~TAO_Resource_Factory (void)
virtual int use_locked_data_blocks (void) const
virtual ACE_Reactorget_reactor (void)
 Return an ACE_Reactor to be utilized.
virtual void reclaim_reactor (ACE_Reactor *reactor)
 Reclaim reactor resources (e.g. deallocate, etc).
virtual
TAO_Acceptor_Registry
get_acceptor_registry (void)
 Return a reference to the acceptor registry.
virtual
TAO_Connector_Registry
get_connector_registry (void)
 Return a connector to be utilized.
virtual void use_local_memory_pool (bool)
 Return the Allocator's memory pool type.
virtual int input_cdr_allocator_type_locked (void)
virtual ACE_Allocatoramh_response_handler_allocator (void)
 Access the AMH response handler allocator.
virtual ACE_Allocatorami_response_handler_allocator (void)
 Access the AMI response handler allocator.
virtual
TAO_ProtocolFactorySet
get_protocol_factories (void)
virtual int init_protocol_factories (void)
virtual
TAO_Codeset_Manager
codeset_manager (void)
 Gets the codeset manager.
virtual int cache_maximum (void) const
 This denotes the maximum number of connections that can be cached.
virtual int purge_percentage (void) const
virtual int max_muxed_connections (void) const
virtual int get_parser_names (char **&names, int &number_of_names)
virtual ACE_Lockcreate_cached_connection_lock (void)
virtual int locked_transport_cache (void)
virtual ACE_Lockcreate_object_key_table_lock (void)
 Creates a lock needed for the table that stores the object keys.
virtual ACE_Lockcreate_corba_object_lock (void)
 Creates the lock for the CORBA Object.
virtual
TAO_Configurable_Refcount
create_corba_object_refcount (void)
 Creates the configurable refcount for the CORBA Object.
virtual
TAO_Flushing_Strategy
create_flushing_strategy (void)=0
virtual
TAO_Connection_Purging_Strategy
create_purging_strategy (void)=0
 Creates the connection purging strategy.
virtual TAO_LF_Strategycreate_lf_strategy (void)=0
virtual auto_ptr
< TAO_GIOP_Fragmentation_Strategy
create_fragmentation_strategy (TAO_Transport *transport, CORBA::ULong max_message_size) const =0
 Outgoing fragment creation strategy.
virtual void disable_factory (void)=0
virtual
TAO_Resource_Factory::Resource_Usage
resource_usage_strategy (void) const =0
 Return the resource usage strategy.
virtual bool drop_replies_during_shutdown () const =0
Access the input CDR allocators.
virtual ACE_Allocatorinput_cdr_dblock_allocator (void)
virtual ACE_Allocatorinput_cdr_buffer_allocator (void)
virtual ACE_Allocatorinput_cdr_msgblock_allocator (void)
Access the output CDR allocators.
virtual ACE_Allocatoroutput_cdr_dblock_allocator (void)
virtual ACE_Allocatoroutput_cdr_buffer_allocator (void)
virtual ACE_Allocatoroutput_cdr_msgblock_allocator (void)

Protected Member Functions

virtual int load_default_protocols (void)


Detailed Description

Factory which manufacturers resources for use by the ORB Core.

This class is a factory/repository for critical ORB Core resources.


Member Enumeration Documentation

enum TAO_Resource_Factory::Purging_Strategy

Enumerator:
LRU  Least Recently Used.
LFU  Least Frequently Used.
FIFO  First In First Out.
NOOP  Dont use any strategy.

enum TAO_Resource_Factory::Resource_Usage

Enumerator:
TAO_EAGER  Use resources in an eager fashion.
TAO_LAZY  Use resources in a lazy manner.


Constructor & Destructor Documentation

TAO_Resource_Factory::TAO_Resource_Factory ( void   )

TAO_Resource_Factory::~TAO_Resource_Factory ( void   )  [virtual]


Member Function Documentation

int TAO_Resource_Factory::use_locked_data_blocks ( void   )  const [virtual]

@ Backwards compatibility, return 1 if the ORB core should use Locked_Data_Blocks

Reimplemented in TAO_Default_Resource_Factory.

ACE_Reactor * TAO_Resource_Factory::get_reactor ( void   )  [virtual]

Return an ACE_Reactor to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

void TAO_Resource_Factory::reclaim_reactor ( ACE_Reactor reactor  )  [virtual]

Reclaim reactor resources (e.g. deallocate, etc).

Reimplemented in TAO_Default_Resource_Factory.

TAO_Acceptor_Registry * TAO_Resource_Factory::get_acceptor_registry ( void   )  [virtual]

Return a reference to the acceptor registry.

Reimplemented in TAO_Default_Resource_Factory.

TAO_Connector_Registry * TAO_Resource_Factory::get_connector_registry ( void   )  [virtual]

Return a connector to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

void TAO_Resource_Factory::use_local_memory_pool ( bool   )  [virtual]

Return the Allocator's memory pool type.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_dblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_buffer_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_msgblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::input_cdr_allocator_type_locked ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_dblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_buffer_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_msgblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::amh_response_handler_allocator ( void   )  [virtual]

Access the AMH response handler allocator.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::ami_response_handler_allocator ( void   )  [virtual]

Access the AMI response handler allocator.

Reimplemented in TAO_Default_Resource_Factory.

TAO_ProtocolFactorySet * TAO_Resource_Factory::get_protocol_factories ( void   )  [virtual]

The protocol factory list is implemented in this class since a) it will be a global resource and b) it is initialized at start up and then not altered. Returns a container holding the list of loaded protocols.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::init_protocol_factories ( void   )  [virtual]

This method will loop through the protocol list and using the protocol name field this method will retrieve a pointer to the associated protocol factory from the service configurator. It is assumed that only one thread will call this method at ORB initialization. NON-THREAD-SAFE

Reimplemented in TAO_Default_Resource_Factory.

TAO_Codeset_Manager * TAO_Resource_Factory::codeset_manager ( void   )  [virtual]

Gets the codeset manager.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::cache_maximum ( void   )  const [virtual]

This denotes the maximum number of connections that can be cached.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::purge_percentage ( void   )  const [virtual]

This denotes the amount of entries to remove from the connection cache.

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::max_muxed_connections ( void   )  const [virtual]

Return the number of muxed connections that are allowed for a remote endpoint

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::get_parser_names ( char **&  names,
int &  number_of_names
) [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_cached_connection_lock ( void   )  [virtual]

Creates the lock for the lock needed in the Cache Map

Deprecated:

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::locked_transport_cache ( void   )  [virtual]

Should the transport cache have a lock or not? Return 1 if the transport cache needs to be locked else return 0

Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_object_key_table_lock ( void   )  [virtual]

Creates a lock needed for the table that stores the object keys.

Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_corba_object_lock ( void   )  [virtual]

Creates the lock for the CORBA Object.

Reimplemented in TAO_Default_Resource_Factory.

TAO_Configurable_Refcount TAO_Resource_Factory::create_corba_object_refcount ( void   )  [virtual]

Creates the configurable refcount for the CORBA Object.

Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Flushing_Strategy* TAO_Resource_Factory::create_flushing_strategy ( void   )  [pure virtual]

Creates the flushing strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

virtual TAO_Connection_Purging_Strategy* TAO_Resource_Factory::create_purging_strategy ( void   )  [pure virtual]

Creates the connection purging strategy.

Implemented in TAO_Default_Resource_Factory.

virtual TAO_LF_Strategy* TAO_Resource_Factory::create_lf_strategy ( void   )  [pure virtual]

Creates the leader followers strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

virtual auto_ptr<TAO_GIOP_Fragmentation_Strategy> TAO_Resource_Factory::create_fragmentation_strategy ( TAO_Transport transport,
CORBA::ULong  max_message_size
) const [pure virtual]

Outgoing fragment creation strategy.

Implemented in TAO_Default_Resource_Factory.

virtual void TAO_Resource_Factory::disable_factory ( void   )  [pure virtual]

Disables the factory. When a new factory is installed and used, this function should be called on the previously used (default) factory. This should result in proper error reporting if the user attempts to set options on an unused factory.

Implemented in TAO_Default_Resource_Factory.

virtual TAO_Resource_Factory::Resource_Usage TAO_Resource_Factory::resource_usage_strategy ( void   )  const [pure virtual]

Return the resource usage strategy.

Implemented in TAO_Default_Resource_Factory.

virtual bool TAO_Resource_Factory::drop_replies_during_shutdown (  )  const [pure virtual]

Return the value of the strategy that indicates whether the ORB should wait for the replies during shutdown or drop replies during shutdown.

Implemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::load_default_protocols ( void   )  [protected, virtual]

Loads the default protocols. This method is used so that the advanced_resource.cpp can call the one in default_resource.cpp without calling unnecessary functions.

Reimplemented in TAO_Default_Resource_Factory.


The documentation for this class was generated from the following files:
Generated on Wed Sep 19 04:46:32 2007 for TAO by  doxygen 1.5.3
