TAO_Queued_Data Class Reference

Represents a node in the queue of incoming messages. More...

#include <Queued_Data.h>

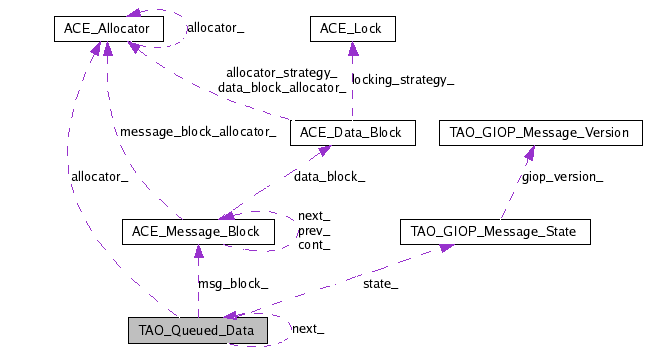

Collaboration diagram for TAO_Queued_Data:

[legend]

List of all members.

Public Member Functions
	TAO_Queued_Data (ACE_Allocator *alloc=0)
	Default Constructor.
	TAO_Queued_Data (ACE_Message_Block *mb, ACE_Allocator *alloc=0)
	Constructor.
	TAO_Queued_Data (const TAO_Queued_Data &qd)
	Copy constructor.
int	consolidate (void)
size_t	missing_data (void) const
	Get missing data.
void	missing_data (size_t data)
	Set missing data.
TAO_GIOP_Message_Version const &	giop_version (void) const
	Get the GIOP version.
CORBA::Octet	byte_order (void) const
	Get byte_order.
CORBA::Octet	more_fragments (void) const
	Get more fragments.
TAO_Pluggable_Message_Type	msg_type (void) const
	Get message type.
TAO_Queued_Data *	next (void) const
	Get next.
void	next (TAO_Queued_Data *qd)
	Set next.
ACE_Message_Block *	msg_block (void) const
	Get message block.
void	msg_block (ACE_Message_Block *mb)
	Set message block.
void	set_state (const TAO_GIOP_Message_State &state)
	Set the state.
Static Public Member Functions
static TAO_Queued_Data *	make_queued_data (ACE_Allocator *message_buffer_alloc=0, ACE_Allocator *input_cdr_alloc=0, ACE_Data_Block *db=0)
	Creation of a node in the queue.
static void	release (TAO_Queued_Data *qd)
	Deletion of a node from the queue.
static TAO_Queued_Data *	duplicate (TAO_Queued_Data &qd)
Static Private Member Functions
static void	replace_data_block (ACE_Message_Block &mb)
Private Attributes
ACE_Message_Block *	msg_block_
	The message block that contains the message.
TAO_GIOP_Message_State	state_
	State of this queued data.
TAO_Queued_Data *	next_
	Pounter to the next element in the queue.
ACE_Allocator *	allocator_
	The allocator used to allocate this class.
Missing Data details
The missing_data_ member contains the number of bytes of data missing from msg_block_.
size_t	missing_data_

---

Detailed Description

Represents a node in the queue of incoming messages.

This class contains necessary information about a message that is stored in the queue. Such a node can be used by the incoming thread from the reactor to dequeue and process the message by sending it to the higher layers of the ORB.

The ACE_Message_Block contained within this class may contain a chain of message blocks (usually when GIOP fragments are involved). In that case consolidate () needs to be called prior to being sent to higher layers of the ORB when the GIOP fragment chain is complete.

---

Constructor & Destructor Documentation

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data

(

ACE_Allocator *

alloc = 0

)

Default Constructor.

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data	(	ACE_Message_Block *	mb,
		ACE_Allocator *	alloc = 0
	)

Constructor.

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data

(

const TAO_Queued_Data &

qd

)

Copy constructor.

---

Member Function Documentation

TAO_Queued_Data * TAO_Queued_Data::make_queued_data	(	ACE_Allocator *	message_buffer_alloc = 0,
		ACE_Allocator *	input_cdr_alloc = 0,
		ACE_Data_Block *	db = 0
	)			[static]

Creation of a node in the queue.

void TAO_Queued_Data::release

(

TAO_Queued_Data *

qd

)

[static]

Deletion of a node from the queue.

TAO_Queued_Data * TAO_Queued_Data::duplicate

(

TAO_Queued_Data &

qd

)

[static]

Duplicate ourselves. This creates a copy of ourselves on the heap and returns a pointer to the duplicated node.

int TAO_Queued_Data::consolidate

(

void

)

Consolidate this fragments chained message blocks into one.

Returns:

-1 if consolidation failed, eg out or memory, otherwise 0

ACE_INLINE size_t TAO_Queued_Data::missing_data

(

void

)

const

Get missing data.

ACE_INLINE void TAO_Queued_Data::missing_data

(

size_t

data

)

Set missing data.

ACE_INLINE TAO_GIOP_Message_Version const & TAO_Queued_Data::giop_version

(

void

)

const

Get the GIOP version.

ACE_INLINE CORBA::Octet TAO_Queued_Data::byte_order

(

void

)

const

Get byte_order.

ACE_INLINE CORBA::Octet TAO_Queued_Data::more_fragments

(

void

)

const

Get more fragments.

ACE_INLINE TAO_Pluggable_Message_Type TAO_Queued_Data::msg_type

(

void

)

const

Get message type.

ACE_INLINE TAO_Queued_Data * TAO_Queued_Data::next

(

void

)

const

Get next.

ACE_INLINE void TAO_Queued_Data::next

(

TAO_Queued_Data *

qd

)

Set next.

ACE_INLINE ACE_Message_Block * TAO_Queued_Data::msg_block

(

void

)

const

Get message block.

ACE_INLINE void TAO_Queued_Data::msg_block

(

ACE_Message_Block *

mb

)

Set message block.

ACE_INLINE void TAO_Queued_Data::set_state

(

const TAO_GIOP_Message_State &

state

)

Set the state.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE void TAO_Queued_Data::replace_data_block

(

ACE_Message_Block &

mb

)

[static, private]

Replace the datablock with a one allocated on the heap or allocator

---

Member Data Documentation

ACE_Message_Block* TAO_Queued_Data::msg_block_ [private]

The message block that contains the message.

size_t TAO_Queued_Data::missing_data_ [private]

Data missing in the above message that hasn't been read or processed yet, the value TAO_MISSING_DATA_UNDEFINED indicates it hasn't been processed yet, otherwise greater or equal zero.

TAO_GIOP_Message_State TAO_Queued_Data::state_ [private]

State of this queued data.

TAO_Queued_Data* TAO_Queued_Data::next_ [private]

Pounter to the next element in the queue.

ACE_Allocator* TAO_Queued_Data::allocator_ [private]

The allocator used to allocate this class.

---

The documentation for this class was generated from the following files:

• Queued_Data.h
• Queued_Data.cpp
• Queued_Data.inl

---
