TAO_Connect_Strategy Class Reference

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections. More...

#include <Connect_Strategy.h>

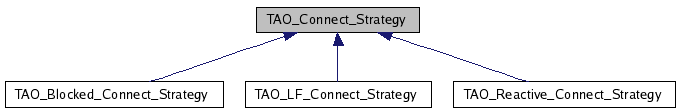

Inheritance diagram for TAO_Connect_Strategy:

[legend]

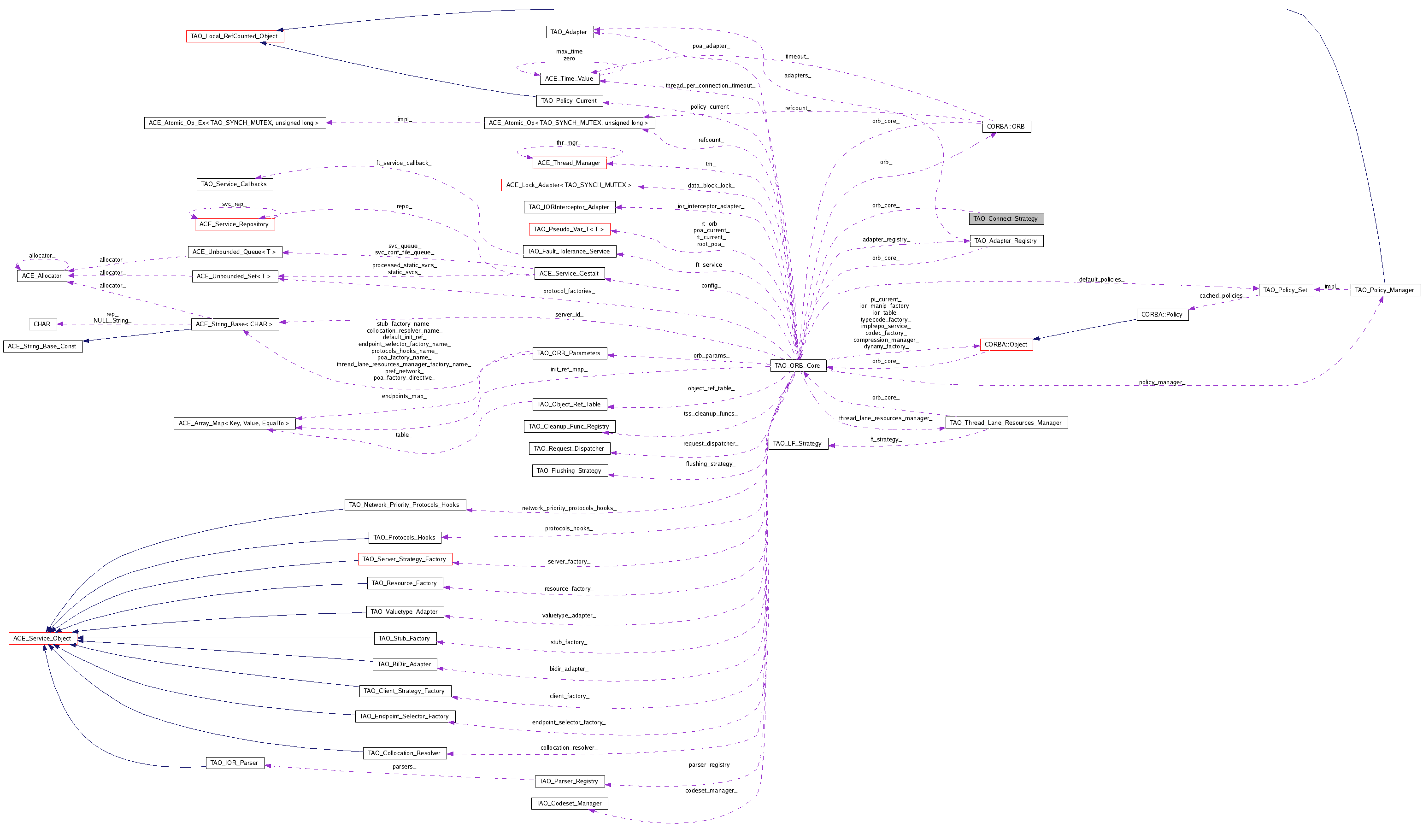

Collaboration diagram for TAO_Connect_Strategy:

[legend]

List of all members.

Public Member Functions
	TAO_Connect_Strategy (TAO_ORB_Core *orb)
	Constructor.
virtual	~TAO_Connect_Strategy (void)
	Destructor.
virtual void	synch_options (ACE_Time_Value *val, ACE_Synch_Options &opt)=0
	Obtain the synch options that can be passed to ACE_Connector.
int	wait (TAO_Connection_Handler *ch, ACE_Time_Value *val)
	Wait for the connection to be completed till a timeout occurs.
int	wait (TAO_Transport *t, ACE_Time_Value *val)
int	wait (TAO_LF_Multi_Event *ev, ACE_Time_Value *val)
int	poll (TAO_LF_Multi_Event *ev)
Protected Member Functions
virtual int	wait_i (TAO_LF_Event *ev, TAO_Transport *t, ACE_Time_Value *val)=0
	This is the method that does all the real interesting stuff.
Protected Attributes
TAO_ORB_Core *const	orb_core_
	Cached copy of the ORB core pointer.

---

Detailed Description

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections.

The thread that establishes remote connections can either make a blocking or a non-blocking connect. The strategy to wait for the connection completion can also be different.

This strategy controls how does the ORB schedules and waits for connection completion.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Connect_Strategy::TAO_Connect_Strategy

(

TAO_ORB_Core *

orb

)

Constructor.

TAO_Connect_Strategy::~TAO_Connect_Strategy

(

void

)

[virtual]

Destructor.

---

Member Function Documentation

virtual void TAO_Connect_Strategy::synch_options	(	ACE_Time_Value *	val,
		ACE_Synch_Options &	opt
	)			[pure virtual]

Obtain the synch options that can be passed to ACE_Connector.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

int TAO_Connect_Strategy::wait	(	TAO_Connection_Handler *	ch,
		ACE_Time_Value *	val
	)

Wait for the connection to be completed till a timeout occurs.

int TAO_Connect_Strategy::wait	(	TAO_Transport *	t,
		ACE_Time_Value *	val
	)

int TAO_Connect_Strategy::wait	(	TAO_LF_Multi_Event *	ev,
		ACE_Time_Value *	val
	)

Wait for one of many connections to complete. Returns when one succeeds or all fail.

int TAO_Connect_Strategy::poll

(

TAO_LF_Multi_Event *

ev

)

Do a quick check to see if any connections are complete. This does the same as the wait with an explicit time value of 0.

virtual int TAO_Connect_Strategy::wait_i	(	TAO_LF_Event *	ev,
		TAO_Transport *	t,
		ACE_Time_Value *	val
	)			[protected, pure virtual]

This is the method that does all the real interesting stuff.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

---

Member Data Documentation

TAO_ORB_Core* const TAO_Connect_Strategy::orb_core_ [protected]

Cached copy of the ORB core pointer.

---

The documentation for this class was generated from the following files:

• Connect_Strategy.h
• Connect_Strategy.cpp

---
