#include <GIOP_Message_Lite.h>

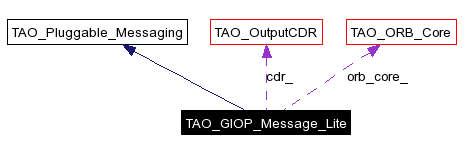

Inheritance diagram for TAO_GIOP_Message_Lite:
Public Member Functions | |
TAO_GIOP_Message_Lite (TAO_ORB_Core *orb_core, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE) | |
Constructor. | |
virtual | ~TAO_GIOP_Message_Lite (void) |
Dtor. | |
virtual void | init (CORBA::Octet, CORBA::Octet) |
Initialize the object -- this is a dummy for GIOPlite. | |
virtual void | reset (void) |
Reset the messaging the object. | |
virtual int | generate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr) |
virtual int | generate_locate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr) |
Write the RequestHeader in to the cdr stream. | |
virtual int | generate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base ¶ms) |
Write the reply header. | |
virtual int | format_message (TAO_OutputCDR &cdr) |
virtual int | parse_next_message (ACE_Message_Block &incoming, TAO_Queued_Data &qd, size_t &mesg_length) |
virtual int | extract_next_message (ACE_Message_Block &incoming, TAO_Queued_Data *&qd) |
virtual int | consolidate_node (TAO_Queued_Data *qd, ACE_Message_Block &incoming) |
Check whether the node qd needs consolidation from incoming. | |
virtual int | process_request_message (TAO_Transport *transport, TAO_Queued_Data *qd) |
virtual int | process_reply_message (TAO_Pluggable_Reply_Params &reply_info, TAO_Queued_Data *qd) |
virtual int | generate_exception_reply (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base ¶ms, CORBA::Exception &x) |
Generate a reply message with the exception ex. | |
virtual int | consolidate_fragmented_message (TAO_Queued_Data *qd, TAO_Queued_Data *&msg) |
virtual int | discard_fragmented_message (const TAO_Queued_Data *cancel_request) |
Private Member Functions | |
int | parse_incoming_messages (ACE_Message_Block &message_block) |
TAO_Pluggable_Message_Type | message_type (void) const |
int | write_protocol_header (TAO_GIOP_Message_Type t, TAO_OutputCDR &msg) |
int | process_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output) |
Processes the GIOP_REQUEST messages. | |
int | process_locate_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output) |
Processes the GIOP_LOCATE_REQUEST messages. | |
int | make_send_locate_reply (TAO_Transport *transport, TAO_OutputCDR &output, TAO_GIOP_Locate_Request_Header &request, TAO_GIOP_Locate_Status_Msg &status) |
int | send_error (TAO_Transport *transport) |
Send error messages. | |
void | send_close_connection (const TAO_GIOP_Message_Version &version, TAO_Transport *transport, void *ctx) |
Close a connection, first sending GIOP::CloseConnection. | |
int | send_reply_exception (TAO_Transport *transport, TAO_ORB_Core *orb_core, CORBA::ULong request_id, IOP::ServiceContextList *svc_info, CORBA::Exception *x) |
void | dump_msg (const char *label, const u_char *ptr, size_t len) |
Print out a debug messages.. | |
TAO_Queued_Data * | make_queued_data (size_t sz) |
virtual int | generate_locate_reply_header (TAO_OutputCDR &, TAO_Pluggable_Reply_Params_Base &) |
Write the locate reply header. | |
virtual int | is_ready_for_bidirectional (TAO_OutputCDR &msg) |
virtual size_t | header_length (void) const |
Header length. | |
virtual size_t | fragment_header_length (CORBA::Octet major, CORBA::Octet minor) const |
Fragment header length. | |
virtual TAO_OutputCDR & | out_stream (void) |
Accessor for the output CDR stream. | |
int | write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg) |
Write the request header in to <msg>. | |
int | write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg) |
Write the LocateRequest header. | |
int | write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply) throw (CORBA::SystemException) |
Write the reply header in to <output>. | |
int | write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status) |
Writes the locate _reply message in to the <output>. | |
int | parse_request_header (TAO_ServerRequest &) |
int | parse_locate_header (TAO_GIOP_Locate_Request_Header &) |
int | parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params ¶ms) |
Parse the reply message. | |
int | parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params ¶ms) |
Parse the locate reply message from the server. | |
void | init_queued_data (TAO_Queued_Data *qd) const |
Initialize the relevant portions of a TAO_Queued_Data. | |
Private Attributes | |
TAO_ORB_Core * | orb_core_ |
Our copy of the ORB core... | |
CORBA::Octet | message_type_ |
The message type that we are going to process.. | |
CORBA::ULong | message_size_ |
The pay load size. | |
CORBA::Octet | byte_order_ |
TAO_OutputCDR | cdr_ |
This protocol is a modified version of GIOP. This is more suited for homogenous platforms.
|
Constructor.
|
|
Dtor.
|
|
Consolidate fragmented message with associated fragments, being stored withi this class. If reliable transport is used (like TCP) fragments are partialy ordered on stack, last fragment on top. Otherwise If un-reliable transport is used (like UDP) fragments may be dis-ordered, and must be ordered before consolidation.
Implements TAO_Pluggable_Messaging. |
|
Check whether the node qd needs consolidation from incoming.
Implements TAO_Pluggable_Messaging. |
|
Discard all fragments associated to request-id encoded in cancel_request. This operation will never be called concurrently by multiplpe threads nor concurrently to consolidate_fragmented_message 0 on success, 1 if no matching fragment chain exists, -1 on error Implements TAO_Pluggable_Messaging. |
|
Print out a debug messages..
|
|
Extract the details of the next message from the incoming through qd. Returns 0 if the message header could not be parsed completely, returns a 1 if the message header could be parsed completely and returns -1 on error. Implements TAO_Pluggable_Messaging. |
|
Format the message. As we have not written the message length in the header, we make use of this oppurtunity to insert and format the message. Implements TAO_Pluggable_Messaging. |
|
Fragment header length.
Implements TAO_Pluggable_Messaging. |
|
Generate a reply message with the exception ex.
Implements TAO_Pluggable_Messaging. |
|
Write the locate reply header.
Implements TAO_Pluggable_Messaging. |
|
Write the RequestHeader in to the cdr stream.
Implements TAO_Pluggable_Messaging. |
|
Write the reply header.
Implements TAO_Pluggable_Messaging. |
|
Write the RequestHeader in to the cdr stream. The underlying implementation of the mesaging should do the right thing. Implements TAO_Pluggable_Messaging. |
|
Header length.
Implements TAO_Pluggable_Messaging. |
|
Initialize the object -- this is a dummy for GIOPlite.
Implements TAO_Pluggable_Messaging. |
|
Initialize the relevant portions of a TAO_Queued_Data.
|
|
Is the messaging object ready for processing BiDirectional request/response? Implements TAO_Pluggable_Messaging. |
|
|
|
Make a GIOP_LOCATEREPLY and hand that over to the transport so that it can be sent over the connection.
|
|
Get the message type. The return value would be one of the following: TAO_PLUGGABLE_MESSAGE_REQUEST, TAO_PLUGGABLE_MESSAGE_REPLY, TAO_PLUGGABLE_MESSAGE_CLOSECONNECTION, TAO_PLUGGABLE_MESSAGE_MESSAGE_ERROR. TAO_PLUGGABLE_MESSAGE_MESSAGE_CANCELREQUEST. |
|
Accessor for the output CDR stream.
Implements TAO_Pluggable_Messaging. |
|
Parse the incoming messages..
|
|
Parse the Loacte Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header |
|
Parse the locate reply message from the server.
|
|
Parse the details of the next message from the incoming and initializes attributes of qd. Returns 0 if the message header could not be parsed completely, returns a 1 if the message header could be parsed completely and returns -1 on error. Implements TAO_Pluggable_Messaging. |
|
Parse the reply message.
|
|
Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header |
|
Processes the GIOP_LOCATE_REQUEST messages.
|
|
Parse the reply message that we received and return the reply information through reply_info Implements TAO_Pluggable_Messaging. |
|
Processes the GIOP_REQUEST messages.
|
|
Process the request message that we have received on the connection Implements TAO_Pluggable_Messaging. |
|
Reset the messaging the object.
Implements TAO_Pluggable_Messaging. |
|
Close a connection, first sending GIOP::CloseConnection.
|
|
Send error messages.
|
|
We must send a LocateReply through transport, this request resulted in some kind of exception. |
|
Writes the locate _reply message in to the <output>.
|
|
Write the LocateRequest header.
|
|
Writes the GIOP header in to msg
|
|
Write the reply header in to <output>.
|
|
Write the request header in to <msg>.
|
|
|
|
|
|
The pay load size.
|
|
The message type that we are going to process..
|
|
Our copy of the ORB core...
|
