ACE_Token::ACE_Token_Queue_Entry Struct Reference

#include <Token.h>

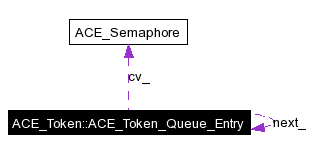

Collaboration diagram for ACE_Token::ACE_Token_Queue_Entry:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Token_Queue_Entry (ACE_Thread_Mutex &m, ACE_thread_t t_id)
 Constructor.
 ACE_Token_Queue_Entry (ACE_Thread_Mutex &m, ACE_thread_t t_id, ACE_Condition_Attributes &attributes)
 Constructor using a pre-allocated attributes.
int wait (ACE_Time_Value *timeout, ACE_Thread_Mutex &lock)
 Entry blocks on the token.
int signal (void)
 Notify (unblock) the entry.

Public Attributes

ACE_Token_Queue_Entrynext_
 Pointer to next waiter.
ACE_thread_t thread_id_
 ACE_Thread id of this waiter.
ACE_Semaphore cv_
 ACE_Semaphore object used to wake up waiter when it can run again.
int runable_
 Ok to run.

Detailed Description

The following structure implements a LIFO/FIFO queue of waiter threads that are asleep waiting to obtain the token.


Constructor & Destructor Documentation

ACE_Token::ACE_Token_Queue_Entry::ACE_Token_Queue_Entry ACE_Thread_Mutex m,
ACE_thread_t  t_id


Constructor.

ACE_Token::ACE_Token_Queue_Entry::ACE_Token_Queue_Entry ACE_Thread_Mutex m,
ACE_thread_t  t_id,
ACE_Condition_Attributes attributes


Constructor using a pre-allocated attributes.


Member Function Documentation

ACE_INLINE int ACE_Token::ACE_Token_Queue_Entry::signal void   )


Notify (unblock) the entry.

ACE_INLINE int ACE_Token::ACE_Token_Queue_Entry::wait ACE_Time_Value timeout,
ACE_Thread_Mutex lock


Entry blocks on the token.


Member Data Documentation

ACE_Semaphore ACE_Token::ACE_Token_Queue_Entry::cv_


ACE_Semaphore object used to wake up waiter when it can run again.

ACE_Token_Queue_Entry* ACE_Token::ACE_Token_Queue_Entry::next_


Pointer to next waiter.

int ACE_Token::ACE_Token_Queue_Entry::runable_


Ok to run.

ACE_thread_t ACE_Token::ACE_Token_Queue_Entry::thread_id_


ACE_Thread id of this waiter.


The documentation for this struct was generated from the following files:
