ACE_MEM_SAP Class Reference

Defines the methods of shared memory management for shared memory transport. More...

#include <MEM_SAP.h>

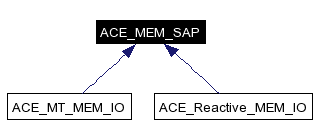

Inheritance diagram for ACE_MEM_SAP:

Inheritance graph
[legend]

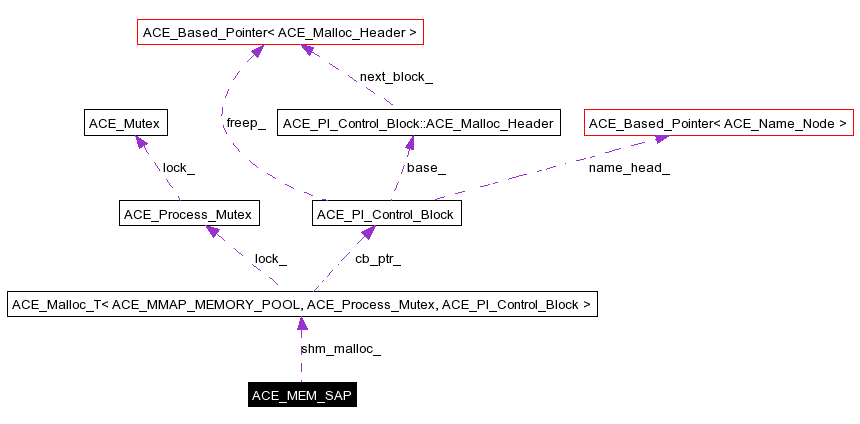

Collaboration diagram for ACE_MEM_SAP:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Malloc_T< ACE_MMAP_MEMORY_POOL,
ACE_Process_Mutex, ACE_PI_Control_Block
MALLOC_TYPE
typedef ACE_MMAP_Memory_Pool_Options MALLOC_OPTIONS

Public Member Functions

virtual ~ACE_MEM_SAP (void)
 Destructor.
virtual int init (ACE_HANDLE handle, const ACE_TCHAR *name, MALLOC_OPTIONS *options)=0
virtual int fini ()
virtual ssize_t recv_buf (ACE_MEM_SAP_Node *&buf, int flags, const ACE_Time_Value *timeout)=0
virtual ssize_t send_buf (ACE_MEM_SAP_Node *buf, int flags, const ACE_Time_Value *timeout)=0
ACE_MEM_SAP_Nodeacquire_buffer (const ssize_t size)
int release_buffer (ACE_MEM_SAP_Node *buf)
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

int create_shm_malloc (const ACE_TCHAR *name, MALLOC_OPTIONS *options)
int close_shm_malloc (void)
 ACE_MEM_SAP (void)
 Constructor. Prevent this class from being instantiated.

Protected Attributes

ACE_HANDLE handle_
MALLOC_TYPEshm_malloc_
 Data exchange channel.

Detailed Description

Defines the methods of shared memory management for shared memory transport.


Member Typedef Documentation

typedef ACE_MMAP_Memory_Pool_Options ACE_MEM_SAP::MALLOC_OPTIONS


typedef ACE_Malloc_T<ACE_MMAP_MEMORY_POOL, ACE_Process_Mutex, ACE_PI_Control_Block> ACE_MEM_SAP::MALLOC_TYPE



Constructor & Destructor Documentation

ACE_MEM_SAP::~ACE_MEM_SAP void   )  [virtual]


Destructor.

ACE_MEM_SAP::ACE_MEM_SAP void   )  [protected]


Constructor. Prevent this class from being instantiated.


Member Function Documentation

ACE_INLINE ACE_MEM_SAP_Node * ACE_MEM_SAP::acquire_buffer const ssize_t  size  )


request a buffer of size <size>. Return 0 if the <shm_malloc_> is not initialized.

int ACE_MEM_SAP::close_shm_malloc void   )  [protected]


Close down the share memory pool. Clean up the mmap file if we are the last one using it.

int ACE_MEM_SAP::create_shm_malloc const ACE_TCHAR name,
MALLOC_OPTIONS options
[protected]


Create a new shm_malloc object. Return 0 if succeed and -1 otherwise. This method should only be called from an acceptor class that wants to create a new memory pool for inter process communication.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_MEM_SAP::dump void   )  const


Dump the state of an object.

int ACE_MEM_SAP::fini  )  [virtual]


Finalizing the MEM_SAP object. This method doesn't invoke the <remove> method.

virtual int ACE_MEM_SAP::init ACE_HANDLE  handle,
const ACE_TCHAR name,
MALLOC_OPTIONS options
[pure virtual]


Initialize the MEM_SAP object.

Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.

virtual ssize_t ACE_MEM_SAP::recv_buf ACE_MEM_SAP_Node *&  buf,
int  flags,
const ACE_Time_Value timeout
[pure virtual]


Fetch location of next available data into <recv_buffer_>. As this operation read the address of the data off the socket using ACE::recv, timeout only applies to ACE::recv.

Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.

ACE_INLINE int ACE_MEM_SAP::release_buffer ACE_MEM_SAP_Node buf  )


release a buffer pointed by <buf>. Return -1 if the <shm_malloc_> is not initialized.

virtual ssize_t ACE_MEM_SAP::send_buf ACE_MEM_SAP_Node buf,
int  flags,
const ACE_Time_Value timeout
[pure virtual]


Wait to to <timeout> amount of time to send <buf>. If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned.

Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.


Member Data Documentation

ACE_MEM_SAP::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

ACE_HANDLE ACE_MEM_SAP::handle_ [protected]


MALLOC_TYPE* ACE_MEM_SAP::shm_malloc_ [protected]


Data exchange channel.


The documentation for this class was generated from the following files:
