ACE_Configuration Class Reference

Base class for configuration databases. More...

#include <Configuration.h>

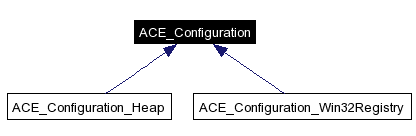

Inheritance diagram for ACE_Configuration:

Inheritance graph
[legend]
Collaboration diagram for ACE_Configuration:

Collaboration graph
[legend]
List of all members.

Public Types

enum  VALUETYPE { STRING, INTEGER, BINARY, INVALID }
 Enumeration for the various types of values we can store. More...

Public Member Functions

virtual ~ACE_Configuration (void)
 Destructor.
virtual const ACE_Configuration_Section_Keyroot_section (void) const
 Obtain a reference to the root section of this configuration.
virtual int open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, int create, ACE_Configuration_Section_Key &result)=0
virtual int remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, int recursive)=0
 Removes a named section.
virtual int enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)=0
virtual int enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)=0
virtual int set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)=0
 Sets a string-typed value.
virtual int set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)=0
 Sets a integer-typed value.
virtual int set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const void *data, size_t length)=0
 Sets a binary-typed value.
virtual int get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)=0
 Gets a string-typed value.
virtual int get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)=0
 Gets an integer-typed value.
virtual int get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, void *&data, size_t &length)=0
 Gets a binary-typed value.
virtual int find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)=0
virtual int remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)=0
 Removes a named value.
int expand_path (const ACE_Configuration_Section_Key &key, const ACE_TString &path_in, ACE_Configuration_Section_Key &key_out, int create=1)
int export_config (const ACE_TCHAR *filename)
int import_config (const ACE_TCHAR *filename)
bool operator== (const ACE_Configuration &rhs) const
bool operator!= (const ACE_Configuration &rhs) const

Static Public Attributes

ACE_TCHAR NULL_String_ = '\0'

Protected Member Functions

 ACE_Configuration (void)
 Default ctor.
ACE_Section_Key_Internalget_internal_key (const ACE_Configuration_Section_Key &key)
 Resolves the internal key from a section key.
int validate_name (const ACE_TCHAR *name, int allow_path=0)
int validate_value_name (const ACE_TCHAR *name)
 ACE_Configuration (const ACE_Configuration &rhs)
ACE_Configurationoperator= (const ACE_Configuration &rhs)

Protected Attributes

ACE_Configuration_Section_Key root_

Detailed Description

Base class for configuration databases.

For internal use only.

This class provides an interface for configuration databases. A concrete class is required that implements the interface.

See also:
ACE_Configuration_Heap

ACE_Configuration_Win32Registry


Member Enumeration Documentation

enum ACE_Configuration::VALUETYPE


Enumeration for the various types of values we can store.

Enumeration values:
STRING
INTEGER
BINARY
INVALID


Constructor & Destructor Documentation

ACE_Configuration::~ACE_Configuration void   )  [virtual]


Destructor.

ACE_Configuration::ACE_Configuration void   )  [protected]


Default ctor.

ACE_Configuration::ACE_Configuration const ACE_Configuration rhs  )  [protected]



Member Function Documentation

virtual int ACE_Configuration::enumerate_sections const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name
[pure virtual]


Enumerates through the subsections in a section.

Parameters:
key Section key to iterate through.
index Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name Receives the subsection's name.
Note:
You may not modify the key section while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0 for success, name has a valid name.
1 there are no more subsections in the section.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::enumerate_values const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name,
VALUETYPE type
[pure virtual]


Enumerates through the values in a section.

Parameters:
key Section key to iterate through.
index Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name Receives the value's name.
type Receives the value's data type.
Note:
You may not delete or add values while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values:
0 for success, name and type are valid.
1 there are no more values in the section.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

int ACE_Configuration::expand_path const ACE_Configuration_Section_Key key,
const ACE_TString path_in,
ACE_Configuration_Section_Key key_out,
int  create = 1


Expands <path_in> to <key_out> from <key>. If create is true, the subsections are created. Returns 0 on success, non zero on error The path consists of sections separated by the backslash '\' or forward slash '/'. Returns 0 on success, -1 if <create) is 0 and the path refers a nonexistant section

int ACE_Configuration::export_config const ACE_TCHAR filename  )


Deprecated:
Exports the configuration database to filename. If filename is already present, it is overwritten. This function is deprecated and will be removed in a future version of ACE. Please use either ACE_Registry_ImpExp or ACE_Ini_ImpExp instead.

virtual int ACE_Configuration::find_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
VALUETYPE type
[pure virtual]


Retrieves the type of a named configuration value.

Parameters:
key Configuration section to look up the name in.
name Name of the configuration value to get the type of.
type Receives the data type of the named value, if it exists.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::get_binary_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
void *&  data,
size_t &  length
[pure virtual]


Gets a binary-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
data Receives a pointer to memory holding the binary data for the value. This method allocates the memory pointed to using operator new[]. The caller is responsible for freeing the memory using operator delete[].
length Receives the number of bytes in the value.
Return values:
0 for success; caller is responsible for freeing the returned memory.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::get_integer_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int &  value
[pure virtual]


Gets an integer-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
value Receives the configuration value if it exists and has type INTEGER.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

ACE_Section_Key_Internal * ACE_Configuration::get_internal_key const ACE_Configuration_Section_Key key  )  [protected]


Resolves the internal key from a section key.

virtual int ACE_Configuration::get_string_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
ACE_TString value
[pure virtual]


Gets a string-typed value.

Parameters:
key Configuration section to get the value from.
name Name of the configuration value to get.
value Receives the configuration value if it exists and has type STRING.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

int ACE_Configuration::import_config const ACE_TCHAR filename  )


Deprecated:
Imports the configuration database from filename. Any existing data is not removed. This function is deprecated and will be removed in a future version of ACE. Please use ACE_Registry_ImpExp or ACE_Ini_ImpExp instead.

virtual int ACE_Configuration::open_section const ACE_Configuration_Section_Key base,
const ACE_TCHAR sub_section,
int  create,
ACE_Configuration_Section_Key result
[pure virtual]


Opens a named section in an existing section.

Parameters:
base Existing section in which to open the named section.
sub_section Name of the section to open.
create If zero, the named section must exist. If non-zero, the named section will be created if it does not exist.
result Reference; receives the section key for the new section.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

bool ACE_Configuration::operator!= const ACE_Configuration rhs  )  const


Determine if the contents of this object are different from the contents of the object on the right hand side. Returns 0 (False) if they are equal and 1 (True) if they are not equal

ACE_Configuration& ACE_Configuration::operator= const ACE_Configuration rhs  )  [protected]


bool ACE_Configuration::operator== const ACE_Configuration rhs  )  const


Determine if the contents of this object is the same as the contents of the object on the right hand side. Returns 1 (True) if they are equal and 0 (False) if they are not equal

virtual int ACE_Configuration::remove_section const ACE_Configuration_Section_Key key,
const ACE_TCHAR sub_section,
int  recursive
[pure virtual]


Removes a named section.

Parameters:
key Section key to remove the named section from.
sub_section Name of the section to remove.
recursive If non zero, any subkeys below sub_section are removed as well.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::remove_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name
[pure virtual]


Removes a named value.

Parameters:
key Configuration section to remove the named value from.
name Name of the configuration value to remove.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

const ACE_Configuration_Section_Key & ACE_Configuration::root_section void   )  const [virtual]


Obtain a reference to the root section of this configuration.

virtual int ACE_Configuration::set_binary_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const void *  data,
size_t  length
[pure virtual]


Sets a binary-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
data Pointer to the binary data for the value.
length Number of bytes for the new value.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::set_integer_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int  value
[pure virtual]


Sets a integer-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value The integer to set the configuration value to.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

virtual int ACE_Configuration::set_string_value const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const ACE_TString value
[pure virtual]


Sets a string-typed value.

Parameters:
key Configuration section to set the value in.
name Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value The string to set the configuration value to.
Return values:
0 for success.
-1 for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Win32Registry, and ACE_Configuration_Heap.

int ACE_Configuration::validate_name const ACE_TCHAR name,
int  allow_path = 0
[protected]


Tests to see if <name> is valid. <name> must be < 255 characters and not contain the path separator '\', brackets [] or = (maybe just restrict to alphanumeric?) returns non zero if name is not valid. The path separator is allowed, except for the first character, if <allow_path> is true.

int ACE_Configuration::validate_value_name const ACE_TCHAR name  )  [protected]


Test to see if <name> is valid. The default value for a key can be unnamed, which means either <name> is == 0 or <name> == '` is valid. Otherwise, it calls validate_name() to test <name> for the same rules that apply to keys.


Member Data Documentation

ACE_TCHAR ACE_Configuration::NULL_String_ = '\0' [static]


* Represents the "NULL" string to simplify the internal logic.

ACE_Configuration_Section_Key ACE_Configuration::root_ [protected]



The documentation for this class was generated from the following files:
Generated on Sun Mar 5 15:39:13 2006 for ACE by  doxygen 1.3.9.1
