ACE_QoS_Decorator Class Reference

Concrete QoS Decorator. More...

#include <QoS_Decorator.h>

Inheritance diagram for ACE_QoS_Decorator:

Inheritance graph

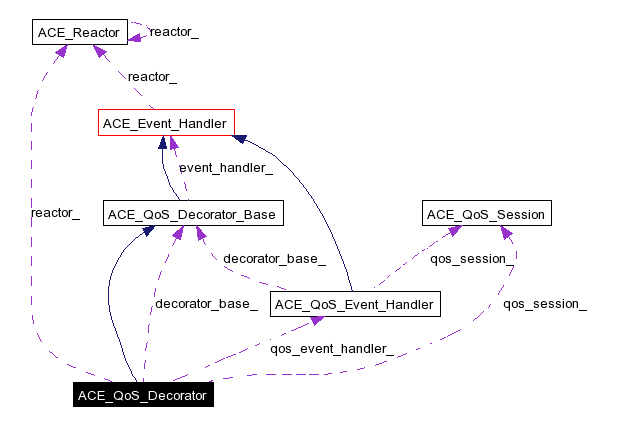

Collaboration diagram for ACE_QoS_Decorator:

Collaboration graph
List of all members.

Public Member Functions

 ACE_QoS_Decorator (void)
 ACE_QoS_Decorator (ACE_Event_Handler *event_handler, ACE_QoS_Session *qos_session, ACE_Reactor *reactor=ACE_Reactor::instance())
 ~ACE_QoS_Decorator (void)
virtual ACE_HANDLE get_handle (void) const
 Calls the base class get_handle ().
virtual int handle_input (ACE_HANDLE fd)
 Calls the base class handle_input ().
virtual int handle_qos (ACE_HANDLE fd)
 Calls the base class handle_qos ().
int init (void)

Private Attributes

 Requests on the class are forwarded to this base class;.

Detailed Description

Concrete QoS Decorator.

Decorates the ACE_Event_Handler to additionally handle QoS events uniformly for different QoS mechanisms like RAPI and GQoS.

Constructor & Destructor Documentation

ACE_QoS_Decorator::ACE_QoS_Decorator void   )


ACE_QoS_Decorator::ACE_QoS_Decorator ACE_Event_Handler event_handler,
ACE_QoS_Session qos_session,
ACE_Reactor reactor = ACE_Reactor::instance()


ACE_QoS_Decorator::~ACE_QoS_Decorator void   )


Member Function Documentation

ACE_HANDLE ACE_QoS_Decorator::get_handle void   )  const [virtual]

Calls the base class get_handle ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::handle_input ACE_HANDLE  fd  )  [virtual]

Calls the base class handle_input ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::handle_qos ACE_HANDLE  fd  )  [virtual]

Calls the base class handle_qos ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::init void   )

This method registers the QoS Event Handler with the Reactor to receive RAPI events.

Member Data Documentation

ACE_QoS_Decorator_Base* ACE_QoS_Decorator::decorator_base_ [private]

Requests on the class are forwarded to this base class;.

ACE_QoS_Event_Handler* ACE_QoS_Decorator::qos_event_handler_ [private]

Handles the QoS events and in that sense decorates the usual ACE_Event_Handler.

ACE_QoS_Session* ACE_QoS_Decorator::qos_session_ [private]

Passed to the ACE_QoS_Event_Handler for retrieving the RAPI session specific information like rapi_fd.

ACE_Reactor* ACE_QoS_Decorator::reactor_ [private]

If the application wants to use an instance of Reactor other than the Singleton one.

Reimplemented from ACE_Event_Handler.

The documentation for this class was generated from the following files:
