TAO_ORB_Core_Static_Resources Class Reference

The static (global) resoures of all ORB cores. More...

#include <ORB_Core.h>

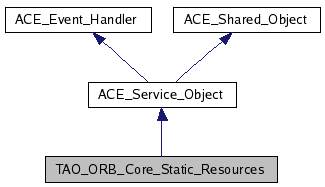

Inheritance diagram for TAO_ORB_Core_Static_Resources:

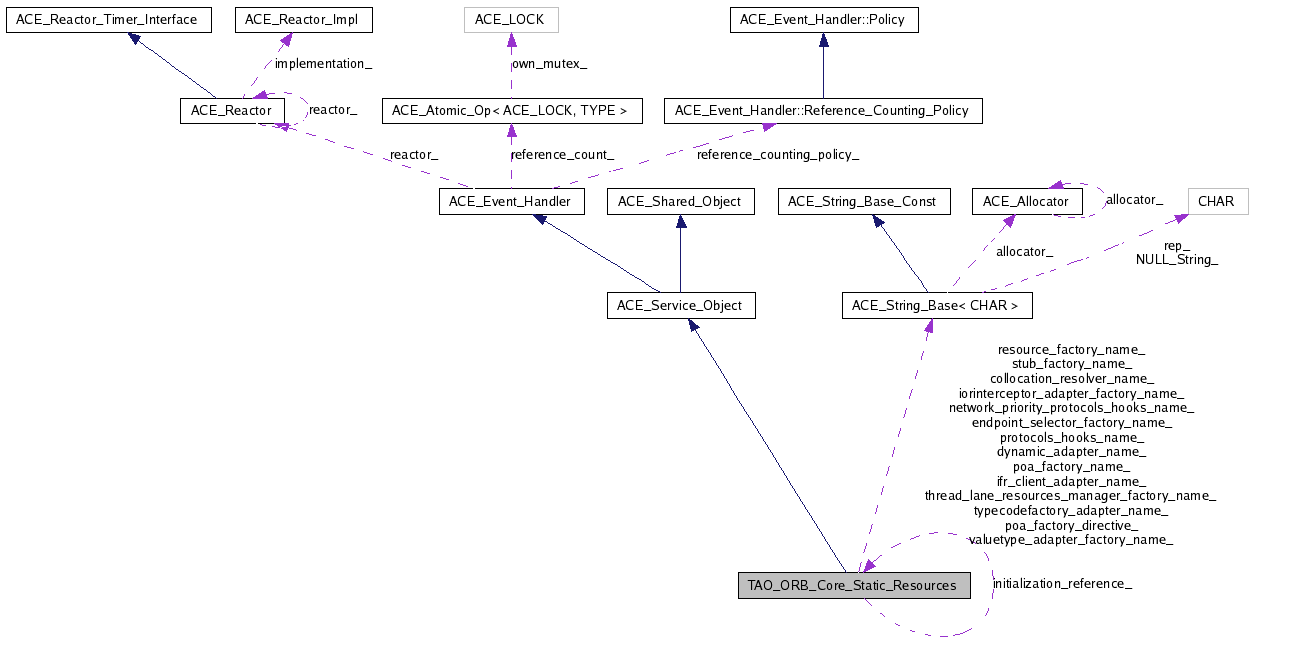

[legend]Collaboration diagram for TAO_ORB_Core_Static_Resources:

[legend]List of all members.

Public Member Functions
	TAO_ORB_Core_Static_Resources (void)
	Constructor.
TAO_ORB_Core_Static_Resources &	operator= (const TAO_ORB_Core_Static_Resources &)
Static Public Member Functions
static TAO_ORB_Core_Static_Resources *	instance (void)
	Return the context-specific singleton instance.
Public Attributes
TAO_ORB_Core::Sync_Scope_Hook	sync_scope_hook_
ACE_CString	protocols_hooks_name_
ACE_CString	network_priority_protocols_hooks_name_
TAO_ORB_Core::Timeout_Hook	timeout_hook_
	The hook to be set for the RelativeRoundtripTimeoutPolicy.
TAO_ORB_Core::Timeout_Hook	connection_timeout_hook_
	The hook to be set for the ConnectionTimeoutPolicy.
ACE_CString	endpoint_selector_factory_name_
ACE_CString	thread_lane_resources_manager_factory_name_
ACE_CString	collocation_resolver_name_
ACE_CString	stub_factory_name_
ACE_CString	resource_factory_name_
ACE_CString	dynamic_adapter_name_
ACE_CString	ifr_client_adapter_name_
ACE_CString	typecodefactory_adapter_name_
ACE_CString	iorinterceptor_adapter_factory_name_
ACE_CString	valuetype_adapter_factory_name_
ACE_CString	poa_factory_name_
ACE_CString	poa_factory_directive_
TAO_ORB_Core::Timeout_Hook	alt_connection_timeout_hook_
	An alternative hook to be set for the ConnectionTimeoutPolicy.
Static Private Attributes
static TAO_ORB_Core_Static_Resources *	initialization_reference_

---

Detailed Description

The static (global) resoures of all ORB cores.

This class is used by the ORB_Core to store the resources global to all ORB_Cores. All instance variables that would have been declared "static" in TAO_ORB_Core, should be declared in this class to avoid the "static initialization order fiasco" as described in http://www.parashift.com/c++-faq-lite/ctors.html#faq-10.11. Briefly, this is the problem that occurs if any static initializers in any other code call into set static members of TAO_ORB_Core. Since the order in which these initializers execute is unspecified, uninitialized members can be accessed.

---

Constructor & Destructor Documentation

TAO_ORB_Core_Static_Resources::TAO_ORB_Core_Static_Resources

(

void

)

Constructor.

---

Member Function Documentation

TAO_ORB_Core_Static_Resources * TAO_ORB_Core_Static_Resources::instance

(

void

)

[static]

Return the context-specific singleton instance.

TAO_ORB_Core_Static_Resources & TAO_ORB_Core_Static_Resources::operator=

(

const TAO_ORB_Core_Static_Resources &

)

---

Member Data Documentation

TAO_ORB_Core::Sync_Scope_Hook TAO_ORB_Core_Static_Resources::sync_scope_hook_

ACE_CString TAO_ORB_Core_Static_Resources::protocols_hooks_name_

Name of the protocols_hooks that needs to be instantiated. The default value is "Protocols_Hooks". If RTCORBA option is set, its value will be set to be "RT_Protocols_Hooks".

ACE_CString TAO_ORB_Core_Static_Resources::network_priority_protocols_hooks_name_

Name of the network_priority_protocols_hooks that needs to be instantiated.

TAO_ORB_Core::Timeout_Hook TAO_ORB_Core_Static_Resources::timeout_hook_

The hook to be set for the RelativeRoundtripTimeoutPolicy.

TAO_ORB_Core::Timeout_Hook TAO_ORB_Core_Static_Resources::connection_timeout_hook_

The hook to be set for the ConnectionTimeoutPolicy.

ACE_CString TAO_ORB_Core_Static_Resources::endpoint_selector_factory_name_

Name of the endpoint selector factory that needs to be instantiated. The default value is "Default_Endpoint_Selector_Factory". If TAO_RTCORBA is linked, the set_endpoint_selector_factory will be called to set the value to be "RT_Endpoint_Selector_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::thread_lane_resources_manager_factory_name_

Name of the thread lane resources manager that needs to be instantiated. The default value is "Default_Thread_Lane_Resources_Manager_Factory". If TAO_RTCORBA is linked, the set_thread_lane_resources_manager will be called to set the value to be "RT_Thread_Lane_Resources_Manager_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::collocation_resolver_name_

Name of the collocation resolver that needs to be instantiated. The default value is "Default_Collocation_Resolver". If TAO_RTCORBA is linked, the set_collocation_resolver will be called to set the value to be "RT_Collocation_Resolver".

ACE_CString TAO_ORB_Core_Static_Resources::stub_factory_name_

Name of the stub factory that needs to be instantiated. The default value is "Default_Stub_Factory". If TAO_RTCORBA is linked, the set_stub_factory will be called to set the value to be "RT_Stub_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::resource_factory_name_

Name of the resource factory that needs to be instantiated. The default value is "Resource_Factory". If TAO_Strategies is linked, the set_resource_factory will be called to set the value to be "Advanced_Resource_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::dynamic_adapter_name_

Name of the service object for DII request creation that needs to be instantiated. The default value is "Dynamic_Adaper". If TAO_DynamicInterface is linked, dynamic_adapter_name() will be called to set the value to "Concrete_Dynamic_Adapter".

ACE_CString TAO_ORB_Core_Static_Resources::ifr_client_adapter_name_

Name of the service object for functions that make calls on the Interface Repository. The default value is "IFR_Client_Adaper". If TAO_IFR_CLient is linked, ifr_client_adapter_name() will be called to set the value to "Concrete_IFR_Client_Adapter".

ACE_CString TAO_ORB_Core_Static_Resources::typecodefactory_adapter_name_

Name of the service object used by the ORB create_*_tc functions. The default value is "TypeCodeFactory_Adapter". If the TypeCodeFactory library is linked, the corresponding accessor function typecodefactory_adapter_name() will be called to set the value to "Concrete_TypeCodeFactory_Adapter".

ACE_CString TAO_ORB_Core_Static_Resources::iorinterceptor_adapter_factory_name_

Name of the factory object used to adapt function calls on the PortableInterceptor interfaces IORInfo and IORInterceptor. The default value is "IORInterceptor_Adapter_Factory". If the IORInterceptor library is linked, the corresponding accessor function iorinterceptor_adapter_factory_name() will be called to set the value to "Concrete_IORInterceptor_Adapter_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::valuetype_adapter_factory_name_

Name of the factory object used to adapt function calls on the valuetype-related interfaces. The default value is "Valuetype_Adapter_Factory". If the Valuetype library is linked, the corresponding accessor function valuetype_adapter_factory_name() will be called to set the value to "Concrete_Valuetype_Adapter_Factory".

ACE_CString TAO_ORB_Core_Static_Resources::poa_factory_name_

Name of the service object used to create the RootPOA. The default value is "TAO_POA". If TAO_RTCORBA is loaded, this will be changed to TAO_RT_POA so that a POA equipped with realtime extensions will be returned.

ACE_CString TAO_ORB_Core_Static_Resources::poa_factory_directive_

The service configurator directive used to load poa_factory_name_ dynamically.

TAO_ORB_Core::Timeout_Hook TAO_ORB_Core_Static_Resources::alt_connection_timeout_hook_

An alternative hook to be set for the ConnectionTimeoutPolicy.

TAO_ORB_Core_Static_Resources * TAO_ORB_Core_Static_Resources::initialization_reference_ [static, private]

Initial value:

  TAO_ORB_Core_Static_Resources::instance ()

Mostly unused variable whose sole purpose is to enforce the instantiation of a TAO_ORB_Core_Static_Resources instance at initialization time.

---

The documentation for this class was generated from the following files:

• ORB_Core.h
• ORB_Core.cpp

---
