ACE_UPIPE_Acceptor Class Reference

Defines the format and interface for the listener side of the ACE_UPIPE_Stream. More...

#include <UPIPE_Acceptor.h>

Inheritance diagram for ACE_UPIPE_Acceptor:

Inheritance graph
[legend]

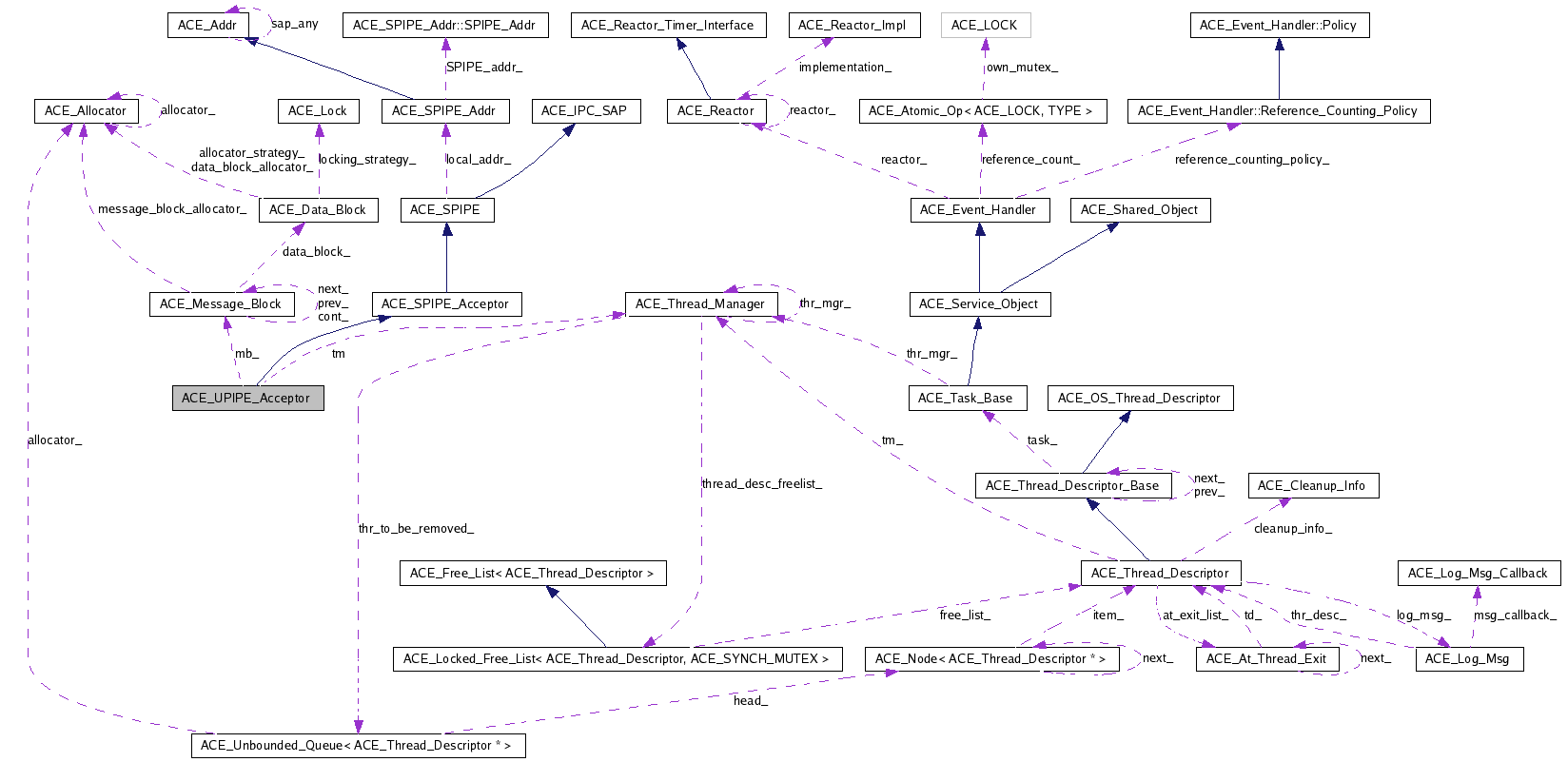

Collaboration diagram for ACE_UPIPE_Acceptor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_UPIPE_Acceptor (void)
 Default constructor.
 ACE_UPIPE_Acceptor (const ACE_UPIPE_Addr &local_sap, int reuse_addr=0)
 Initialize passive endpoint.
int open (const ACE_UPIPE_Addr &local_sap, int reuse_addr=0)
 Initialize passive endpoint.
 ~ACE_UPIPE_Acceptor (void)
 Close down and release resources.
int close (void)
 Close down and release resources.
int remove (void)
int accept (ACE_UPIPE_Stream &server_stream, ACE_UPIPE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0)
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_Thread_Manager tm
 Manage threads.
ACE_Message_Block mb_
 To confirm connection establishment.

Detailed Description

Defines the format and interface for the listener side of the ACE_UPIPE_Stream.


Constructor & Destructor Documentation

ACE_UPIPE_Acceptor::ACE_UPIPE_Acceptor ( void   )

Default constructor.

ACE_UPIPE_Acceptor::ACE_UPIPE_Acceptor ( const ACE_UPIPE_Addr local_sap,
int  reuse_addr = 0
)

Initialize passive endpoint.

ACE_UPIPE_Acceptor::~ACE_UPIPE_Acceptor ( void   )

Close down and release resources.


Member Function Documentation

int ACE_UPIPE_Acceptor::open ( const ACE_UPIPE_Addr local_sap,
int  reuse_addr = 0
)

Initialize passive endpoint.

int ACE_UPIPE_Acceptor::close ( void   )

Close down and release resources.

Reimplemented from ACE_SPIPE_Acceptor.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_UPIPE_Acceptor::remove ( void   )

Close down and release resources and remove the underlying SPIPE rendezvous point.

Reimplemented from ACE_SPIPE_Acceptor.

int ACE_UPIPE_Acceptor::accept ( ACE_UPIPE_Stream server_stream,
ACE_UPIPE_Addr remote_addr = 0,
ACE_Time_Value timeout = 0,
int  restart = 1,
int  reset_new_handle = 0
)

Accept a new data transfer connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. restart == 1 means "restart if interrupted."

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_UPIPE_Acceptor::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_SPIPE_Acceptor.


Member Data Documentation

ACE_UPIPE_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE_Acceptor.

ACE_Thread_Manager ACE_UPIPE_Acceptor::tm [private]

Manage threads.

ACE_Message_Block ACE_UPIPE_Acceptor::mb_ [private]

To confirm connection establishment.


The documentation for this class was generated from the following files:
Generated on Mon Jun 25 16:28:50 2007 for ACE by  doxygen 1.5.2-2
