TAO_Default_Server_Strategy_Factory Class Reference

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation. More...

#include <default_server.h>

Inheritance diagram for TAO_Default_Server_Strategy_Factory:

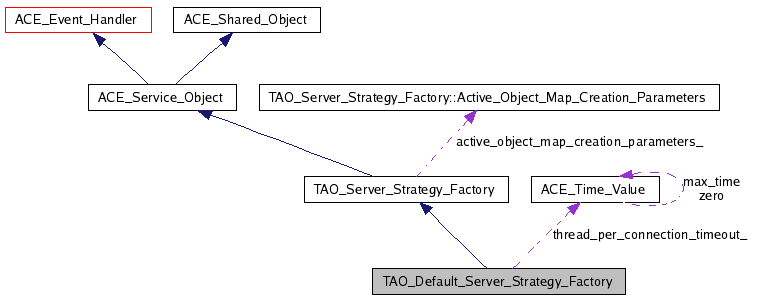

[legend]Collaboration diagram for TAO_Default_Server_Strategy_Factory:

[legend]List of all members.


Public Member Functions
	TAO_Default_Server_Strategy_Factory (void)
virtual	~TAO_Default_Server_Strategy_Factory (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	open (TAO_ORB_Core *)
virtual int	enable_poa_locking (void)
	Enable POA locking?
virtual int	activate_server_connections (void)
	Are server connections active (i.e. run in their own thread).
virtual int	thread_per_connection_timeout (ACE_Time_Value &timeout)
virtual int	server_connection_thread_flags (void)
	The thread activation parameters.
virtual int	server_connection_thread_count (void)
int	parse_args (int argc, ACE_TCHAR *argv[])
Protected Types
	TAO_NULL_LOCK
	TAO_THREAD_LOCK
enum	Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }
Protected Member Functions
void	tokenize (ACE_TCHAR *flag_string)
void	report_option_value_error (const ACE_TCHAR option_name, const ACE_TCHAR option_value)
Protected Attributes
int	activate_server_connections_
	Should the server connection handlers run in their own thread?
int	thread_flags_
	Default thread flags passed to thr_create().
Lock_Type	poa_lock_type_
	The type of lock to be returned by <create_poa_lock()>.
int	thread_per_connection_use_timeout_
	The timeout flag and value for the thread-per-connection model.
ACE_Time_Value	thread_per_connection_timeout_

Detailed Description

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation.

Member Enumeration Documentation

enum TAO_Default_Server_Strategy_Factory::Lock_Type [protected]

Enumerator:

TAO_NULL_LOCK
TAO_THREAD_LOCK

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Default_Server_Strategy_Factory::TAO_Default_Server_Strategy_Factory ( void )

TAO_Default_Server_Strategy_Factory::~TAO_Default_Server_Strategy_Factory ( void ) [virtual]

Member Function Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections ( void ) [virtual]

Are server connections active (i.e. run in their own thread).

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::enable_poa_locking ( void ) [virtual]

Enable POA locking?

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			`[virtual]`

Reimplemented from ACE_Shared_Object.

int TAO_Default_Server_Strategy_Factory::open ( TAO_ORB_Core * ) [virtual]

Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the streategies herein might need some of that information.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)

Parse the arguments, check the documentation in $TAO_ROOT/docs/Options.html for details

void TAO_Default_Server_Strategy_Factory::report_option_value_error	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)			`[protected]`

int TAO_Default_Server_Strategy_Factory::server_connection_thread_count ( void ) [virtual]

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::server_connection_thread_flags ( void ) [virtual]

The thread activation parameters.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout ( ACE_Time_Value & timeout ) [virtual]

Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Reimplemented from TAO_Server_Strategy_Factory.

void TAO_Default_Server_Strategy_Factory::tokenize ( ACE_TCHAR * flag_string ) [protected]
