TAO_Muxed_TMS Class Reference

#include <Muxed_TMS.h>

Inheritance diagram for TAO_Muxed_TMS:

Inheritance graph

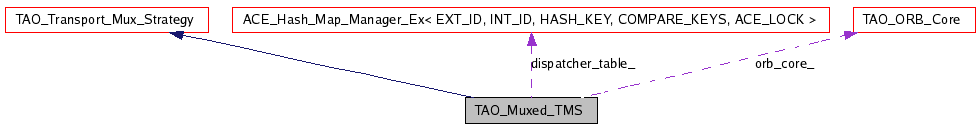

Collaboration diagram for TAO_Muxed_TMS:

Collaboration graph
List of all members.

Public Member Functions

 TAO_Muxed_TMS (TAO_Transport *transport)
virtual ~TAO_Muxed_TMS (void)
virtual CORBA::ULong request_id (void)
virtual int bind_dispatcher (CORBA::ULong request_id, TAO_Reply_Dispatcher *rh)
virtual int unbind_dispatcher (CORBA::ULong request_id)
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual bool idle_after_send (void)
virtual bool idle_after_reply (void)
virtual void connection_closed (void)

Protected Types

typedef ACE_Hash_Map_Manager_Ex<
CORBA::ULong, TAO_Reply_Dispatcher *,
ACE_Hash< CORBA::ULong >,
ACE_Equal_To< CORBA::ULong >,

Protected Member Functions

int clear_cache (void)

Protected Attributes

CORBA::ULong request_id_generator_
TAO_ORB_Core *const orb_core_
 Table of <Request ID, Reply Dispatcher> pairs.

Detailed Description

Using this strategy a single connection can have multiple outstanding requests. @ Can the performance of the demuxer be made more predictable, for example, using the request id as an active demux key?
Check the OMG resolutions about bidirectional connections, it is possible that the request ids can only assume even or odd values.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<CORBA::ULong, TAO_Reply_Dispatcher *, ACE_Hash <CORBA::ULong>, ACE_Equal_To <CORBA::ULong>, ACE_Null_Mutex> TAO_Muxed_TMS::REQUEST_DISPATCHER_TABLE [protected]

Constructor & Destructor Documentation



TAO_Muxed_TMS::~TAO_Muxed_TMS ( void   )  [virtual]


Member Function Documentation

int TAO_Muxed_TMS::bind_dispatcher ( CORBA::ULong  request_id,
TAO_Reply_Dispatcher rh
) [virtual]

Bind the dispatcher with the request id. Commonalities in the derived class implementations is kept here.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::clear_cache ( void   )  [protected]

void TAO_Muxed_TMS::connection_closed ( void   )  [virtual]

The transport object has closed the connection, inform all Reply dispatchers and waiting strategies.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::dispatch_reply ( TAO_Pluggable_Reply_Params params  )  [virtual]

Dispatch the reply for <request_id>, cleanup any resources allocated for that request.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_reply ( void   )  [virtual]

Request is sent and the reply is received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_send ( void   )  [virtual]

Request has been just sent, but the reply is not received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

CORBA::ULong TAO_Muxed_TMS::request_id ( void   )  [virtual]

Generate and return an unique request id for the current invocation.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::unbind_dispatcher ( CORBA::ULong  request_id  )  [virtual]

Unbind the dispatcher, the client is no longer waiting for the request, for example, because the request timedout. The strategy can (must) cleanup any resources associated with the request. A later reply for that request should be ignored.

Implements TAO_Transport_Mux_Strategy.

Member Data Documentation

REQUEST_DISPATCHER_TABLE TAO_Muxed_TMS::dispatcher_table_ [protected]

Table of <Request ID, Reply Dispatcher> pairs.

TAO_ORB_Core* const TAO_Muxed_TMS::orb_core_ [protected]

Keep track of the orb core pointer. We need to this to create the Reply Dispatchers.

CORBA::ULong TAO_Muxed_TMS::request_id_generator_ [protected]

Used to generate a different request_id on each call to request_id().

The documentation for this class was generated from the following files:
