ACE_OutputCDR Class Reference

A CDR stream for writing, i.e. for marshalling. More...

#include <CDR_Stream.h>

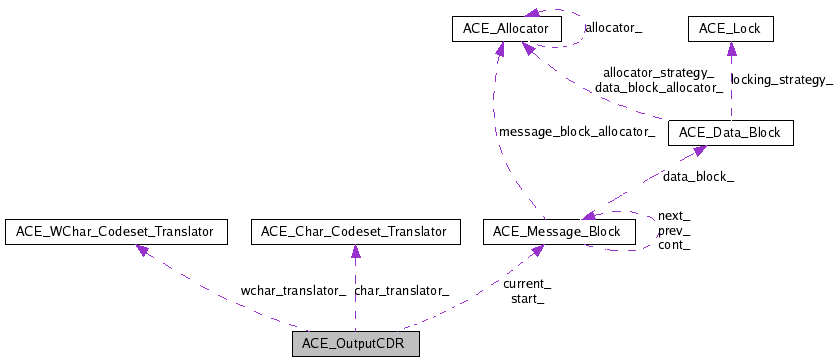

Collaboration diagram for ACE_OutputCDR:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_OutputCDR (size_t size=0, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *buffer_allocator=0, ACE_Allocator *data_block_allocator=0, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=ACE_DEFAULT_CDR_MEMCPY_TRADEOFF, ACE_CDR::Octet major_version=ACE_CDR_GIOP_MAJOR_VERSION, ACE_CDR::Octet minor_version=ACE_CDR_GIOP_MINOR_VERSION)
 ACE_OutputCDR (char *data, size_t size, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *buffer_allocator=0, ACE_Allocator *data_block_allocator=0, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=ACE_DEFAULT_CDR_MEMCPY_TRADEOFF, ACE_CDR::Octet giop_major_version=ACE_CDR_GIOP_MAJOR_VERSION, ACE_CDR::Octet giop_minor_version=ACE_CDR_GIOP_MINOR_VERSION)
 ACE_OutputCDR (ACE_Data_Block *data_block, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=ACE_DEFAULT_CDR_MEMCPY_TRADEOFF, ACE_CDR::Octet giop_major_version=ACE_CDR_GIOP_MAJOR_VERSION, ACE_CDR::Octet giop_minor_version=ACE_CDR_GIOP_MINOR_VERSION)
 ACE_OutputCDR (ACE_Message_Block *data, int byte_order=ACE_CDR_BYTE_ORDER, size_t memcpy_tradeoff=ACE_DEFAULT_CDR_MEMCPY_TRADEOFF, ACE_CDR::Octet giop_major_version=ACE_CDR_GIOP_MAJOR_VERSION, ACE_CDR::Octet giop_minor_version=ACE_CDR_GIOP_MINOR_VERSION)
 ~ACE_OutputCDR (void)
 destructor
bool good_bit (void) const
 Returns false if an error has ocurred.
void reset (void)
 Reuse the CDR stream to write on the old buffer.
size_t total_length (void) const
 Add the length of each message block in the chain.
const ACE_Message_Blockbegin (void) const
const ACE_Message_Blockend (void) const
 Return the last message in the chain that is is use.
const ACE_Message_Blockcurrent (void) const
 Return the <current_> message block in chain.
int consolidate (void)
 Replace the message block chain with a single message block.
const char * buffer (void) const
size_t length (void) const
int align_write_ptr (size_t alignment)
ACE_Char_Codeset_Translatorchar_translator (void) const
 Access the codeset translators. They can be null!
ACE_WChar_Codeset_Translatorwchar_translator (void) const
void char_translator (ACE_Char_Codeset_Translator *)
 Set the char codeset translator.
void wchar_translator (ACE_WChar_Codeset_Translator *)
 Set the wchar codeset translator.
size_t current_alignment (void) const
int adjust (size_t size, char *&buf)
int adjust (size_t size, size_t align, char *&buf)
bool do_byte_swap (void) const
int byte_order (void) const
void reset_byte_order (int byte_order)
int set_version (ACE_CDR::Octet major, ACE_CDR::Octet minor)
 set GIOP version info
int get_version (ACE_CDR::Octet &major, ACE_CDR::Octet &minor)
 Set the underlying GIOP version..
ACE_CDR::Boolean write_boolean (ACE_CDR::Boolean x)
ACE_CDR::Boolean write_char (ACE_CDR::Char x)
ACE_CDR::Boolean write_wchar (ACE_CDR::WChar x)
ACE_CDR::Boolean write_octet (ACE_CDR::Octet x)
ACE_CDR::Boolean write_short (ACE_CDR::Short x)
ACE_CDR::Boolean write_ushort (ACE_CDR::UShort x)
ACE_CDR::Boolean write_long (ACE_CDR::Long x)
ACE_CDR::Boolean write_ulong (ACE_CDR::ULong x)
ACE_CDR::Boolean write_longlong (const ACE_CDR::LongLong &x)
ACE_CDR::Boolean write_ulonglong (const ACE_CDR::ULongLong &x)
ACE_CDR::Boolean write_float (ACE_CDR::Float x)
ACE_CDR::Boolean write_double (const ACE_CDR::Double &x)
ACE_CDR::Boolean write_longdouble (const ACE_CDR::LongDouble &x)
ACE_CDR::Boolean replace (ACE_CDR::Long x, char *loc)
ACE_CDR::Boolean write_string (const ACE_CDR::Char *x)
 For string we offer methods that accept a precomputed length.
ACE_CDR::Boolean write_string (ACE_CDR::ULong len, const ACE_CDR::Char *x)
ACE_CDR::Boolean write_string (const ACE_CString &x)
ACE_CDR::Boolean write_wstring (const ACE_CDR::WChar *x)
ACE_CDR::Boolean write_wstring (ACE_CDR::ULong length, const ACE_CDR::WChar *x)
ACE_CDR::Boolean write_boolean_array (const ACE_CDR::Boolean *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_char_array (const ACE_CDR::Char *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_wchar_array (const ACE_CDR::WChar *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_octet_array (const ACE_CDR::Octet *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_short_array (const ACE_CDR::Short *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_ushort_array (const ACE_CDR::UShort *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_long_array (const ACE_CDR::Long *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_ulong_array (const ACE_CDR::ULong *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_longlong_array (const ACE_CDR::LongLong *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_ulonglong_array (const ACE_CDR::ULongLong *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_float_array (const ACE_CDR::Float *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_double_array (const ACE_CDR::Double *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_longdouble_array (const ACE_CDR::LongDouble *x, ACE_CDR::ULong length)
ACE_CDR::Boolean write_octet_array_mb (const ACE_Message_Block *mb)
ACE_CDR::Boolean append_boolean (ACE_InputCDR &)
ACE_CDR::Boolean append_char (ACE_InputCDR &)
ACE_CDR::Boolean append_wchar (ACE_InputCDR &)
ACE_CDR::Boolean append_octet (ACE_InputCDR &)
ACE_CDR::Boolean append_short (ACE_InputCDR &)
ACE_CDR::Boolean append_ushort (ACE_InputCDR &)
ACE_CDR::Boolean append_long (ACE_InputCDR &)
ACE_CDR::Boolean append_ulong (ACE_InputCDR &)
ACE_CDR::Boolean append_longlong (ACE_InputCDR &)
ACE_CDR::Boolean append_ulonglong (ACE_InputCDR &)
ACE_CDR::Boolean append_float (ACE_InputCDR &)
ACE_CDR::Boolean append_double (ACE_InputCDR &)
ACE_CDR::Boolean append_longdouble (ACE_InputCDR &)
ACE_CDR::Boolean append_wstring (ACE_InputCDR &)
ACE_CDR::Boolean append_string (ACE_InputCDR &)

Static Public Member Functions

static void wchar_maxbytes (int)
static int wchar_maxbytes (void)
 access the serialized size of wchars.

Protected Attributes

ACE_CDR::Octet major_version_
 GIOP version information.
ACE_CDR::Octet minor_version_
ACE_Char_Codeset_Translatorchar_translator_
 If not nil, invoke for translation of character and string data.
ACE_WChar_Codeset_Translatorwchar_translator_

Static Protected Attributes

static int wchar_maxbytes_ = sizeof (ACE_CDR::WChar)

Private Member Functions

ACE_Message_Blockfind (char *loc)
 ACE_OutputCDR (const ACE_OutputCDR &rhs)
 disallow copying...
ACE_OutputCDRoperator= (const ACE_OutputCDR &rhs)
ACE_CDR::Boolean write_1 (const ACE_CDR::Octet *x)
ACE_CDR::Boolean write_2 (const ACE_CDR::UShort *x)
ACE_CDR::Boolean write_4 (const ACE_CDR::ULong *x)
ACE_CDR::Boolean write_8 (const ACE_CDR::ULongLong *x)
ACE_CDR::Boolean write_16 (const ACE_CDR::LongDouble *x)
ACE_CDR::Boolean write_array (const void *x, size_t size, size_t align, ACE_CDR::ULong length)
ACE_CDR::Boolean write_wchar_array_i (const ACE_CDR::WChar *x, ACE_CDR::ULong length)
int grow_and_adjust (size_t size, size_t align, char *&buf)

Private Attributes

ACE_Message_Block start_
 The start of the chain of message blocks.
ACE_Message_Blockcurrent_
 The current block in the chain where we are writing.
size_t current_alignment_
bool current_is_writable_
bool do_byte_swap_
bool good_bit_
 Set to false when an error ocurrs.
size_t const memcpy_tradeoff_
 Break-even point for copying.

Friends

class ACE_Char_Codeset_Translator
class ACE_WChar_Codeset_Translator
class ACE_InputCDR

Classes

struct  from_boolean
struct  from_char
struct  from_octet
struct  from_string
struct  from_wchar
struct  from_wstring

Detailed Description

A CDR stream for writing, i.e. for marshalling.

This class is based on the the CORBA spec for Java (98-02-29), java class omg.org.CORBA.portable.OutputStream. It diverts in a few ways: + Operations taking arrays don't have offsets, because in C++ it is easier to describe an array starting from x+offset. + Operations return an error status, because exceptions are not widely available in C++ (yet).


Constructor & Destructor Documentation

ACE_OutputCDR::ACE_OutputCDR ( size_t  size = 0,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_Allocator buffer_allocator = 0,
ACE_Allocator data_block_allocator = 0,
ACE_Allocator message_block_allocator = 0,
size_t  memcpy_tradeoff = ACE_DEFAULT_CDR_MEMCPY_TRADEOFF,
ACE_CDR::Octet  major_version = ACE_CDR_GIOP_MAJOR_VERSION,
ACE_CDR::Octet  minor_version = ACE_CDR_GIOP_MINOR_VERSION
)

Default constructor, allocates <size> bytes in the internal buffer, if <size> == 0 it allocates the default size.

ACE_OutputCDR::ACE_OutputCDR ( char *  data,
size_t  size,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_Allocator buffer_allocator = 0,
ACE_Allocator data_block_allocator = 0,
ACE_Allocator message_block_allocator = 0,
size_t  memcpy_tradeoff = ACE_DEFAULT_CDR_MEMCPY_TRADEOFF,
ACE_CDR::Octet  giop_major_version = ACE_CDR_GIOP_MAJOR_VERSION,
ACE_CDR::Octet  giop_minor_version = ACE_CDR_GIOP_MINOR_VERSION
)

Create an output stream from an arbitrary buffer, care must be exercised with alignment, because this contructor will align if needed. In this case data will not point to the start of the output stream. begin()->rd_ptr() points to the start of the output stream. See ACE_ptr_align_binary() to properly align a pointer and use ACE_CDR::MAX_ALIGNMENT for the correct alignment.

ACE_OutputCDR::ACE_OutputCDR ( ACE_Data_Block data_block,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_Allocator message_block_allocator = 0,
size_t  memcpy_tradeoff = ACE_DEFAULT_CDR_MEMCPY_TRADEOFF,
ACE_CDR::Octet  giop_major_version = ACE_CDR_GIOP_MAJOR_VERSION,
ACE_CDR::Octet  giop_minor_version = ACE_CDR_GIOP_MINOR_VERSION
)

Create an output stream from an arbitrary data block, care must be exercised with alignment, because this contructor will align if needed. In this case data_block will not point to the start of the output stream. begin()->rd_ptr() points to the start off the output stream. See ACE_ptr_align_binary() to properly align a pointer and use ACE_CDR::MAX_ALIGNMENT for the correct alignment.

ACE_OutputCDR::ACE_OutputCDR ( ACE_Message_Block data,
int  byte_order = ACE_CDR_BYTE_ORDER,
size_t  memcpy_tradeoff = ACE_DEFAULT_CDR_MEMCPY_TRADEOFF,
ACE_CDR::Octet  giop_major_version = ACE_CDR_GIOP_MAJOR_VERSION,
ACE_CDR::Octet  giop_minor_version = ACE_CDR_GIOP_MINOR_VERSION
)

Build a CDR stream with an initial Message_Block chain, it will not* remove data, since it did not allocate it.

ACE_INLINE ACE_OutputCDR::~ACE_OutputCDR ( void   )

destructor

ACE_OutputCDR::ACE_OutputCDR ( const ACE_OutputCDR rhs  )  [private]

disallow copying...


Member Function Documentation

ACE_INLINE int ACE_OutputCDR::adjust ( size_t  size,
size_t  align,
char *&  buf
)

As above, but now the size and alignment requirements may be different.

ACE_INLINE int ACE_OutputCDR::adjust ( size_t  size,
char *&  buf
)

Returns (in <buf>) the next position in the buffer aligned to <size>, it advances the Message_Block wr_ptr past the data (i.e., <buf> + <size>). If necessary it grows the Message_Block buffer. Sets the good_bit to false and returns a -1 on failure.

ACE_INLINE int ACE_OutputCDR::align_write_ptr ( size_t  alignment  )

Utility function to allow the user more flexibility. Pads the stream up to the nearest <alignment>-byte boundary. Argument MUST be a power of 2. Returns 0 on success and -1 on failure.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_boolean ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_char ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_double ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_float ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_long ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_longdouble ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_longlong ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_octet ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_short ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_string ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_ulong ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_ulonglong ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_ushort ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_wchar ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::append_wstring ( ACE_InputCDR  )

Return 0 on failure and 1 on success.

ACE_INLINE const ACE_Message_Block * ACE_OutputCDR::begin ( void   )  const

Return the start of the message block chain for this CDR stream.

Note:
The complete CDR stream is represented by a chain of message blocks.

ACE_INLINE const char * ACE_OutputCDR::buffer ( void   )  const

Access the underlying buffer (read only).

Note:
This method only returns a pointer to the first block in the chain.

ACE_INLINE int ACE_OutputCDR::byte_order ( void   )  const

If <do_byte_swap> returns 0, this returns ACE_CDR_BYTE_ORDER else it returns !ACE_CDR_BYTE_ORDER.

ACE_INLINE void ACE_OutputCDR::char_translator ( ACE_Char_Codeset_Translator  )

Set the char codeset translator.

ACE_INLINE ACE_Char_Codeset_Translator * ACE_OutputCDR::char_translator ( void   )  const

Access the codeset translators. They can be null!

int ACE_OutputCDR::consolidate ( void   )

Replace the message block chain with a single message block.

Upon successful completion, there will be a single message block containing the data from the complete message block chain.

Note:
The only expected error is to run out of memory.

ACE_INLINE const ACE_Message_Block * ACE_OutputCDR::current ( void   )  const

Return the <current_> message block in chain.

ACE_INLINE size_t ACE_OutputCDR::current_alignment ( void   )  const

Return alignment of the wr_ptr(), with respect to the start of the CDR stream. This is not the same as the alignment of current->wr_ptr()!

ACE_INLINE bool ACE_OutputCDR::do_byte_swap ( void   )  const

If non-zero then this stream is writing in non-native byte order, this is only meaningful if ACE_ENABLE_SWAP_ON_WRITE is defined.

ACE_INLINE const ACE_Message_Block * ACE_OutputCDR::end ( void   )  const

Return the last message in the chain that is is use.

ACE_Message_Block * ACE_OutputCDR::find ( char *  loc  )  [private]

ACE_INLINE int ACE_OutputCDR::get_version ( ACE_CDR::Octet major,
ACE_CDR::Octet minor
)

Set the underlying GIOP version..

ACE_INLINE bool ACE_OutputCDR::good_bit ( void   )  const

Returns false if an error has ocurred.

Note:
The only expected error is to run out of memory.

int ACE_OutputCDR::grow_and_adjust ( size_t  size,
size_t  align,
char *&  buf
) [private]

Grow the CDR stream. When it returns <buf> contains a pointer to memory in the CDR stream, with at least <size> bytes ahead of it and aligned to an <align> boundary. It moved the <wr_ptr> to <buf + size>.

ACE_INLINE size_t ACE_OutputCDR::length ( void   )  const

Return the size of first message block in the block chain.

Note:
This method only returns information about the first block in the chain.

ACE_OutputCDR& ACE_OutputCDR::operator= ( const ACE_OutputCDR rhs  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::replace ( ACE_CDR::Long  x,
char *  loc
)

ACE_INLINE void ACE_OutputCDR::reset ( void   )

Reuse the CDR stream to write on the old buffer.

ACE_INLINE void ACE_OutputCDR::reset_byte_order ( int  byte_order  )

For use by a gateway, which creates the output stream for the reply to the client in its native byte order, but which must send the reply in the byte order of the target's reply to the gateway.

ACE_INLINE int ACE_OutputCDR::set_version ( ACE_CDR::Octet  major,
ACE_CDR::Octet  minor
)

set GIOP version info

ACE_INLINE size_t ACE_OutputCDR::total_length ( void   )  const

Add the length of each message block in the chain.

int ACE_OutputCDR::wchar_maxbytes ( void   )  [static]

access the serialized size of wchars.

void ACE_OutputCDR::wchar_maxbytes ( int   )  [static]

set the global size of serialized wchars. This may be different than the size of a wchar_t.

ACE_INLINE void ACE_OutputCDR::wchar_translator ( ACE_WChar_Codeset_Translator  )

Set the wchar codeset translator.

ACE_INLINE ACE_WChar_Codeset_Translator * ACE_OutputCDR::wchar_translator ( void   )  const

ACE_CDR::Boolean ACE_OutputCDR::write_1 ( const ACE_CDR::Octet x  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::write_16 ( const ACE_CDR::LongDouble x  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::write_2 ( const ACE_CDR::UShort x  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::write_4 ( const ACE_CDR::ULong x  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::write_8 ( const ACE_CDR::ULongLong x  )  [private]

ACE_CDR::Boolean ACE_OutputCDR::write_array ( const void *  x,
size_t  size,
size_t  align,
ACE_CDR::ULong  length
) [private]

write an array of <length> elements, each of <size> bytes and the start aligned at a multiple of <align>. The elements are assumed to be packed with the right alignment restrictions. It is mostly designed for buffers of the basic types.

This operation uses <memcpy>; as explained above it is expected that using assignment is faster that <memcpy> for one element, but for several elements <memcpy> should be more efficient, it could be interesting to find the break even point and optimize for that case, but that would be too platform dependent.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_boolean ( ACE_CDR::Boolean  x  )

ACE_CDR::Boolean ACE_OutputCDR::write_boolean_array ( const ACE_CDR::Boolean x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_char ( ACE_CDR::Char  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_char_array ( const ACE_CDR::Char x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_double ( const ACE_CDR::Double x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_double_array ( const ACE_CDR::Double x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_float ( ACE_CDR::Float  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_float_array ( const ACE_CDR::Float x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_long ( ACE_CDR::Long  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_long_array ( const ACE_CDR::Long x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_longdouble ( const ACE_CDR::LongDouble x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_longdouble_array ( const ACE_CDR::LongDouble x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_longlong ( const ACE_CDR::LongLong x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_longlong_array ( const ACE_CDR::LongLong x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_octet ( ACE_CDR::Octet  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_octet_array ( const ACE_CDR::Octet x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_CDR::Boolean ACE_OutputCDR::write_octet_array_mb ( const ACE_Message_Block mb  )

Write an octet array contained inside a MB, this can be optimized to minimize copies.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_short ( ACE_CDR::Short  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_short_array ( const ACE_CDR::Short x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_CDR::Boolean ACE_OutputCDR::write_string ( const ACE_CString x  )

ACE_CDR::Boolean ACE_OutputCDR::write_string ( ACE_CDR::ULong  len,
const ACE_CDR::Char x
)

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_string ( const ACE_CDR::Char x  )

For string we offer methods that accept a precomputed length.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ulong ( ACE_CDR::ULong  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ulong_array ( const ACE_CDR::ULong x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ulonglong ( const ACE_CDR::ULongLong x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ulonglong_array ( const ACE_CDR::ULongLong x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ushort ( ACE_CDR::UShort  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_ushort_array ( const ACE_CDR::UShort x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_CDR::Boolean ACE_OutputCDR::write_wchar ( ACE_CDR::WChar  x  )

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_wchar_array ( const ACE_CDR::WChar x,
ACE_CDR::ULong  length
)

Note:
the portion written starts at <x> and ends at <x + length>. The length is *NOT* stored into the CDR stream.

ACE_CDR::Boolean ACE_OutputCDR::write_wchar_array_i ( const ACE_CDR::WChar x,
ACE_CDR::ULong  length
) [private]

ACE_CDR::Boolean ACE_OutputCDR::write_wstring ( ACE_CDR::ULong  length,
const ACE_CDR::WChar x
)

ACE_INLINE ACE_CDR::Boolean ACE_OutputCDR::write_wstring ( const ACE_CDR::WChar x  )


Friends And Related Function Documentation

friend class ACE_Char_Codeset_Translator [friend]

The Codeset translators need access to some private members to efficiently marshal arrays For reading from an output CDR stream.

friend class ACE_InputCDR [friend]

friend class ACE_WChar_Codeset_Translator [friend]


Member Data Documentation

ACE_Char_Codeset_Translator* ACE_OutputCDR::char_translator_ [protected]

If not nil, invoke for translation of character and string data.

ACE_Message_Block* ACE_OutputCDR::current_ [private]

The current block in the chain where we are writing.

size_t ACE_OutputCDR::current_alignment_ [private]

The current alignment as measured from the start of the buffer. Usually this coincides with the alignment of the buffer in memory, but, when we chain another buffer this "quasi invariant" is broken. The current_alignment is used to readjust the buffer following the stolen message block.

bool ACE_OutputCDR::current_is_writable_ [private]

Is the current block writable. When we steal a buffer from the user and just chain it into the message block we are not supposed to write on it, even if it is past the start and end of the buffer.

bool ACE_OutputCDR::do_byte_swap_ [private]

If not zero swap bytes at writing so the created CDR stream byte order does *not* match the machine byte order. The motivation for such a beast is that in some setting a few (fast) machines can be serving hundreds of slow machines with the opposite byte order, so it makes sense (as a load balancing device) to put the responsibility in the writers. THIS IS NOT A STANDARD IN CORBA, USE AT YOUR OWN RISK

bool ACE_OutputCDR::good_bit_ [private]

Set to false when an error ocurrs.

ACE_CDR::Octet ACE_OutputCDR::major_version_ [protected]

GIOP version information.

size_t const ACE_OutputCDR::memcpy_tradeoff_ [private]

Break-even point for copying.

ACE_CDR::Octet ACE_OutputCDR::minor_version_ [protected]

ACE_Message_Block ACE_OutputCDR::start_ [private]

The start of the chain of message blocks.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL int ACE_OutputCDR::wchar_maxbytes_ = sizeof (ACE_CDR::WChar) [static, protected]

Some wide char codesets may be defined with a maximum number of bytes that is smaller than the size of a wchar_t. This means that the CDR cannot simply memcpy a block of wchars to and from the stream, but must instead realign the bytes appropriately. In cases when wchar i/o is not allowed, such as with GIOP 1.0, or not having a native wchar codeset defined, the maxbytes is set to zero, indicating no wchar data is allowed.

ACE_WChar_Codeset_Translator* ACE_OutputCDR::wchar_translator_ [protected]


The documentation for this class was generated from the following files:
Generated on Tue Jan 30 13:42:47 2007 for ACE by  doxygen 1.4.7-1
