TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE > Class Template Reference

Implement common tasks in the Admin interfaces. More...

#include <ESF_Proxy_Admin.h>

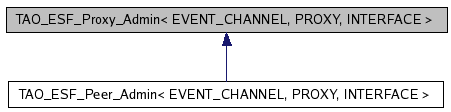

Inheritance diagram for TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >:

Inheritance graph
[legend]

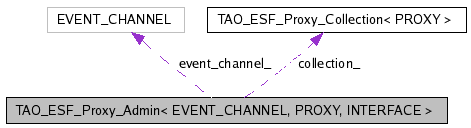

Collaboration diagram for TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_ESF_Proxy_Admin (EVENT_CHANNEL *ec)
 Constructor, allocate the internal collection.
virtual ~TAO_ESF_Proxy_Admin (void)
 Cleanup internal resources, destroy the internal collection.

Protected Attributes

EVENT_CHANNEL * event_channel_
 The Event Channel we belong to.

Private Types

typedef TAO_ESF_Proxy_Collection<
PROXY >
Collection
 Shorthand for the Proxy collection.

Private Attributes

Collectioncollection_
 The proxy collection object.

Detailed Description

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
class TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >

Implement common tasks in the Admin interfaces.

Requirements

The EVENT_CHANNEL interface must implement:

 * void create_proxy (PROXY*&);
 * // create a new proxy
 *
 * void destroy_proxy (PROXY*);
 * // destroy a proxy
 *
 * void create_proxy_collection (TAO_ESF_Proxy_Collection<PROXY>*&);
 * // create a proxy collection
 *
 * void destroy_proxy_collection (TAO_ESF_Proxy_Collection<PROXY>*&);
 * // destroy a proxy collection
 *

In addition to the requirements imposed by TAO_ESF_Proxy_Collection<>, the PROXY interface must define:

 * typename .... _ptr_type;
 * // The T_ptr for the IDL interface implemented by the PROXY.
 *
 * typename .... _var_type;
 * // The T_var for the IDL interface implemented by the PROXY.
 *
 * PROXY::_ptr_type
 * PROXY::activate (ACE_ENV_SINGLE_ARG_DECL_NOT_USED) throw ();
 * // activate the proxy and return the object reference
 *


Member Typedef Documentation

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
typedef TAO_ESF_Proxy_Collection<PROXY> TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::Collection [private]

Shorthand for the Proxy collection.


Constructor & Destructor Documentation

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::TAO_ESF_Proxy_Admin ( EVENT_CHANNEL *  ec  )

Constructor, allocate the internal collection.

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::~TAO_ESF_Proxy_Admin ( void   )  [virtual]

Cleanup internal resources, destroy the internal collection.


Member Data Documentation

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
Collection* TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::collection_ [private]

The proxy collection object.

template<class EVENT_CHANNEL, class PROXY, class INTERFACE>
EVENT_CHANNEL* TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::event_channel_ [protected]

The Event Channel we belong to.

A <proxy> has been disconnected. The default implementation removes the object from the collection and deactivates the proxy.


The documentation for this class was generated from the following files:
