CIAO::DomainApplicationManager_Impl Class Reference

A servant for the Deployment::DomainApplicationManager interface. The DomainApplicationManager is responsible for deploying an application on the domain level, i.e. across nodes. It specializes the ApplicationManager abstract interface. More...

#include <DomainApplicationManager_Impl.h>

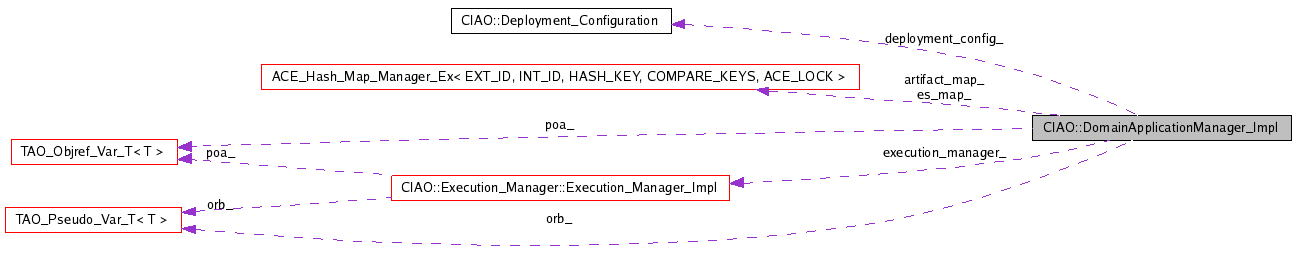

Collaboration diagram for CIAO::DomainApplicationManager_Impl:

[legend]List of all members.


Public Types
typedef CIAO::DomainApplicationManager_Impl::_chained_artifacts	Chained_Artifacts
	External_Connections
	Internal_Connections
enum	Connection_Search_Type { External_Connections, Internal_Connections }
Public Member Functions
	DomainApplicationManager_Impl (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, Deployment::TargetManager_ptr manager, Execution_Manager::Execution_Manager_Impl em, const Deployment::DeploymentPlan &plan, const char deployment_file) throw (CORBA::SystemException)
	Constructor.
void	init () throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::StartError, Deployment::PlanError)
void	set_uuid (const char *uuid)
const char *	get_uuid () const
virtual Deployment::NodeApplication_ptr	get_node_app (const char *node_name) throw ( ::CORBA::SystemException, ::Deployment::NoSuchName)
virtual void	startLaunch (const ::Deployment::Properties &configProperty,::CORBA::Boolean start) throw (CORBA::SystemException, ::Deployment::ResourceNotAvailable, ::Deployment::StartError, ::Deployment::InvalidProperty)
virtual void	finishLaunch (CORBA::Boolean start, CORBA::Boolean is_ReDAC) throw (CORBA::SystemException, ::Deployment::StartError)
virtual void	post_finishLaunch (void) throw (CORBA::SystemException, Deployment::StartError)
virtual void	passivate_shared_components (void) throw (CORBA::SystemException, Deployment::StartError)
virtual void	activate_shared_components (void) throw (CORBA::SystemException, Deployment::StartError)
virtual void	start () throw (CORBA::SystemException, ::Deployment::StartError)
virtual void	destroyApplication () throw (CORBA::SystemException, ::Deployment::StopError)
virtual ::Deployment::DeploymentPlan *	getPlan () throw (CORBA::SystemException)
virtual void	destroyManager () throw (CORBA::SystemException, Deployment::StopError)
virtual void	perform_redeployment (const Deployment::DeploymentPlan &plan) throw (CORBA::SystemException, Deployment::PlanError, Deployment::InstallationFailure, Deployment::UnknownImplId, Deployment::ImplEntryPointNotFound, Deployment::InvalidConnection, ::Components::RemoveFailure)
Protected Types
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, Chained_Artifacts, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	Chained_Artifacts_Table
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, CIAO::CIAO_Event_Service_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	Event_Service_Table
Protected Member Functions
virtual	~DomainApplicationManager_Impl (void)
	Destructor.
bool	get_plan_info (void)
int	split_plan (void)
CIAO::Component_Binding_Info *	populate_binding_info (const ACE_CString &name, const ACE_CString &child_uuid)
CIAO::Component_Binding_Info *	populate_binding_info (const ACE_CString &name)
void	synchronize_shared_components_with_node_managers (void)
void	add_shared_components (const Deployment::ComponentPlans &shared)
bool	is_shared_component (const char *name)
void	add_connections (const Deployment::Connections &incoming_conn)
Deployment::Connections *	get_outgoing_connections (const Deployment::DeploymentPlan &plan, bool is_getting_all_connections=true, bool is_search_new_plan=true, Connection_Search_Type t=Internal_Connections)
bool	get_outgoing_connections_i (const char *instname, Deployment::Connections &retv, bool is_ReDAC, bool is_search_new_plan) throw (Deployment::StartError)
	This is a helper function to find the connection for a component.
bool	populate_connection_for_binding (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv) throw (Deployment::StartError)
bool	handle_es_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv) throw (Deployment::StartError)
bool	handle_direct_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv) throw (Deployment::StartError)
void	dump_connections (const ::Deployment::Connections &connections)
	Dump connections, a static method.
bool	already_exists (const Deployment::PlanConnectionDescription &conn)
	Check whether a connection already exists in the cached old plan.
Deployment::Connections *	subtract_connections (const Deployment::Connections &left, const Deployment::Connections &right)
	Remove those appeared in <right> from the <left>.
void	purge_connections (Deployment::Connections_var &connections, const char *inst)
virtual void	install_all_es (void) throw (CORBA::SystemException, Deployment::StartError)
virtual void	add_es_to_map (Deployment::ESInstallationInfos es_infos, Deployment::CIAO_Event_Services event_services) throw (CORBA::SystemException, Deployment::StartError)
virtual const Deployment::Properties &	get_connection_QoS_configuration (const Deployment::Requirement &requirement)
Protected Attributes
CORBA::String_var	domainapp_path_
	location of the Domainapplication
CORBA::ORB_var	orb_
	Keep a pointer to the managing ORB serving this servant.
PortableServer::POA_var	poa_
	Keep a pointer to the managing POA.
Execution_Manager::Execution_Manager_Impl *	execution_manager_
Deployment::ComponentPlans_var	shared_
	Cache a list of shared components.
CORBA::String_var	ior_
	Cache the ior of the previous reference.
Deployment::TargetManager_var	target_manager_
	Cached TargetManager.
Deployment::DeploymentPlan	plan_
Deployment::DeploymentPlan	old_plan_
	Cached old deployment plan, i.e., before redeployment.
size_t	num_child_plans_
	Total number of child deployment plans.
ACE_Vector< ACE_CString >	node_manager_names_
Chained_Artifacts_Table	artifact_map_
Event_Service_Table	es_map_
const char *	deployment_file_
	The deployment information data file.
Deployment_Configuration	deployment_config_
	Deployment Configuration info, which contains the deployment topology.
CORBA::String_var	uuid_
	UUID from the Plan.
::Deployment::Connections_var	all_connections_
bool	is_redeployment_
CIAO::DAnCE::EventServiceDeploymentDescriptions_var	esd_
	Cache the CIAO_Event_Service deployment description.
Classes
struct	_chained_artifacts

Detailed Description

Member Typedef Documentation

typedef struct CIAO::DomainApplicationManager_Impl::_chained_artifacts CIAO::DomainApplicationManager_Impl::Chained_Artifacts

Define the type which contains a list of DnC artifacts. @ Assumption: Each NodeApplicationManager create only one NodeApplication when the startLaunch() operation is invoked, which means all the nodes on that child plan are collocated in the same process.

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, Chained_Artifacts, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::DomainApplicationManager_Impl::Chained_Artifacts_Table [protected]

Cached information for NodeManager, NodeApplicationManager, NodeApplication, Connections, etc. Key: NodeManager name with CString type. Value: Chained_Artifacts struct type.

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, CIAO::CIAO_Event_Service_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::DomainApplicationManager_Impl::Event_Service_Table [protected]

Cached information of all the CIAO_Event_Service objects within the deployment plan Key: the string identifier of the CIAO_Event_Service Value: the object reference of the CIAO_Event_Service

Member Enumeration Documentation

enum CIAO::DomainApplicationManager_Impl::Connection_Search_Type

Enumerator:

External_Connections
Internal_Connections

Constructor & Destructor Documentation

CIAO::DomainApplicationManager_Impl::DomainApplicationManager_Impl	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		Deployment::TargetManager_ptr	manager,
		Execution_Manager::Execution_Manager_Impl *	em,
		const Deployment::DeploymentPlan &	plan,
		const char *	deployment_file
	)			throw (CORBA::SystemException)

Constructor.

CIAO::DomainApplicationManager_Impl::~DomainApplicationManager_Impl ( void ) [protected, virtual]

Destructor.

Member Function Documentation

void CIAO::DomainApplicationManager_Impl::activate_shared_components ( void ) throw (CORBA::SystemException, Deployment::StartError) [virtual]

void CIAO::DomainApplicationManager_Impl::add_connections ( const Deployment::Connections & incoming_conn ) [protected]

Cache the incoming connections, which is a sequence of Connections, into the <all_connections_> list.

void CIAO::DomainApplicationManager_Impl::add_es_to_map	(	Deployment::ESInstallationInfos *	es_infos,
		Deployment::CIAO_Event_Services *	event_services
	)			throw (CORBA::SystemException, Deployment::StartError) `[protected, virtual]`

Add all CIAO_Event_Service objects into the cached map.

void CIAO::DomainApplicationManager_Impl::add_shared_components ( const Deployment::ComponentPlans & shared ) [protected]

A helper function to add a list of shared components into the cached shared component list.

shared A list of shared components to be added.

bool CIAO::DomainApplicationManager_Impl::already_exists ( const Deployment::PlanConnectionDescription & conn ) [protected]

Check whether a connection already exists in the cached old plan.

void CIAO::DomainApplicationManager_Impl::destroyApplication ( ) throw (CORBA::SystemException, ::Deployment::StopError) [virtual]

Terminates a running application. Raises the StopError exception if an error occurs during termination. Raises the InvalidReference exception if the appliction referen is unknown.

void CIAO::DomainApplicationManager_Impl::destroyManager ( ) throw (CORBA::SystemException, Deployment::StopError) [virtual]

This is a helper function to destroy the NodeAppManager. Since we don't want to do so in the destructor so we will ask the ExecutionManager to do this on us when the same IDL op invoked on it. This is part of the result for merging DAM with DA.

void CIAO::DomainApplicationManager_Impl::dump_connections ( const ::Deployment::Connections & connections ) [protected]

Dump connections, a static method.

void CIAO::DomainApplicationManager_Impl::finishLaunch	(	CORBA::Boolean	start,
		CORBA::Boolean	is_ReDAC
	)			throw (CORBA::SystemException, ::Deployment::StartError) `[virtual]`

The second step in launching an application in the domain-level. If the start parameter is true, the application is started as well. Raises the StartError exception if launching or starting the application fails.

const Deployment::Properties & CIAO::DomainApplicationManager_Impl::get_connection_QoS_configuration ( const Deployment::Requirement & requirement ) [protected, virtual]

Get the actual event connection QoS properties based on the deployment requirement. The deployment requirement only specifies an identifier/reference to the EventServiceDeploymentDescriptions.

Deployment::NodeApplication_ptr CIAO::DomainApplicationManager_Impl::get_node_app ( const char * node_name ) throw ( ::CORBA::SystemException, ::Deployment::NoSuchName) [virtual]

Fetch the NodeApplication object reference based on the NodeManager name.

Deployment::Connections * CIAO::DomainApplicationManager_Impl::get_outgoing_connections	(	const Deployment::DeploymentPlan &	plan,
		bool	is_getting_all_connections = `true`,
		bool	is_search_new_plan = `true`,
		Connection_Search_Type	t = `Internal_Connections`
	)			`[protected]`

Given a child deployment plan, find the <Connections> sequence of the "providedReference" for the component instances in the child deployment plan as Receiver side. By default, we search in the new plan.

If <is_getting_all_connections> is false, then we only search for "new connections" (valid for ReDaC case only). Otherwise, we will search for both new connections and those already existing connections.

bool CIAO::DomainApplicationManager_Impl::get_outgoing_connections_i	(	const char *	instname,
		Deployment::Connections &	retv,
		bool	is_ReDAC,
		bool	is_search_new_plan
	)			throw (Deployment::StartError) `[protected]`

This is a helper function to find the connection for a component.

bool CIAO::DomainApplicationManager_Impl::get_plan_info ( void ) [protected]

(1) Parse the global deployment plan, get the total number of child plans included in the global plan, and get the list of names of NodeManagers for each child plan. (2) Check whether all the NodeManager names are present in the deployment information data file.

ACE_INLINE const char * CIAO::DomainApplicationManager_Impl::get_uuid ( ) const

Deployment::DeploymentPlan * CIAO::DomainApplicationManager_Impl::getPlan ( ) throw (CORBA::SystemException)

Returns the DeploymentPlan associated with this ApplicationManager.

bool CIAO::DomainApplicationManager_Impl::handle_direct_connection	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			throw (Deployment::StartError) `[protected]`

bool CIAO::DomainApplicationManager_Impl::handle_es_connection	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			throw (Deployment::StartError) `[protected]`

void CIAO::DomainApplicationManager_Impl::init ( ) throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::StartError, Deployment::PlanError)

Initialize the DomainApplicationManager. em A pointer to the ExecutionManager servant C++ object.

(1) Set the total number of child plans. (2) Set the list of NodeManager names, which is an array of strings. The <node_manager_names> is a pointer to an array of ACE_CString objets, which is allocated by the caller and deallocated by the DomainApplicationManager destructor. (3) Check the validity of the deployment plan and the deployment information data file. (4) Call split_plan () member function. (5) Invoke all the preparePlan () operations on all the corresponding NodeManagers with child plans.

@ What else do we need to initialize here?

void CIAO::DomainApplicationManager_Impl::install_all_es ( void ) throw (CORBA::SystemException, Deployment::StartError) [protected, virtual]

The first step in finish_launching an application in the domain-level. We install all the CIAO_Event_Service objects as specified in the DeploymentPlan. Internally, this operation will invoke an operation on each cached NodeApplication object.

bool CIAO::DomainApplicationManager_Impl::is_shared_component ( const char * name ) [protected]

A private function to check whether a component is in the shared component list.

name The name of a component instance.

void CIAO::DomainApplicationManager_Impl::passivate_shared_components ( void ) throw (CORBA::SystemException, Deployment::StartError) [virtual]

void CIAO::DomainApplicationManager_Impl::perform_redeployment ( const Deployment::DeploymentPlan & plan ) throw (CORBA::SystemException, Deployment::PlanError, Deployment::InstallationFailure, Deployment::UnknownImplId, Deployment::ImplEntryPointNotFound, Deployment::InvalidConnection, ::Components::RemoveFailure) [virtual]

CIAO::Component_Binding_Info * CIAO::DomainApplicationManager_Impl::populate_binding_info ( const ACE_CString & name ) [protected]

Construct <Component_Binding_Info> struct for the component instance. Fetch the plan_uuid info from the internally cached shared component list.

name component instance name

CIAO::Component_Binding_Info * CIAO::DomainApplicationManager_Impl::populate_binding_info	(	const ACE_CString &	name,
		const ACE_CString &	child_uuid
	)			`[protected]`

Construct <Component_Binding_Info> struct for the component instance.

name component instance name child_uuid child plan uuid string

bool CIAO::DomainApplicationManager_Impl::populate_connection_for_binding	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			throw (Deployment::StartError) `[protected]`

void CIAO::DomainApplicationManager_Impl::post_finishLaunch ( void ) throw (CORBA::SystemException, Deployment::StartError) [virtual]

The last step in launching an application in the domain-level. We establish connection bindings for external/shared components of this deployment plan components. Internally, this operation will invoke some operations on ExecutionManager to finish up this task.

void CIAO::DomainApplicationManager_Impl::purge_connections	(	Deployment::Connections_var &	connections,
		const char *	inst
	)			`[protected]`

ACE_INLINE void CIAO::DomainApplicationManager_Impl::set_uuid ( const char * uuid )

set_uuid method on the DomainApplicationManager assigns the UUID of the associated plan to this Manager. This helps in reverse lookup operations such as given a manager, obtaining the UUID associated. The get_uuid method is used in this case.

int CIAO::DomainApplicationManager_Impl::split_plan ( void ) [protected]

Split the global (domain-level) deployment plan to a set of local (node-level) deployment plans. The set of local plans are cached in the ACE hash map member variable. Also, fill in the <node_manager_> field of the Chained_Artifacts struct.

void CIAO::DomainApplicationManager_Impl::start ( ) throw (CORBA::SystemException, ::Deployment::StartError) [virtual]

Starts the application. Raises the StartError exception if starting the application fails.

void CIAO::DomainApplicationManager_Impl::startLaunch	(	const ::Deployment::Properties &	configProperty,
		::CORBA::Boolean	start
	)			throw (CORBA::SystemException, ::Deployment::ResourceNotAvailable, ::Deployment::StartError, ::Deployment::InvalidProperty) `[virtual]`

Executes the application, but does not start it yet. Users can optionally provide launch-time configuration properties to override properties that are part of the plan. Raises the InvalidProperty exception if a configuration property is invalid. Raises the StartError exception if an error occurs during launching. Raises the ResourceNotAvailable exception if the commitResources parameter to the prepare operation of the ExecutionManager was true, if late resource allocation is used, and one of the requested resources is not available.

Deployment::Connections * CIAO::DomainApplicationManager_Impl::subtract_connections	(	const Deployment::Connections &	left,
		const Deployment::Connections &	right
	)			`[protected]`

Remove those appeared in <right> from the <left>.

void CIAO::DomainApplicationManager_Impl::synchronize_shared_components_with_node_managers ( void ) [protected]

Contact each NodeManager to get shared compnents information and then update its internal cache.

Member Data Documentation

::Deployment::Connections_var CIAO::DomainApplicationManager_Impl::all_connections_ [protected]

Maintain a list of <Connections>, each of which is obtained by calling the startLaunch() method on the NodeApplicationManager object.

Chained_Artifacts_Table CIAO::DomainApplicationManager_Impl::artifact_map_ [protected]

Deployment_Configuration CIAO::DomainApplicationManager_Impl::deployment_config_ [protected]

Deployment Configuration info, which contains the deployment topology.

const char* CIAO::DomainApplicationManager_Impl::deployment_file_ [protected]

The deployment information data file.

CORBA::String_var CIAO::DomainApplicationManager_Impl::domainapp_path_ [protected]

location of the Domainapplication

Event_Service_Table CIAO::DomainApplicationManager_Impl::es_map_ [protected]

CIAO::DAnCE::EventServiceDeploymentDescriptions_var CIAO::DomainApplicationManager_Impl::esd_ [protected]

Cache the CIAO_Event_Service deployment description.

Execution_Manager::Execution_Manager_Impl* CIAO::DomainApplicationManager_Impl::execution_manager_ [protected]

Pointer to the ExecutionManager_Impl "singleton" servant object We could do this because ExecutionManager and DomainApplicationManager are always collocated in the same process, so we don't have to pass CORBA object reference back and forth.

CORBA::String_var CIAO::DomainApplicationManager_Impl::ior_ [protected]

Cache the ior of the previous reference.

bool CIAO::DomainApplicationManager_Impl::is_redeployment_ [protected]

This variable is used to control the execution path of some member function implementations. The reason is because we want to avoid unnecessary code duplicate. The default value is "false".

ACE_Vector<ACE_CString> CIAO::DomainApplicationManager_Impl::node_manager_names_ [protected]

The list of node manager names, each of them corresponds to one child plan.

size_t CIAO::DomainApplicationManager_Impl::num_child_plans_ [protected]

Total number of child deployment plans.

Deployment::DeploymentPlan CIAO::DomainApplicationManager_Impl::old_plan_ [protected]

Cached old deployment plan, i.e., before redeployment.

CORBA::ORB_var CIAO::DomainApplicationManager_Impl::orb_ [protected]

Keep a pointer to the managing ORB serving this servant.

Deployment::DeploymentPlan CIAO::DomainApplicationManager_Impl::plan_ [protected]

Cached deployment plan for the particular domain. The plan will be initialized when init is called.

PortableServer::POA_var CIAO::DomainApplicationManager_Impl::poa_ [protected]

Keep a pointer to the managing POA.
