ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Iterates over an <ACE_Timer_Wheel>. More...

#include <Timer_Wheel_T.h>

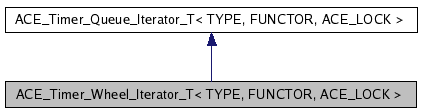

Inheritance diagram for ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >:

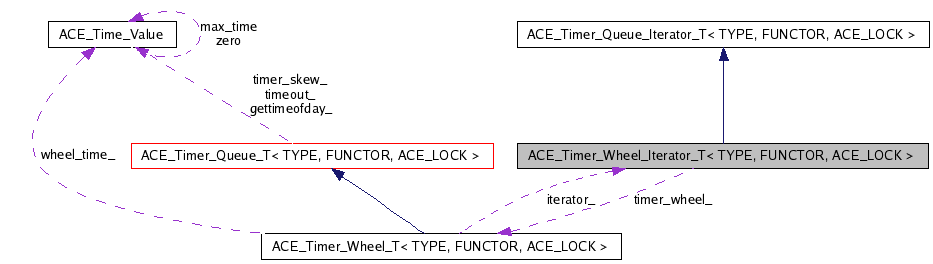

[legend]Collaboration diagram for ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >:

[legend]List of all members.

Public Types
typedef ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >	Wheel
typedef ACE_Timer_Node_T< TYPE >	Node
Public Member Functions
	ACE_Timer_Wheel_Iterator_T (Wheel &)
	Constructor.
	~ACE_Timer_Wheel_Iterator_T (void)
	Destructor.
virtual void	first (void)
	Positions the iterator at the earliest node in the Timer Queue.
virtual void	next (void)
	Positions the iterator at the next node in the Timer Queue.
virtual int	isdone (void) const
	Returns true when there are no more nodes in the sequence.
virtual ACE_Timer_Node_T< TYPE > *	item (void)
	Returns the node at the current position in the sequence.
Protected Attributes
Wheel &	timer_wheel_
	Pointer to the ACE_Timer_List that we are iterating over.
u_int	spoke_
	Current position in the timing wheel.
ACE_Timer_Node_T< TYPE > *	current_node_
	Pointer to the position in the the <pos_>th list.
Private Member Functions
void	goto_next (u_int start_spoke)
	Helper class for common functionality of next() and first().

---

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >

Iterates over an <ACE_Timer_Wheel>.

This is a generic iterator that can be used to visit every node of a timer queue. Be aware that it doesn't traverse in the order of timeout values.

---

Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>

typedef ACE_Timer_Node_T<TYPE> ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::Node

template<class TYPE, class FUNCTOR, class ACE_LOCK>

typedef ACE_Timer_Wheel_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::Wheel

---

Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>

ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Wheel_Iterator_T

(

Wheel &

wheel

)

Constructor.

Just initializes the iterator with a ACE_Timer_Wheel_T and then calls first() to initialize the rest of itself.

Parameters:

wheel

A reference for a timer queue to iterate over

template<class TYPE, class FUNCTOR, class ACE_LOCK>

ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Wheel_Iterator_T

(

void

)

Destructor.

Destructor, at this level does nothing.

---

Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>

void ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::first

(

void

)

[virtual]

Positions the iterator at the earliest node in the Timer Queue.

Positions the iterator at the first position in the timing wheel that contains something. spoke_ will be set to the spoke position of this entry and current_node_ will point to the first entry in that spoke.

If the wheel is empty, spoke_ will be equal timer_wheel_.spoke_count_ and current_node_ would be 0.

Implements ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>

void ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::goto_next

(

u_int

start_spoke

)

[private]

Helper class for common functionality of next() and first().

template<class TYPE, class FUNCTOR, class ACE_LOCK>

int ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::isdone

(

void

)

const [virtual]

Returns true when there are no more nodes in the sequence.

Returns:

True when we there aren't any more items (when current_node_ == 0)

Implements ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>

ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::item

(

void

)

[virtual]

Returns the node at the current position in the sequence.

Returns:

The node at the current spokeition in the sequence or 0 if the wheel is empty

Implements ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>

void ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::next

(

void

)

[virtual]

Positions the iterator at the next node in the Timer Queue.

Positions the iterator at the next node.

Implements ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

---

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>

ACE_Timer_Node_T<TYPE>* ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::current_node_ [protected]

Pointer to the position in the the <pos_>th list.

template<class TYPE, class FUNCTOR, class ACE_LOCK>

u_int ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::spoke_ [protected]

Current position in the timing wheel.

template<class TYPE, class FUNCTOR, class ACE_LOCK>

Wheel& ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::timer_wheel_ [protected]

Pointer to the ACE_Timer_List that we are iterating over.

---

The documentation for this class was generated from the following files:

• Timer_Wheel_T.h
• Timer_Wheel_T.cpp

---
