ACE_SPIPE_Acceptor Class Reference

A factory class that produces ACE_SPIPE_Stream objects. More...

#include <SPIPE_Acceptor.h>

Inheritance diagram for ACE_SPIPE_Acceptor:

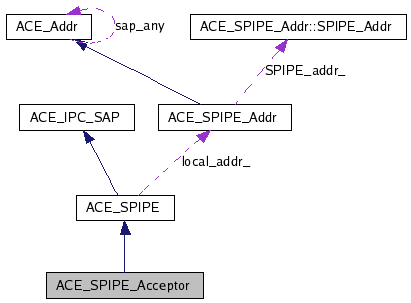

[legend]Collaboration diagram for ACE_SPIPE_Acceptor:

[legend]List of all members.

Public Types
typedef ACE_SPIPE_Addr	PEER_ADDR
typedef ACE_SPIPE_Stream	PEER_STREAM
Public Member Functions
	ACE_SPIPE_Acceptor (void)
	Default constructor.
	ACE_SPIPE_Acceptor (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener.
int	open (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener.
int	close (void)
	Close down the passive-mode STREAM pipe listener.
int	remove (void)
	Remove the underlying mounted pipe from the file system.
int	accept (ACE_SPIPE_Stream &ipc_sap_spipe, ACE_SPIPE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
int	create_new_instance (int perms=0)
	Create a new instance of an SPIPE.

---

Detailed Description

A factory class that produces ACE_SPIPE_Stream objects.

ACE_SPIPE_Acceptor is a factory class that accepts SPIPE connections. Each accepted connection produces an ACE_SPIPE_Stream object.

Warning:

Windows: Works only on Windows NT 4 and higher. To use this class with the ACE_Reactor framework, note that the handle to demultiplex on is an event handle and should be registered with the ACE_Reactor::register_handler (ACE_Event_Handler *, ACE_HANDLE) method.

Works on non-Windows platforms only when ACE_HAS_STREAM_PIPES is defined.

---

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Acceptor::PEER_ADDR

typedef ACE_SPIPE_Stream ACE_SPIPE_Acceptor::PEER_STREAM

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor

(

void

)

Default constructor.

ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = 1,
		int	perms = ACE_DEFAULT_FILE_PERMS,
		LPSECURITY_ATTRIBUTES	sa = 0,
		int	pipe_mode = PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE
	)

Initiate a passive-mode STREAM pipe listener.

Parameters:

	local_sap	The name of the pipe instance to open and listen on.
	reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
	perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
	sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
	pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

---

Member Function Documentation

int ACE_SPIPE_Acceptor::accept	(	ACE_SPIPE_Stream &	ipc_sap_spipe,
		ACE_SPIPE_Addr *	remote_addr = 0,
		ACE_Time_Value *	timeout = 0,
		int	restart = 1,
		int	reset_new_handle = 0
	)

Accept a new data transfer connection.

Parameters:

	ipc_sap_spipe	The ACE_SPIPE_Stream to initialize with the newly-accepted pipe.
	remote_addr	Optional, accepts the address of the peer.
	timeout	0 means block forever, {0, 0} means poll.
	restart	1 means "restart if interrupted."

Return values:

	0	for success.
	-1	for failure.

int ACE_SPIPE_Acceptor::close

(

void

)

Close down the passive-mode STREAM pipe listener.

Reimplemented from ACE_SPIPE.

Reimplemented in ACE_UPIPE_Acceptor.

int ACE_SPIPE_Acceptor::create_new_instance

(

int

perms = 0

)

[private]

Create a new instance of an SPIPE.

void ACE_SPIPE_Acceptor::dump

(

void

)

const

Dump the state of an object.

Reimplemented from ACE_SPIPE.

Reimplemented in ACE_UPIPE_Acceptor.

int ACE_SPIPE_Acceptor::open	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = 1,
		int	perms = ACE_DEFAULT_FILE_PERMS,
		LPSECURITY_ATTRIBUTES	sa = 0,
		int	pipe_mode = PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE
	)

Initiate a passive-mode STREAM pipe listener.

Parameters:

	local_sap	The name of the pipe instance to open and listen on.
	reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
	perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
	sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
	pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

Return values:

	0	for success.
	-1	for failure.

int ACE_SPIPE_Acceptor::remove

(

void

)

Remove the underlying mounted pipe from the file system.

Reimplemented from ACE_SPIPE.

Reimplemented in ACE_UPIPE_Acceptor.

---

Member Data Documentation

ACE_SPIPE_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE.

Reimplemented in ACE_UPIPE_Acceptor.

---

The documentation for this class was generated from the following files:

• SPIPE_Acceptor.h
• SPIPE_Acceptor.cpp

---
