ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR > Class Template Reference

Defines a map implementation. More...

#include <Map_T.h>

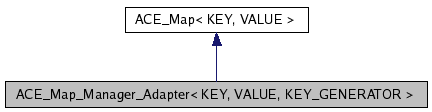

Inheritance diagram for ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >:

Inheritance graph
[legend]

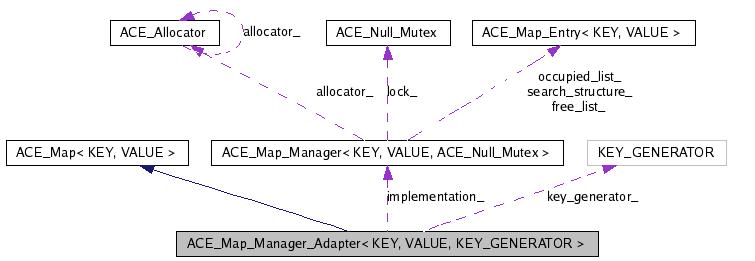

Collaboration diagram for ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Map_Manager_Iterator_Adapter<
ACE_Reference_Pair< const
KEY, VALUE >, KEY, VALUE > 		iterator_impl
typedef ACE_Map_Manager_Reverse_Iterator_Adapter<
ACE_Reference_Pair< const
KEY, VALUE >, KEY, VALUE > 		reverse_iterator_impl
typedef ACE_Map_Manager< KEY,
VALUE, ACE_Null_Mutex > 		implementation

Public Member Functions

 ACE_Map_Manager_Adapter (ACE_Allocator *alloc=0)
 Initialize with the <ACE_DEFAULT_MAP_SIZE>.
 ACE_Map_Manager_Adapter (size_t size, ACE_Allocator *alloc=0)
virtual ~ACE_Map_Manager_Adapter (void)
 Close down and release dynamically allocated resources.
virtual int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
 Initialize a <Map> with size <length>.
virtual int close (void)
 Close down a <Map> and release dynamically allocated resources.
virtual int bind (const KEY &key, const VALUE &value)
virtual int bind_modify_key (const VALUE &value, KEY &key)
virtual int create_key (KEY &key)
virtual int bind_create_key (const VALUE &value, KEY &key)
virtual int bind_create_key (const VALUE &value)
virtual int recover_key (const KEY &modified_key, KEY &original_key)
virtual int rebind (const KEY &key, const VALUE &value)
virtual int rebind (const KEY &key, const VALUE &value, VALUE &old_value)
virtual int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)
virtual int trybind (const KEY &key, VALUE &value)
virtual int find (const KEY &key, VALUE &value)
 Locate

associated with <key>.

virtual int find (const KEY &key)
 Is <key> in the map?
virtual int unbind (const KEY &key)
 Remove <key> from the map.
virtual int unbind (const KEY &key, VALUE &value)
virtual size_t current_size (void) const
 Return the current size of the map.
virtual size_t total_size (void) const
 Return the total size of the map.
virtual void dump (void) const
 Dump the state of an object.
ACE_Map_Manager< KEY, VALUE,
ACE_Null_Mutex > & 		impl (void)
 Accessor to implementation object.
KEY_GENERATOR & key_generator (void)
 Accessor to key generator.

Protected Member Functions

virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		begin_impl (void)
 Return forward iterator.
virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		end_impl (void)
virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		rbegin_impl (void)
 Return reverse iterator.
virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		rend_impl (void)

Protected Attributes

ACE_Map_Manager< KEY, VALUE,
ACE_Null_Mutex > 		implementation_
 All implementation details are forwarded to this class.
KEY_GENERATOR key_generator_
 Functor class used for generating key.

Private Member Functions

void operator= (const ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR > &)
 ACE_Map_Manager_Adapter (const ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR > &)

Detailed Description

template<class KEY, class VALUE, class KEY_GENERATOR>
class ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >

Defines a map implementation.

Implementation to be provided by ACE_Map_Manager.

Member Typedef Documentation

template<class KEY, class VALUE, class KEY_GENERATOR>
typedef ACE_Map_Manager<KEY, VALUE, ACE_Null_Mutex> ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::implementation

template<class KEY, class VALUE, class KEY_GENERATOR>
typedef ACE_Map_Manager_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, KEY, VALUE> ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::iterator_impl

template<class KEY, class VALUE, class KEY_GENERATOR>
typedef ACE_Map_Manager_Reverse_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, KEY, VALUE> ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::reverse_iterator_impl

Constructor & Destructor Documentation

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_INLINE ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::ACE_Map_Manager_Adapter ( ACE_Allocator *  alloc = 0  )

Initialize with the <ACE_DEFAULT_MAP_SIZE>.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_INLINE ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::ACE_Map_Manager_Adapter ( size_t  size,
ACE_Allocator *  alloc = 0
)

Initialize with <size> entries. The <size> parameter is ignored by maps for which an initialize size does not make sense.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::~ACE_Map_Manager_Adapter ( void   )  [virtual]

Close down and release dynamically allocated resources.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::ACE_Map_Manager_Adapter ( const ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR > &   )  [private]

Member Function Documentation

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::begin_impl ( void   )  [protected, virtual]

Return forward iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::bind ( const KEY &  key,
const VALUE &  value
) [virtual]

Add <key>/

pair to the map. If <key> is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. <key> is an "in" parameter.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::bind_create_key ( const VALUE &  value  )  [virtual]

Add

to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::bind_create_key ( const VALUE &  value,
KEY &  key
) [virtual]

Add

to the map, and the corresponding key produced by the Map is returned through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::bind_modify_key ( const VALUE &  value,
KEY &  key
) [virtual]

Add <key>/

pair to the map. <key> is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the <recover_key> method.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::close ( void   )  [virtual]

Close down a <Map> and release dynamically allocated resources.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::create_key ( KEY &  key  )  [virtual]

Produce a key and return it through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
size_t ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::current_size ( void   )  const [virtual]

Return the current size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
void ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::dump ( void   )  const [virtual]

Dump the state of an object.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::end_impl ( void   )  [protected, virtual]

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::find ( const KEY &  key  )  [virtual]

Is <key> in the map?

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::find ( const KEY &  key,
VALUE &  value
) [virtual]

Locate

associated with <key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_INLINE ACE_Map_Manager< KEY, VALUE, ACE_Null_Mutex > & ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::impl ( void   )

Accessor to implementation object.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_INLINE KEY_GENERATOR & ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::key_generator ( void   )

Accessor to key generator.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::open ( size_t  length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator *  alloc = 0
) [virtual]

Initialize a <Map> with size <length>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
void ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::operator= ( const ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR > &   )  [private]

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::rbegin_impl ( void   )  [protected, virtual]

Return reverse iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::rebind ( const KEY &  key,
const VALUE &  value,
KEY &  old_key,
VALUE &  old_value
) [virtual]

Reassociate <key> with

, storing the old key and value into the "out" parameters <old_key> and <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/

association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::rebind ( const KEY &  key,
const VALUE &  value,
VALUE &  old_value
) [virtual]

Reassociate <key> with

, storing the old value into the "out" parameter <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/

association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::rebind ( const KEY &  key,
const VALUE &  value
) [virtual]

Reassociate <key> with

. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/

association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::recover_key ( const KEY &  modified_key,
KEY &  original_key
) [virtual]

Recovers the original key potentially modified by the map during <bind_modify_key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::rend_impl ( void   )  [protected, virtual]

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
size_t ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::total_size ( void   )  const [virtual]

Return the total size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::trybind ( const KEY &  key,
VALUE &  value
) [virtual]

Associate <key> with

if and only if <key> is not in the map. If <key> is already in the map, then the

parameter is overwritten with the existing value in the map. Returns 0 if a new <key>/

association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::unbind ( const KEY &  key,
VALUE &  value
) [virtual]

Remove <key> from the map, and return the

associated with <key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_GENERATOR>
int ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::unbind ( const KEY &  key  )  [virtual]

Remove <key> from the map.

Implements ACE_Map< KEY, VALUE >.

Member Data Documentation

template<class KEY, class VALUE, class KEY_GENERATOR>
ACE_Map_Manager<KEY, VALUE, ACE_Null_Mutex> ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::implementation_ [protected]

All implementation details are forwarded to this class.

template<class KEY, class VALUE, class KEY_GENERATOR>
KEY_GENERATOR ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >::key_generator_ [protected]

Functor class used for generating key.

The documentation for this class was generated from the following files:
