TAO_SHMIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the SHMIOP protocol. More...

#include <SHMIOP_Transport.h>

Inheritance diagram for TAO_SHMIOP_Transport:

Inheritance graph
[legend]

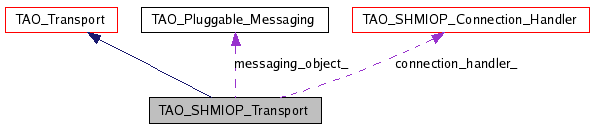

Collaboration diagram for TAO_SHMIOP_Transport:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_SHMIOP_Transport (TAO_SHMIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
 Constructor.
 ~TAO_SHMIOP_Transport (void)
 Default destructor.
virtual int send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int messaging_init (CORBA::Octet major, CORBA::Octet minor)
 Initialising the messaging object.

Protected Member Functions

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.

virtual ACE_Event_Handlerevent_handler_i (void)
virtual TAO_Connection_Handlerconnection_handler_i (void)
virtual TAO_Pluggable_Messagingmessaging_object (void)
virtual ssize_t send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
 Write the complete Message_Block chain to the connection.
virtual ssize_t recv (char *buf, size_t len, const ACE_Time_Value *s=0)
 Read len bytes from into buf.
virtual int handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time, int block=0)

Private Attributes

TAO_SHMIOP_Connection_Handlerconnection_handler_
TAO_Pluggable_Messagingmessaging_object_
 Our messaging object.

Detailed Description

Specialization of the base TAO_Transport class to handle the SHMIOP protocol.


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_SHMIOP_Transport::TAO_SHMIOP_Transport ( TAO_SHMIOP_Connection_Handler handler,
TAO_ORB_Core orb_core,
CORBA::Boolean  flag
)

Constructor.

TAO_SHMIOP_Transport::~TAO_SHMIOP_Transport ( void   )

Default destructor.


Member Function Documentation

TAO_Connection_Handler * TAO_SHMIOP_Transport::connection_handler_i ( void   )  [protected, virtual]

Implements TAO_Transport.

ACE_Event_Handler * TAO_SHMIOP_Transport::event_handler_i ( void   )  [protected, virtual]

Implements TAO_Transport.

int TAO_SHMIOP_Transport::handle_input ( TAO_Resume_Handle rh,
ACE_Time_Value max_wait_time,
int  block = 0
) [protected, virtual]

Reimplemented from TAO_Transport.

int TAO_SHMIOP_Transport::messaging_init ( CORBA::Octet  major,
CORBA::Octet  minor
) [virtual]

Initialising the messaging object.

Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_SHMIOP_Transport::messaging_object ( void   )  [protected, virtual]

Implements TAO_Transport.

ssize_t TAO_SHMIOP_Transport::recv ( char *  buf,
size_t  len,
const ACE_Time_Value s = 0
) [protected, virtual]

Read len bytes from into buf.

Implements TAO_Transport.

ssize_t TAO_SHMIOP_Transport::send ( iovec iov,
int  iovcnt,
size_t &  bytes_transferred,
const ACE_Time_Value timeout = 0
) [protected, virtual]

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_SHMIOP_Transport::send_message ( TAO_OutputCDR stream,
TAO_Stub stub = 0,
int  message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST,
ACE_Time_Value max_time_wait = 0
) [virtual]

Implements TAO_Transport.

int TAO_SHMIOP_Transport::send_request ( TAO_Stub stub,
TAO_ORB_Core orb_core,
TAO_OutputCDR stream,
int  message_semantics,
ACE_Time_Value max_wait_time
) [virtual]

Todo:
These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.


Member Data Documentation

TAO_SHMIOP_Connection_Handler* TAO_SHMIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_SHMIOP_Transport::messaging_object_ [private]

Our messaging object.


The documentation for this class was generated from the following files:
Generated on Fri Oct 6 16:07:31 2006 for TAO_Strategies by  doxygen 1.4.7-1
