CIAO::Execution_Manager::Execution_Manager_Impl Class Reference

This class implements the ExecutionManger. ExecutionManager starts the execution process after the planning stage. More...

#include <Execution_Manager_Impl.h>

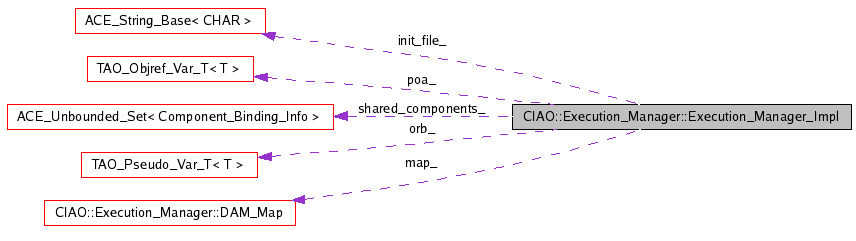

Collaboration diagram for CIAO::Execution_Manager::Execution_Manager_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Execution_Manager_Impl (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, const char *init_file)
 Constructor.
virtual Deployment::DomainApplicationManager_ptr preparePlan (const Deployment::DeploymentPlan &plan, CORBA::Boolean commitResources ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::PlanError, Deployment::StartError)
virtual Deployment::DomainApplicationManagers * getManagers (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
virtual Deployment::DomainApplicationManager_ptr getManager (const char *plan_uuid ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Deployment::PlanNotExist)
virtual void destroyManager (Deployment::DomainApplicationManager_ptr manager ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Deployment::StopError)
virtual void destroyManagerByPlan (const char *plan_uuid ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (::CORBA::SystemException, ::Deployment::StopError)
virtual void shutdown (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void perform_redeployment (const Deployment::DeploymentPlan &plan ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (::CORBA::SystemException, ::Deployment::PlanError, ::Deployment::InstallationFailure, ::Deployment::UnknownImplId, ::Deployment::ImplEntryPointNotFound, ::Deployment::InvalidConnection, ::Deployment::InvalidProperty, ::Components::RemoveFailure)
virtual Deployment::DeploymentPlan * getPlan (const char *plan_uuid ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (::CORBA::SystemException)
virtual void finalize_global_binding (const Component_Binding_Info &binding, CORBA::Boolean add_connection) throw ( ::CORBA::SystemException, ::Deployment::InvalidConnection)
 ****************** C++ Methods *************************
virtual void passivate_shared_components (const Component_Binding_Info &binding) throw (CORBA::SystemException, Deployment::StartError)
virtual void activate_shared_components (const Component_Binding_Info &binding) throw (CORBA::SystemException, Deployment::StartError)
virtual void add_shared_component (const Component_Binding_Info &binding)
virtual void remove_shared_component (const Component_Binding_Info &binding)
 Remove shared component.
virtual bool is_component_running (const char *name, const char *plan_uuid)

Protected Member Functions

virtual Deployment::NodeApplication_ptr find_node_application (const Component_Binding_Info &binding) throw ( ::CORBA::SystemException, ::Deployment::InvalidConnection)
 Return the NodeApplication hosting the given biding.
virtual ~Execution_Manager_Impl (void)
 Destructor.

Protected Attributes

CORBA::ORB_var orb_
 Cached ORB pointer.
PortableServer::POA_var poa_
 Cached POA pointer.
const ACE_CString init_file_
 Path to the initialization file.
DAM_Map map_
 A map which caches the DomainApplicationManager object ref.
ACE_Unbounded_Set< Component_Binding_Info > shared_components_
 A set of shared components and their location info.

Detailed Description

This class implements the ExecutionManger. ExecutionManager starts the execution process after the planning stage.


Constructor & Destructor Documentation

CIAO::Execution_Manager::Execution_Manager_Impl::Execution_Manager_Impl ( CORBA::ORB_ptr  orb,
PortableServer::POA_ptr  poa,
const char *  init_file
)

Constructor.

CIAO::Execution_Manager::Execution_Manager_Impl::~Execution_Manager_Impl ( void   )  [protected, virtual]

Destructor.


Member Function Documentation

void CIAO::Execution_Manager::Execution_Manager_Impl::activate_shared_components ( const Component_Binding_Info &  binding  )  throw (CORBA::SystemException, Deployment::StartError) [virtual]

void CIAO::Execution_Manager::Execution_Manager_Impl::add_shared_component ( const Component_Binding_Info &  binding  )  [virtual]

Add shared component information. This call will be made by DomainApplicationManager.

void CIAO::Execution_Manager::Execution_Manager_Impl::destroyManager ( Deployment::DomainApplicationManager_ptr manager  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, Deployment::StopError) [virtual]

void CIAO::Execution_Manager::Execution_Manager_Impl::destroyManagerByPlan ( const char *plan_uuid  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (::CORBA::SystemException, ::Deployment::StopError) [virtual]

void CIAO::Execution_Manager::Execution_Manager_Impl::finalize_global_binding ( const Component_Binding_Info &  binding,
CORBA::Boolean  add_connection
) throw ( ::CORBA::SystemException, ::Deployment::InvalidConnection) [virtual]

****************** C++ Methods *************************

If input <add_connection> is true, then it will add new connections which are across different assemblies. Otherwise it will remove the specified connections of this component.

@GD: Later we can add another method which could accept a list of bindings and do the batch job.

Deployment::NodeApplication_ptr CIAO::Execution_Manager::Execution_Manager_Impl::find_node_application ( const Component_Binding_Info &  binding  )  throw ( ::CORBA::SystemException, ::Deployment::InvalidConnection) [protected, virtual]

Return the NodeApplication hosting the given biding.

Deployment::DomainApplicationManager_ptr CIAO::Execution_Manager::Execution_Manager_Impl::getManager ( const char *plan_uuid  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, Deployment::PlanNotExist) [virtual]

Deployment::DomainApplicationManagers * CIAO::Execution_Manager::Execution_Manager_Impl::getManagers ( ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException) [virtual]

Deployment::DeploymentPlan * CIAO::Execution_Manager::Execution_Manager_Impl::getPlan ( const char *plan_uuid  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (::CORBA::SystemException) [virtual]

bool CIAO::Execution_Manager::Execution_Manager_Impl::is_component_running ( const char *  name,
const char *  plan_uuid
) [virtual]

If the input component <name> was found in the internal cached shared component list, and the plan_uuid also matches, then this member function returns <true>, otherwise it returns <false>.

void CIAO::Execution_Manager::Execution_Manager_Impl::passivate_shared_components ( const Component_Binding_Info &  binding  )  throw (CORBA::SystemException, Deployment::StartError) [virtual]

void CIAO::Execution_Manager::Execution_Manager_Impl::perform_redeployment ( const Deployment::DeploymentPlan &plan  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (::CORBA::SystemException, ::Deployment::PlanError, ::Deployment::InstallationFailure, ::Deployment::UnknownImplId, ::Deployment::ImplEntryPointNotFound, ::Deployment::InvalidConnection, ::Deployment::InvalidProperty, ::Components::RemoveFailure) [virtual]

virtual Deployment::DomainApplicationManager_ptr CIAO::Execution_Manager::Execution_Manager_Impl::preparePlan ( const Deployment::DeploymentPlan &  plan,
CORBA::Boolean commitResources  ACE_ENV_ARG_DECL_WITH_DEFAULTS
) throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::PlanError, Deployment::StartError) [virtual]

Template methods from ExecutionManagerDaemon, please see $CIAO_ROOT/ciao/Deployment.idl for documentation

void CIAO::Execution_Manager::Execution_Manager_Impl::remove_shared_component ( const Component_Binding_Info &  binding  )  [virtual]

Remove shared component.

virtual void CIAO::Execution_Manager::Execution_Manager_Impl::shutdown ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]


Member Data Documentation

const ACE_CString CIAO::Execution_Manager::Execution_Manager_Impl::init_file_ [protected]

Path to the initialization file.

DAM_Map CIAO::Execution_Manager::Execution_Manager_Impl::map_ [protected]

A map which caches the DomainApplicationManager object ref.

CORBA::ORB_var CIAO::Execution_Manager::Execution_Manager_Impl::orb_ [protected]

Cached ORB pointer.

PortableServer::POA_var CIAO::Execution_Manager::Execution_Manager_Impl::poa_ [protected]

Cached POA pointer.

ACE_Unbounded_Set<Component_Binding_Info> CIAO::Execution_Manager::Execution_Manager_Impl::shared_components_ [protected]

A set of shared components and their location info.


The documentation for this class was generated from the following files:
