AVStreams::StreamEndPoint Interface Reference

import "AVStreams.idl";

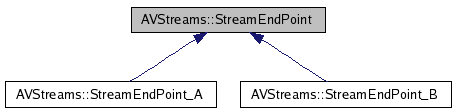

Inheritance diagram for AVStreams::StreamEndPoint:

Inheritance graph
[legend]
List of all members.

Public Member Functions

void stop (in flowSpec the_spec) raises (noSuchFlow)
 Stop the stream. Empty the_spec means, for all the flows.
void start (in flowSpec the_spec) raises (noSuchFlow)
 Start the stream, Empty the_spec means, for all the flows.
void destroy (in flowSpec the_spec) raises (noSuchFlow)
 Destroy the stream, Empty the_spec means, for all the flows.
boolean connect (in StreamEndPoint responder, inout streamQoS qos_spec, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)
 Called by StreamCtrl. responder is the peer to connect with.
boolean request_connection (in StreamEndPoint initiator, in boolean is_mcast, inout streamQoS qos, inout flowSpec the_spec) raises (streamOpDenied, noSuchFlow, QoSRequestFailed, FPError)
boolean modify_QoS (inout streamQoS new_qos, in flowSpec the_flows) raises (noSuchFlow, QoSRequestFailed)
 Change the transport qos on a stream.
boolean set_protocol_restriction (in protocolSpec the_pspec)
 Used to restrict the set of protocols.
void disconnect (in flowSpec the_spec) raises (noSuchFlow, streamOpFailed)
 Disconnect the flows.
void set_FPStatus (in flowSpec the_spec, in string fp_name, in any fp_settings) raises (noSuchFlow, FPError)
 Used to control the SFP parameters.
Object get_fep (in string flow_name) raises (notSupported, noSuchFlow)
 Not implemented in the light profile, throws notsupported.
string add_fep (in Object the_fep) raises (notSupported, streamOpFailed)
 Can fail for reasons {duplicateFepName, duplicateRef}.
void remove_fep (in string fep_name) raises (notSupported, streamOpFailed)
 Not implemented in the light profile, throws notsupported.
void set_negotiator (in Negotiator new_negotiator)
 Used to "attach" a negotiator to the endpoint.
void set_key (in string flow_name, in key the_key)
 Used for public key encryption.
void set_source_id (in long source_id)

Member Function Documentation

string AVStreams::StreamEndPoint::add_fep ( in Object  the_fep  )  raises (notSupported, streamOpFailed)

Can fail for reasons {duplicateFepName, duplicateRef}.

boolean AVStreams::StreamEndPoint::connect ( in StreamEndPoint  responder,
inout streamQoS  qos_spec,
in flowSpec  the_spec
) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)

Called by StreamCtrl. responder is the peer to connect with.

void AVStreams::StreamEndPoint::destroy ( in flowSpec  the_spec  )  raises (noSuchFlow)

Destroy the stream, Empty the_spec means, for all the flows.

void AVStreams::StreamEndPoint::disconnect ( in flowSpec  the_spec  )  raises (noSuchFlow, streamOpFailed)

Disconnect the flows.

Object AVStreams::StreamEndPoint::get_fep ( in string  flow_name  )  raises (notSupported, noSuchFlow)

Not implemented in the light profile, throws notsupported.

boolean AVStreams::StreamEndPoint::modify_QoS ( inout streamQoS  new_qos,
in flowSpec  the_flows
) raises (noSuchFlow, QoSRequestFailed)

Change the transport qos on a stream.

void AVStreams::StreamEndPoint::remove_fep ( in string  fep_name  )  raises (notSupported, streamOpFailed)

Not implemented in the light profile, throws notsupported.

boolean AVStreams::StreamEndPoint::request_connection ( in StreamEndPoint  initiator,
in boolean  is_mcast,
inout streamQoS  qos,
inout flowSpec  the_spec
) raises (streamOpDenied, noSuchFlow, QoSRequestFailed, FPError)

Called by the peer StreamEndPoint. The flow_spec indicates the flows (which contain transport addresses etc.).

void AVStreams::StreamEndPoint::set_FPStatus ( in flowSpec  the_spec,
in string  fp_name,
in any  fp_settings
) raises (noSuchFlow, FPError)

Used to control the SFP parameters.

void AVStreams::StreamEndPoint::set_key ( in string  flow_name,
in key  the_key
)

Used for public key encryption.

void AVStreams::StreamEndPoint::set_negotiator ( in Negotiator  new_negotiator  )

Used to "attach" a negotiator to the endpoint.

boolean AVStreams::StreamEndPoint::set_protocol_restriction ( in protocolSpec  the_pspec  )

Used to restrict the set of protocols.

void AVStreams::StreamEndPoint::set_source_id ( in long  source_id  )

Used to set a unique id for packets sent by this streamendpoint.

void AVStreams::StreamEndPoint::start ( in flowSpec  the_spec  )  raises (noSuchFlow)

Start the stream, Empty the_spec means, for all the flows.

void AVStreams::StreamEndPoint::stop ( in flowSpec  the_spec  )  raises (noSuchFlow)

Stop the stream. Empty the_spec means, for all the flows.


The documentation for this interface was generated from the following file:
