ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > Class Template Reference

Defines a abstraction that will purge entries from a map. More...

#include <Cache_Map_Manager_T.h>

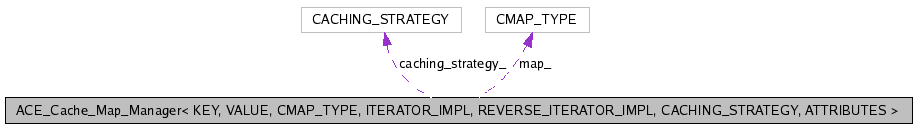

Collaboration diagram for ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef KEY key_type
typedef VALUE mapped_type
typedef CMAP_TYPE map_type
typedef CACHING_STRATEGY caching_strategy_type
typedef ITERATOR_IMPL ITERATOR_IMPLEMENTATION
typedef REVERSE_ITERATOR_IMPL REVERSE_ITERATOR_IMPLEMENTATION
typedef ACE_Cache_Map_Iterator<
KEY, VALUE, ITERATOR_IMPLEMENTATION,
CACHING_STRATEGY, ATTRIBUTES >
ITERATOR
typedef ACE_Cache_Map_Reverse_Iterator<
KEY, VALUE, REVERSE_ITERATOR_IMPLEMENTATION,
CACHING_STRATEGY, ATTRIBUTES >
REVERSE_ITERATOR
typedef ITERATOR iterator
typedef REVERSE_ITERATOR reverse_iterator
typedef ACE_Pair< VALUE, ATTRIBUTES > CACHE_VALUE

Public Member Functions

 ACE_Cache_Map_Manager (CACHING_STRATEGY &caching_strategy, size_t size=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
virtual ~ACE_Cache_Map_Manager (void)
int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
 Initialize a cache with size <length>.
int close (void)
 Close down a cache and release dynamically allocated resources.
int bind (const KEY &key, const VALUE &value)
int find (const KEY &key, VALUE &value)
int find (const KEY &key)
int rebind (const KEY &key, const VALUE &value)
int rebind (const KEY &key, const VALUE &value, VALUE &old_value)
int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)
int trybind (const KEY &key, VALUE &value)
int unbind (const KEY &key)
 Remove <key> from the cache.
int unbind (const KEY &key, VALUE &value)
int purge (void)
 Remove entries from the cache depending upon the strategy.
size_t current_size (void) const
 Return the current size of the cache.
size_t total_size (void) const
 Return the total size of the cache.
void dump (void) const
 Dumps the state of the object.
ITERATOR begin (void)
 Return forward iterator.
ITERATOR end (void)
REVERSE_ITERATOR rbegin (void)
 Return reverse iterator.
REVERSE_ITERATOR rend (void)
CMAP_TYPE & map (void)
 The map managed by the Cache_Map_Manager.
CACHING_STRATEGY & caching_strategy (void)
 The caching strategy used on the cache.

Protected Attributes

CMAP_TYPE map_
 The underlying map which needs to be cached.
CACHING_STRATEGY & caching_strategy_
 The strategy to be followed for caching entries in the map.

Private Member Functions

void operator= (const ACMM< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > &)
 ACMM (const ACMM< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > &)

Friends

class ACE_Cache_Map_Iterator< KEY, VALUE, ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES >
class ACE_Cache_Map_Reverse_Iterator< KEY, VALUE, REVERSE_ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES >

Detailed Description

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
class ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >

Defines a abstraction that will purge entries from a map.

The <ACE_Cache_Map_Manager> will manage the map it contains and provide purging on demand from the map. The strategy for caching is decided by the user and provided to the Cache Manager. The Cache Manager acts as a agent and communicates between the Map and the Strategy for purging entries from the map. No locking mechanism provided since locking at this level isn't efficient. Locking has to be provided by the application.


Member Typedef Documentation

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef ACE_Pair<VALUE, ATTRIBUTES> ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::CACHE_VALUE

The actual value mapped to the key in the map. The <attributes> are used by the strategy and is transparent to the user of this class.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef CACHING_STRATEGY ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::caching_strategy_type

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef ITERATOR ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::iterator

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef ACE_Cache_Map_Iterator<KEY, VALUE, ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES> ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::ITERATOR

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef ITERATOR_IMPL ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::ITERATOR_IMPLEMENTATION

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef KEY ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::key_type

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef CMAP_TYPE ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::map_type

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef VALUE ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::mapped_type

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef REVERSE_ITERATOR ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::reverse_iterator

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef ACE_Cache_Map_Reverse_Iterator<KEY, VALUE, REVERSE_ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES> ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::REVERSE_ITERATOR

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
typedef REVERSE_ITERATOR_IMPL ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::REVERSE_ITERATOR_IMPLEMENTATION


Constructor & Destructor Documentation

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::ACE_Cache_Map_Manager ( CACHING_STRATEGY &  caching_strategy,
size_t  size = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator alloc = 0
)

Initialize a <Cache_Map_Manager> with <caching_strategy> and <size> entries.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::~ACE_Cache_Map_Manager ( void   )  [virtual]

Close down a <Cache_Map_Manager> and release dynamically allocated resources.


Member Function Documentation

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::ACMM ( const ACMM< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > &   )  [private]

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE ACE_Cache_Map_Iterator< KEY, VALUE, ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::begin ( void   )

Return forward iterator.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::bind ( const KEY &  key,
const VALUE &  value
)

Associate <key> with

. If <key> is already in the CMAP_TYPE then the ENTRY is not changed. Returns 0 if a new entry is bound successfully, returns 1 if an attempt is made to bind an existing entry, and returns -1 if failures occur.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE CACHING_STRATEGY & ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::caching_strategy ( void   )

The caching strategy used on the cache.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::close ( void   )

Close down a cache and release dynamically allocated resources.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE size_t ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::current_size ( void   )  const

Return the current size of the cache.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
void ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::dump ( void   )  const

Dumps the state of the object.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE ACE_Cache_Map_Iterator< KEY, VALUE, ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::end ( void   )

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::find ( const KEY &  key  )

Lookup entry<key,value> in the cache. If it is not found, returns -1. If the <key> is located in the CMAP_TYPE object, the CACHING_STRATEGY is notified of it via notify_find (int result, ATTRIBUTES &attribute). If notify_find also returns 0 (success), then this function returns 0 (success).

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::find ( const KEY &  key,
VALUE &  value
)

Lookup entry<key,value> in the cache. If it is not found, returns -1. If the <key> is located in the CMAP_TYPE object, the CACHING_STRATEGY is notified of it via notify_find (int result, ATTRIBUTES &attribute). If notify_find also returns 0 (success), then this function returns 0 (success) and sets the cached value in

.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE CMAP_TYPE & ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::map ( void   )

The map managed by the Cache_Map_Manager.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::open ( size_t  length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator alloc = 0
)

Initialize a cache with size <length>.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
void ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::operator= ( const ACMM< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > &   )  [private]

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::purge ( void   )

Remove entries from the cache depending upon the strategy.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE ACE_Cache_Map_Reverse_Iterator< KEY, VALUE, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::rbegin ( void   )

Return reverse iterator.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::rebind ( const KEY &  key,
const VALUE &  value,
KEY &  old_key,
VALUE &  old_value
)

Reassociate <key> with

, storing the old key and value into the "out" parameters <old_key> and <old_value>. The function fails if <key> is not in the cache for caches that do not allow user specified keys. However, for caches that allow user specified keys, if the key is not in the cache, a new <key>/

association is created.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::rebind ( const KEY &  key,
const VALUE &  value,
VALUE &  old_value
)

Reassociate <key> with

, storing the old value into the "out" parameter <old_value>. The function fails if <key> is not in the cache for caches that do not allow user specified keys. However, for caches that allow user specified keys, if the key is not in the cache, a new <key>/

association is created.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::rebind ( const KEY &  key,
const VALUE &  value
)

Reassociate the <key> with

. If the <key> already exists in the cache then returns 1, on a new bind returns 0 and returns -1 in case of any failures.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE ACE_Cache_Map_Reverse_Iterator< KEY, VALUE, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES > ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::rend ( void   )

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
ACE_INLINE size_t ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::total_size ( void   )  const

Return the total size of the cache.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::trybind ( const KEY &  key,
VALUE &  value
)

Associate <key> with

if and only if <key> is not in the cache. If <key> is already in the cache, then the

parameter is overwritten with the existing value in the cache. Returns 0 if a new <key>/

association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::unbind ( const KEY &  key,
VALUE &  value
)

Remove <key> from the cache, and return the

associated with <key>.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
int ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::unbind ( const KEY &  key  )

Remove <key> from the cache.


Friends And Related Function Documentation

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
friend class ACE_Cache_Map_Iterator< KEY, VALUE, ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES > [friend]

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
friend class ACE_Cache_Map_Reverse_Iterator< KEY, VALUE, REVERSE_ITERATOR_IMPLEMENTATION, CACHING_STRATEGY, ATTRIBUTES > [friend]


Member Data Documentation

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
CACHING_STRATEGY& ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::caching_strategy_ [protected]

The strategy to be followed for caching entries in the map.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>
CMAP_TYPE ACE_Cache_Map_Manager< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::map_ [protected]

The underlying map which needs to be cached.


The documentation for this class was generated from the following files:
