orbconf.h File Reference

#include "ace/Basic_Types.h"
#include "ace/Global_Macros.h"
#include "ace/Synch_Traits.h"
#include "tao/Versioned_Namespace.h"

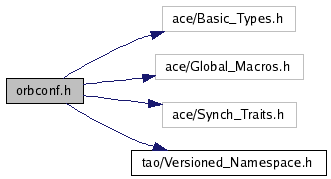

Include dependency graph for orbconf.h:

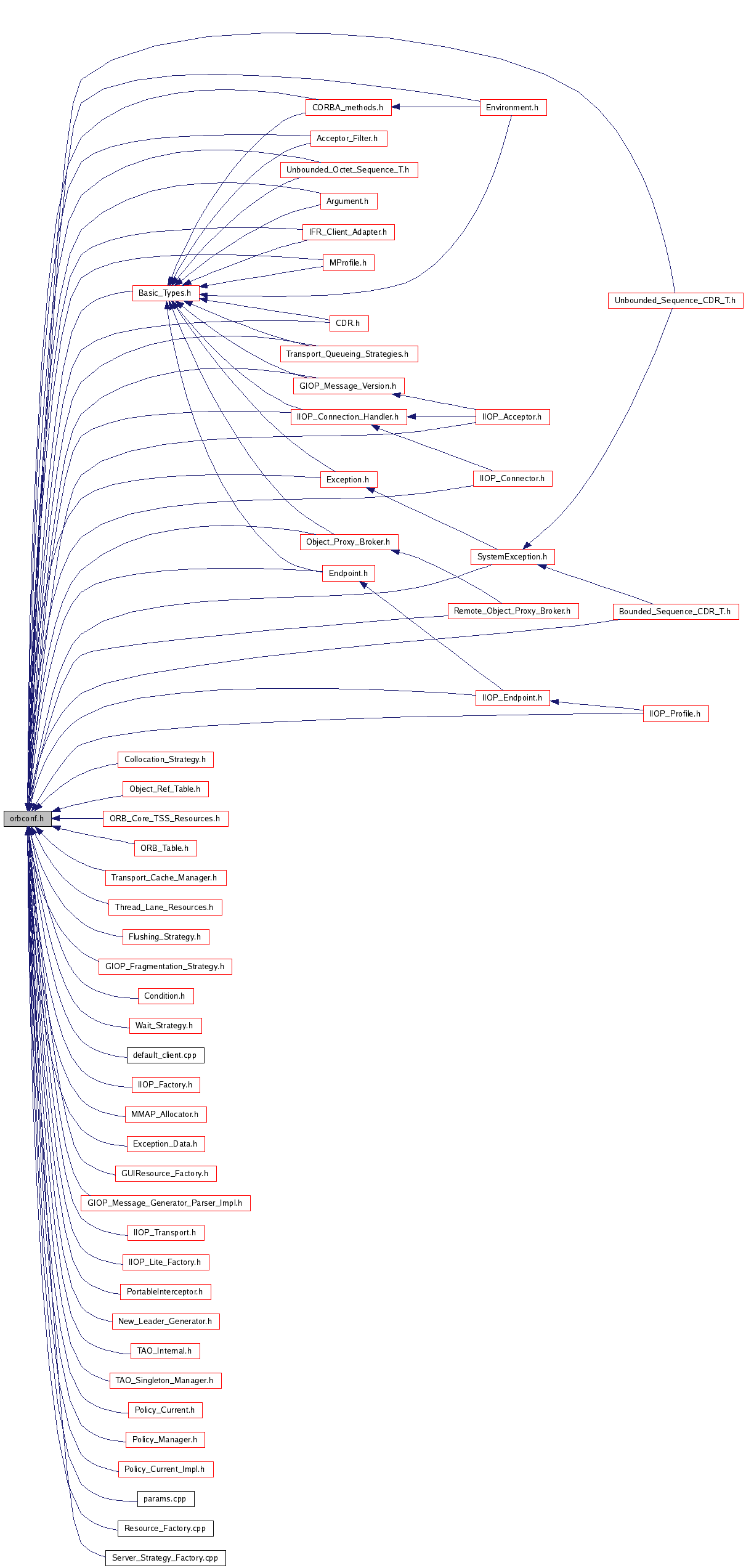

This graph shows which files directly or indirectly include this file:


Defines
#define	TAO_INVALID_PRIORITY -1
#define	TAO_REACTOR ACE_Select_Reactor
#define	TAO_NULL_LOCK_REACTOR ACE_Select_Reactor_T< ACE_Reactor_Token_T<ACE_Noop_Token> >
#define	TAO_SYNCH_MUTEX ACE_SYNCH_MUTEX
#define	TAO_SYNCH_RECURSIVE_MUTEX ACE_SYNCH_RECURSIVE_MUTEX
#define	TAO_SYNCH_RW_MUTEX ACE_SYNCH_RW_MUTEX
#define	TAO_SYNCH_CONDITION ACE_SYNCH_CONDITION
#define	POA_NO_TIMESTAMP 0
#define	TAO_USE_DOTTED_DECIMAL_ADDRESSES 1
#define	TAO_NEGOTIATE_CODESETS 1
#define	TAO_DEFAULT_SERVER_ACTIVE_OBJECT_MAP_SIZE 64
#define	TAO_DEFAULT_SERVER_POA_MAP_SIZE 24
#define	TAO_DEFAULT_SERVICE_RESOLUTION_TIMEOUT 10
#define	TAO_DEFAULT_SERVER_PORT 0
#define	TAO_MAXBUFSIZE 1024
#define	TAO_CONNECTION_PURGING_STRATEGY TAO_Resource_Factory::LRU
#define	TAO_PURGE_PERCENT 20
#define	TAO_CONNECTION_CACHE_MAXIMUM (ACE::max_handles () / 2)
#define	TAO_NAMESPACE_STORAGE_CLASS extern TAO_EXPORT_MACRO
#define	TAO_NAMESPACE_INLINE_FUNCTION TAO_NAMESPACE_STORAGE_CLASS
#define	TAO_NO_COPY_OCTET_SEQUENCES 1
#define	TAO_HAS_EXCEPTIONS
#define	TAO_USE_EXCEPTIONS
#define	TAO_ENCAP_BYTE_ORDER 0
#define	RETSIGTYPE void
#define	HAVE_VPRINTF 1
#define	TAO_EXPORT_NESTED_MACRO
#define	TAO_DEFAULT_ROOTPOA_NAME "RootPOA"
#define	TAO_DEFAULT_ROOTPOAMANAGER_NAME "RootPOAManager"
#define	TAO_DEFAULT_LANE "default lane"
#define	TAO_HAS_IIOP 1
	Default IIOP settings.
#define	TAO_HAS_DIOP 1
	Default DIOP settings.
#define	TAO_HAS_UIOP 1
#define	TAO_HAS_SHMIOP 1
#define	TAO_HAS_NAMED_RT_MUTEXES 0
#define	TAO_HAS_MINIMUM_POA 0
#define	TAO_HAS_MINIMUM_POA_MAPS 0
#define	TAO_HAS_CORBA_MESSAGING 1
#define	TAO_DISABLE_CORBA_MESSAGING_POLICIES 0
#define	TAO_HAS_REBIND_POLICY 1
#define	TAO_HAS_SYNC_SCOPE_POLICY 1
#define	TAO_HAS_PRIORITY_POLICIES 1
#define	TAO_HAS_REQUEST_START_TIME_POLICY 1
#define	TAO_HAS_REQUEST_END_TIME_POLICY 1
#define	TAO_HAS_REPLY_START_TIME_POLICY 1
#define	TAO_HAS_REPLY_END_TIME_POLICY 1
#define	TAO_HAS_RELATIVE_REQUEST_TIMEOUT_POLICY 1
#define	TAO_HAS_RELATIVE_ROUNDTRIP_TIMEOUT_POLICY 1
#define	TAO_HAS_CONNECTION_TIMEOUT_POLICY 1
#define	TAO_HAS_ROUTING_POLICY 1
#define	TAO_HAS_MAX_HOPS_POLICY 1
#define	TAO_HAS_QUEUE_ORDER_POLICY 1
#define	TAO_HAS_BUFFERING_CONSTRAINT_POLICY 1
#define	TAO_HAS_AMI_CALLBACK 1
#define	TAO_HAS_EXTENDED_FT_INTERCEPTORS 0
#define	TAO_RT_SERVER_PROTOCOL_POLICY_TYPE 42
#define	TAO_POLICY_DEFAULT_SCOPE
#define	TAO_DEF_GIOP_MAJOR 1
#define	TAO_DEF_GIOP_MINOR 2
#define	TAO_MIN_IPV6_IIOP_MAJOR 1
#define	TAO_MIN_IPV6_IIOP_MINOR 2
#define	TAO_CONNECTION_HANDLER_STACK_BUF_SIZE 1024
#define	TAO_STD_PROFILE_COMPONENTS
#define	TAO_DEFAULT_IOR_SIZE 1024
#define	TAO_DEFAULT_THREAD_PER_CONNECTION_TIMEOUT "5000"
#define	TAO_USE_MUXED_TRANSPORT_MUX_STRATEGY 1
	By default we use Muxed Transports.
#define	TAO_DEFAULT_INIT_REFERENCE_INITIALIZER "mcast://:::"
	By default we use multicast lookup.
#define	TAO_USE_LAZY_RESOURCE_USAGE_STRATEGY 0
	By default we dont use lazy strategy.
#define	TAO_USE_LOCAL_MEMORY_POOL 1
#define	TAO_USE_OUTPUT_CDR_MMAP_MEMORY_POOL 0
Enumerations
enum	TAO_Cached_Policy_Type { TAO_CACHED_POLICY_UNCACHED = -1, TAO_CACHED_POLICY_PRIORITY_MODEL = 0, TAO_CACHED_POLICY_THREADPOOL, TAO_CACHED_POLICY_RT_SERVER_PROTOCOL, TAO_CACHED_POLICY_RT_CLIENT_PROTOCOL, TAO_CACHED_POLICY_RT_PRIVATE_CONNECTION, TAO_CACHED_POLICY_RT_PRIORITY_BANDED_CONNECTION, TAO_CACHED_POLICY_LIFESPAN, TAO_CACHED_POLICY_ID_UNIQUENESS, TAO_CACHED_POLICY_ID_ASSIGNMENT, TAO_CACHED_POLICY_THREAD, TAO_CACHED_POLICY_IMPLICIT_ACTIVATION, TAO_CACHED_POLICY_SERVANT_RETENTION, TAO_CACHED_POLICY_REQUEST_PROCESSING, TAO_CACHED_POLICY_SYNC_SCOPE, TAO_CACHED_POLICY_RELATIVE_ROUNDTRIP_TIMEOUT, TAO_CACHED_POLICY_BUFFERING_CONSTRAINT, TAO_CACHED_POLICY_CONNECTION_TIMEOUT, TAO_CACHED_POLICY_BIDIRECTIONAL_GIOP, TAO_CACHED_POLICY_MAX_CACHED, TAO_CACHED_POLICY_ENDPOINT }
enum	TAO_Policy_Scope { TAO_POLICY_OBJECT_SCOPE = 0x01, TAO_POLICY_THREAD_SCOPE = 0x02, TAO_POLICY_ORB_SCOPE = 0x04, TAO_POLICY_POA_SCOPE = 0x08, TAO_POLICY_CLIENT_EXPOSED = 0x10 }
Variables
const size_t	TAO_DEFAULT_ORB_TABLE_SIZE = 16
const size_t	TAO_RD_TABLE_SIZE = 16
const size_t	TAO_DEFAULT_POLICY_FACTORY_REGISTRY_SIZE = 64
const size_t	TAO_DEFAULT_OBJECT_REF_TABLE_SIZE = 256
const size_t	TAO_DEFAULT_VALUE_FACTORY_TABLE_SIZE = 128

Detailed Description

Id: orbconf.h,v 1.253 2006/06/20 06:05:55 jwillemsen Exp

Build configuration file.

Author:

Chris Cleeland

Douglas C. Schmidt

Define Documentation

#define HAVE_VPRINTF 1

#define POA_NO_TIMESTAMP 0

#define RETSIGTYPE void

#define TAO_CONNECTION_CACHE_MAXIMUM (ACE::max_handles () / 2)

#define TAO_CONNECTION_HANDLER_STACK_BUF_SIZE 1024

#define TAO_CONNECTION_PURGING_STRATEGY TAO_Resource_Factory::LRU

#define TAO_DEF_GIOP_MAJOR 1

#define TAO_DEF_GIOP_MINOR 2

#define TAO_DEFAULT_INIT_REFERENCE_INITIALIZER "mcast://:::"

By default we use multicast lookup.

#define TAO_DEFAULT_IOR_SIZE 1024

#define TAO_DEFAULT_LANE "default lane"

#define TAO_DEFAULT_ROOTPOA_NAME "RootPOA"

#define TAO_DEFAULT_ROOTPOAMANAGER_NAME "RootPOAManager"

#define TAO_DEFAULT_SERVER_ACTIVE_OBJECT_MAP_SIZE 64

#define TAO_DEFAULT_SERVER_POA_MAP_SIZE 24

#define TAO_DEFAULT_SERVER_PORT 0

#define TAO_DEFAULT_SERVICE_RESOLUTION_TIMEOUT 10

#define TAO_DEFAULT_THREAD_PER_CONNECTION_TIMEOUT "5000"

#define TAO_DISABLE_CORBA_MESSAGING_POLICIES 0

#define TAO_ENCAP_BYTE_ORDER 0

#define TAO_EXPORT_NESTED_MACRO

#define TAO_HAS_AMI_CALLBACK 1

#define TAO_HAS_BUFFERING_CONSTRAINT_POLICY 1

#define TAO_HAS_CONNECTION_TIMEOUT_POLICY 1

#define TAO_HAS_CORBA_MESSAGING 1

#define TAO_HAS_DIOP 1

Default DIOP settings.

#define TAO_HAS_EXCEPTIONS

#define TAO_HAS_EXTENDED_FT_INTERCEPTORS 0

#define TAO_HAS_IIOP 1

Default IIOP settings.

#define TAO_HAS_MAX_HOPS_POLICY 1

#define TAO_HAS_MINIMUM_POA 0

#define TAO_HAS_MINIMUM_POA_MAPS 0

#define TAO_HAS_NAMED_RT_MUTEXES 0

#define TAO_HAS_PRIORITY_POLICIES 1

#define TAO_HAS_QUEUE_ORDER_POLICY 1

#define TAO_HAS_REBIND_POLICY 1

#define TAO_HAS_RELATIVE_REQUEST_TIMEOUT_POLICY 1

#define TAO_HAS_RELATIVE_ROUNDTRIP_TIMEOUT_POLICY 1

#define TAO_HAS_REPLY_END_TIME_POLICY 1

#define TAO_HAS_REPLY_START_TIME_POLICY 1

#define TAO_HAS_REQUEST_END_TIME_POLICY 1

#define TAO_HAS_REQUEST_START_TIME_POLICY 1

#define TAO_HAS_ROUTING_POLICY 1

#define TAO_HAS_SHMIOP 1

#define TAO_HAS_SYNC_SCOPE_POLICY 1

#define TAO_HAS_UIOP 1

Default SCIOP Settings SCIOP is disabled by default (i.e. TAO_HAS_SCIOP is undef) to enable SCIOP, make with sctp=openss7 option on command line. See $ACE_ROOT/performance-tests/SCTP/README for more info.

#define TAO_INVALID_PRIORITY -1

#define TAO_MAXBUFSIZE 1024

#define TAO_MIN_IPV6_IIOP_MAJOR 1

#define TAO_MIN_IPV6_IIOP_MINOR 2

#define TAO_NAMESPACE_INLINE_FUNCTION TAO_NAMESPACE_STORAGE_CLASS

#define TAO_NAMESPACE_STORAGE_CLASS extern TAO_EXPORT_MACRO

#define TAO_NEGOTIATE_CODESETS 1

#define TAO_NO_COPY_OCTET_SEQUENCES 1

#define TAO_NULL_LOCK_REACTOR ACE_Select_Reactor_T< ACE_Reactor_Token_T<ACE_Noop_Token> >

#define TAO_POLICY_DEFAULT_SCOPE

Value:

(static_cast<TAO_Policy_Scope> ( \
                   TAO_POLICY_OBJECT_SCOPE | \
                   TAO_POLICY_THREAD_SCOPE | \
                   TAO_POLICY_ORB_SCOPE | \
                   TAO_POLICY_POA_SCOPE))

#define TAO_PURGE_PERCENT 20

#define TAO_REACTOR ACE_Select_Reactor

#define TAO_RT_SERVER_PROTOCOL_POLICY_TYPE 42

#define TAO_STD_PROFILE_COMPONENTS

#define TAO_SYNCH_CONDITION ACE_SYNCH_CONDITION

#define TAO_SYNCH_MUTEX ACE_SYNCH_MUTEX

#define TAO_SYNCH_RECURSIVE_MUTEX ACE_SYNCH_RECURSIVE_MUTEX

#define TAO_SYNCH_RW_MUTEX ACE_SYNCH_RW_MUTEX

#define TAO_USE_DOTTED_DECIMAL_ADDRESSES 1

#define TAO_USE_EXCEPTIONS

#define TAO_USE_LAZY_RESOURCE_USAGE_STRATEGY 0

By default we dont use lazy strategy.

#define TAO_USE_LOCAL_MEMORY_POOL 1

#define TAO_USE_MUXED_TRANSPORT_MUX_STRATEGY 1

By default we use Muxed Transports.

#define TAO_USE_OUTPUT_CDR_MMAP_MEMORY_POOL 0

Enumeration Type Documentation

enum TAO_Cached_Policy_Type

Policies that are accessed on the critical path and need to be incur minimal retrieval overhead.

Enumerator:

TAO_CACHED_POLICY_UNCACHED
TAO_CACHED_POLICY_PRIORITY_MODEL
TAO_CACHED_POLICY_THREADPOOL
TAO_CACHED_POLICY_RT_SERVER_PROTOCOL
TAO_CACHED_POLICY_RT_CLIENT_PROTOCOL
TAO_CACHED_POLICY_RT_PRIVATE_CONNECTION
TAO_CACHED_POLICY_RT_PRIORITY_BANDED_CONNECTION
TAO_CACHED_POLICY_LIFESPAN
TAO_CACHED_POLICY_ID_UNIQUENESS
TAO_CACHED_POLICY_ID_ASSIGNMENT
TAO_CACHED_POLICY_THREAD
TAO_CACHED_POLICY_IMPLICIT_ACTIVATION
TAO_CACHED_POLICY_SERVANT_RETENTION
TAO_CACHED_POLICY_REQUEST_PROCESSING
TAO_CACHED_POLICY_SYNC_SCOPE
TAO_CACHED_POLICY_RELATIVE_ROUNDTRIP_TIMEOUT
TAO_CACHED_POLICY_BUFFERING_CONSTRAINT
TAO_CACHED_POLICY_CONNECTION_TIMEOUT
TAO_CACHED_POLICY_BIDIRECTIONAL_GIOP
TAO_CACHED_POLICY_MAX_CACHED
TAO_CACHED_POLICY_ENDPOINT
